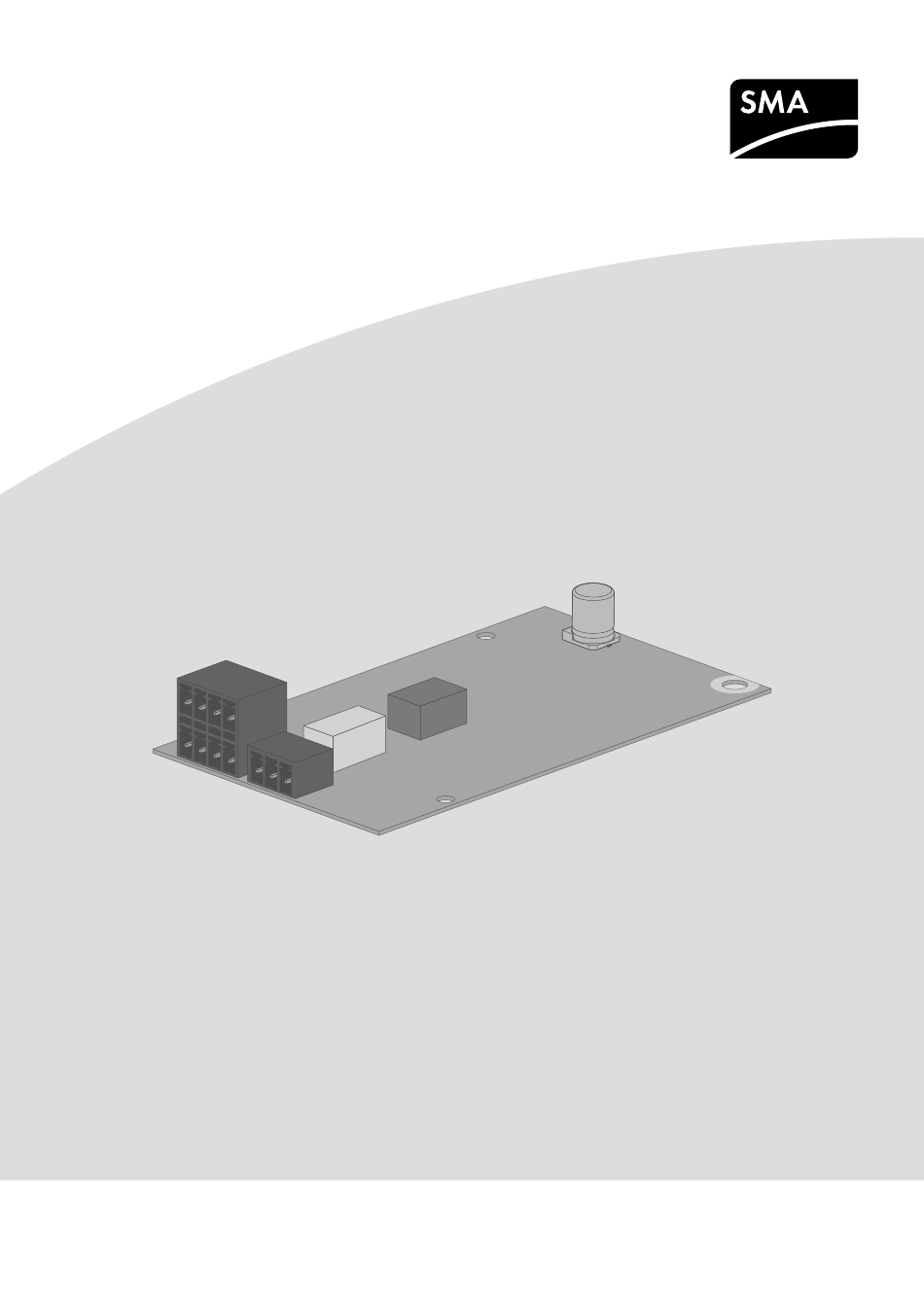

- Page 1 Installation manual SMA I/O MODULE MD.IO-40 (PC-PWC.BG1) ENGLISH MD-IO-40-IA-en-11 | Version 1.1...
- Page 2 Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG.
-
Page 3: Table Of Contents
Table of Contents SMA Solar Technology AG Table of Contents Information on this Document..................... Validity ................................Target Group ..............................Content and Structure of this Document......................Levels of Warning Messages.......................... Symbols in the Document..........................Typographical Elements in the Document ...................... Designations in the Document ........................ -
Page 4: Information On This Document
Content and Structure of this Document This document describes the installation, commissioning and decommissioning of the product. You will find the latest version of this document and further information on the product in PDF format at www.SMA- Solar.com. Illustrations in this document are reduced to the essential information and may deviate from the real product. -
Page 5: Typographical Elements In The Document
1 Information on this Document SMA Solar Technology AG Symbol Explanation A problem that might occur ✖ Example Typographical Elements in the Document Typography Example bold • Messages • Connect the insulated conductors to the terminals X703:1 to • Terminals X703:6. -
Page 6: Safety
All components must remain within their permitted operating ranges and their installation requirements at all times. The product must only be used in countries for which it is approved or released by SMA Solar Technology AG and the grid operator. - Page 7 NOTICE Manipulation of system data in networks You can connect the supported SMA products to the Internet. When connected to the Internet, there is a risk that unauthorized users can access and manipulate the data of your system. DHCP Server is recommended.
-
Page 8: Scope Of Delivery
3 Scope of Delivery SMA Solar Technology AG 3 Scope of Delivery Check the scope of delivery for completeness and any externally visible damage. Contact your distributor if the scope of delivery is incomplete or damaged. Figure 1: Components included in the scope of delivery... -
Page 9: Product Overview
SMA I/O modules The SMA I/O Module is a module with 6 digital inputs and 1 digital output operating as a multifunction relay. The SMA I/O Module enables the implementation of grid management services for up to 12 SMA inverters in a network with the same system password. - Page 10 4 Product Overview SMA Solar Technology AG Position Explanation Serial number Hardware version You will require the information on the type label to use the product safely and when seeking customer support from Service (see Section 10 "Contact", page 22). MD-IO-40-IA-en-11 Installation manual...
-
Page 11: Mounting
Designation Communication assembly Module slot M1* Module slot M2 * Production resources SMA Solar Technology AG recommends using module slot M1 for the module. Installing the Module DANGER Danger to life due to high voltages of the PV array When exposed to sunlight, the PV array generates dangerous DC voltage, which is present in the DC conductors and the live components of the inverter. - Page 12 5 Mounting SMA Solar Technology AG 3. Set the screws and the enclosure lid aside and store safely. 4. Install the module at the desired mounting location. Perform the following steps: • Guide the 3 guide pins on the communication assembly through the holes in the module.
-
Page 13: Connection
6 Connection SMA Solar Technology AG 6 Connection Cable Requirements UV resistance of connection cables Connection cables to be laid outdoors must be UV-resistant or routed in a UV-resistant cable channel. ☐ Number of conductors: For connecting the ripple control receiver: at least five insulated conductors... - Page 14 6 Connection SMA Solar Technology AG Additionally required material (not included in the scope of delivery): ☐ 1 ripple control receiver Requirements: ☐ The ripple control receiver must be technically suitable for connection to the digital inputs (see Section 8 "Technical Data", page 20).
-
Page 15: Use Of The Ripple Control Receiver For Further Inverters
The operating modes and connection options of the multifunctional relay on the module are identical to the operating modes and connection options of the multifunctional relay on the communication assembly of the inverter. For more information see the inverter manual at www.SMA-Solar.com. Requirements: ☐... - Page 16 6 Connection SMA Solar Technology AG ☐ The connection cable must be prepared for connection to the multipole plug (see Section 6.2 "Preparing the Connection Cable", page 13). ☐ The connection cable must be inserted through the cable gland into the inverter (see Section 6.3 "Inserting the Cables", page 13).
-
Page 17: Changing The Operating Mode Of The Multifunction Relay
For inverters with an internal multifunction relay on the communication module and an additional multifunction relay on an SMA I/O module, the operating mode can be changed separately for each multifunction relay. The parameters of the internal multifunction relay are marked with [A] on the inverter user interface. The parameters of the multifunction relay on the SMA I/O module are marked with [B]. -
Page 18: Decommissioning
Sand, dust and moisture penetration can damage the product and impair its functionality. Procedure: 1. Disconnect the inverter from voltage sources (at www.SMA-Solar.com). 2. Remove the enclosure lid of the DC Connection Unit. Unscrew all screws with a Torx screwdriver (TX25) and remove the enclosure lid carefully forward. -
Page 19: Packing The Product For Shipment
7 Decommissioning SMA Solar Technology AG • Slightly press the second locking tab outwards using the other hand and pull the module slightly forwards on the lower end until the module is released from the interlock of the locking tab. -
Page 20: Technical Data
8 Technical Data SMA Solar Technology AG 8 Technical Data General Data Mounting location In the inverter Voltage supply Via the inverter Mechanical Data Width x height x depth 60 mm x 105 mm x 33 mm Ambient Conditions for Storage/Transport Ambient temperature -40°C to +70°C... -
Page 21: Eu Declaration Of Conformity
• Electromagnetic compatibility 2014/30/EU (29.3.2014 L 96/79-106) (EMC) SMA Solar Technology AG confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above-mentioned directives. The entire EU Declaration of Conformity can be found at www.SMA-Solar.com. -
Page 22: Contact
10 Contact SMA Solar Technology AG 10 Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Inverters: – Serial number – Firmware version –... - Page 23 Toll free for Australia: SMA Online Service Center: 1800 SMA AUS www.SMA-Service.com (1800 762 287) International: +61 2 9491 4200 United Arab SMA Middle East LLC India SMA Solar India Pvt. Ltd. Emirates Abu Dhabi Mumbai +971 2234 6177 +91 22 61713888 SMA Online Service Center: www.SMA-Service.com ไทย Service Partner for String inverter: 대한민국...
- Page 24 www.SMA-Solar.com...
