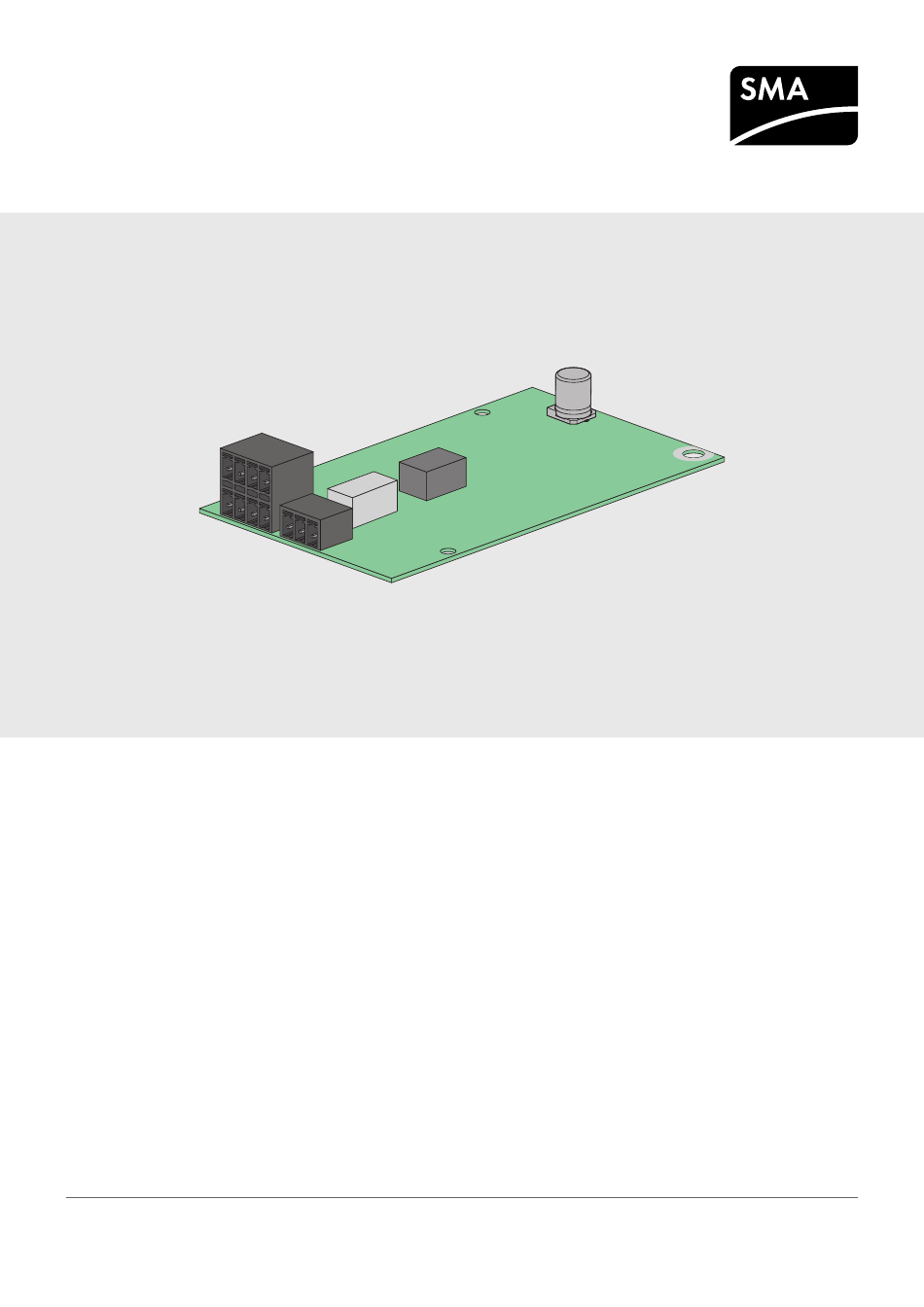

- Page 1 Installation Manual SMA I/O MODULE MD.IO-41 (PC-PWC.BG1) ENGLISH MD-IO-41-IA-en-10 | Version 1.0...
-
Page 2: Legal Provisions
Legal Provisions The information contained in these documents is the property of SMA Solar Technology AG. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, be it electronic, mechanical, photographic, magnetic or otherwise, without the prior written permission of SMA Solar Technology AG. -
Page 3: Table Of Contents
Table of Contents SMA Solar Technology AG Table of Contents Information on this Document..................... Validity................................Target Group ..............................Content and Structure of this Document......................Levels of Warning Messages.......................... Symbols in the Document..........................Typographies in the document........................Designations in the Document......................... - Page 4 Table of Contents SMA Solar Technology AG Packing the Product for Shipment ........................27 Disposing of the Product..........................27 Technical Data ..........................28 10 EU Declaration of Conformity ..................... 29 11 Contact ............................30 MD-IO-41-IA-en-10 Installation Manual...
-
Page 5: Information On This Document
1 Information on this Document Validity This document is valid for: • SMA I/O Module (MD.IO-41) with assembly designation "PC-PWC.BG1" from hardware version A1 Target Group The tasks described in this document must only be performed by qualified persons. Qualified persons must have the following skills: •... -
Page 6: Typographies In The Document
1 Information on this Document SMA Solar Technology AG Symbol Explanation Required result ☑ Example Typographies in the document Typography Example bold • Messages • Connect the insulated conductors to the terminals X703:1 to • Terminals X703:6. • Elements on a user interface •... - Page 7 System manual STORAGE) Mounting, installation, commissioning, configuration, operation, troubleshooting, and decommissioning of the SMA Commercial Storage Solution The Sunny Tripower Storage X is part of the SMA Commercial Storage Solution. SUNNY ISLAND X Operating manual Mounting, installation, commissioning, configuration, operation, troubleshooting...
-
Page 8: Safety
All components must remain within their permitted operating ranges and their installation requirements at all times. The product must only be used in countries for which it is approved or released by SMA Solar Technology AG and the grid operator. - Page 9 2 Safety SMA Solar Technology AG DANGER Danger to life due to electric shock when live components or cables of the inverter are touched High voltages are present in the conductive components or cables of the inverter. Touching live parts and cables of the inverter results in death or lethal injuries due to electric shock.
-
Page 10: Scope Of Delivery
3 Scope of Delivery SMA Solar Technology AG 3 Scope of Delivery Check the scope of delivery for completeness and any externally visible damage. Contact your distributor if the scope of delivery is incomplete or damaged. Figure 1: Components included in scope of delivery... -
Page 11: Product Overview
4 Product overview SMA Solar Technology AG 4 Product overview Product Description Figure 2: Module design Position Designation Explanation – Opening for the fastening screw – Openings for the guide pins of the communication assembly Connecting the multifunction relay OUTPUT... -
Page 12: Mounting In The Stp 50-4X And Stp 50-Jp-40
You can only use a maximum of one module of the same device type per STP 50-4x / STP 50-JP-40 inverter. Procedure: 1. Disconnect the inverter from voltage sources (at www.SMA-Solar.com). Production resources SMA Solar Technology AG recommends using module slot M1 for the module. MD-IO-41-IA-en-10 Installation Manual... - Page 13 5 Mounting in the STP 50-4x and STP 50-JP-40 SMA Solar Technology AG 2. Remove the enclosure lid of the DC Connection Unit. Unscrew all screws with a Torx screwdriver (TX25) and remove the enclosure lid carefully forward. 3. Set the screws and the enclosure lid aside and store safely.
-
Page 14: Mounting In The Stpsxx-20 And Sixx-20
• Only open the inverter if the humidity is within the thresholds and the environment is free of sand and dust. • Do not open the inverter during a dust storm or precipitation. Procedure: 1. Disconnect the inverter from all voltage sources (see the inverter manual at www.SMA-Solar.com). MD-IO-41-IA-en-10 Installation Manual... - Page 15 6 Mounting in the STPSxx-20 and SIxx-20 SMA Solar Technology AG 2. Insert the two supplied plastic spacer bolts with external threads into the positions shown and tighten them (hexagon socket, width across flats: 6 mm, tightening torque: 0.2 Nm ± 0.05 Nm (1.8 in- lb ±...
- Page 16 6 Mounting in the STPSxx-20 and SIxx-20 SMA Solar Technology AG 6. Insert the two supplied plastic spacer bolts with internal threads into the positions shown and tighten them hand-tight (hexagon socket, width across flats: 5.5 mm, tightening torque: 0.15 Nm ±...
-
Page 17: Connection
7 Connection SMA Solar Technology AG 7 Connection Cable Requirements UV resistance of connection cables Connection cables to be laid outdoors must be UV-resistant or routed in a UV-resistant cable channel. • Number of conductors: For connecting the ripple control receiver: at least 5 insulated conductors... -
Page 18: Pin Assignment For Terminal Output
7 Connection SMA Solar Technology AG 7.2.2 Pin assignment for terminal OUTPUT Figure 7: Pin assignment for terminal OUTPUT Explanation Make contact Change-over contact Break contact Also see: • Connecting the Multifunction Relay ⇒ page 23 Preparing the Connection Cable Always proceed as follows to prepare each connection cable for connection to multipole terminal blocks. -
Page 19: Connection Of A Ripple Control Receiver
7 Connection SMA Solar Technology AG Connection of a Ripple Control Receiver 7.5.1 Use of the Ripple Control Receiver for Several Inverters You can use the signal from one ripple control receiver for a maximum of twelve inverters. To this end, you must only equip one of the inverters in the PV system with the module. -
Page 20: Circuitry Overview With A Ripple Control Receiver And Grid And Pv System Protection
7 Connection SMA Solar Technology AG 7.5.4 Circuitry Overview with a Ripple Control Receiver and Grid and PV System Protection Ripple control receiver System protection relay of the monitoring unit (grid and PV system protection) Figure 9: Connection of a ripple control receiver and grid and PV system protection Also see: •... -
Page 21: Connection Of A Grid And Pv System Protection
7 Connection SMA Solar Technology AG 5. If needed, make more connections on the module. 6. If no further connections are required on the module, close the inverter and commission it (see the inverter manual or system manual). 7. Configure the digital inputs via the user interface of the inverter (see the inverter manual or system manual). -
Page 22: Connecting Grid And Pv System Protection
7 Connection SMA Solar Technology AG 7.6.3 Connecting Grid and PV System Protection 1. Connect the connection cable to the signal generator (see the manual from manufacturer). Trim the unused insulated conductors up to the cable sheath and write down the conductor colors of the required insulated conductors. -
Page 23: Connecting The Multifunction Relay
The operating modes and connection options of the multifunctional relay on the module are identical to the operating modes and connection options of the multifunctional relay on the communication assembly of the inverter. For more information see the inverter manual at www.SMA-Solar.com. Procedure: 1. -
Page 24: Decommissioning
• Do not open the inverter during a dust storm or precipitation. Procedure: 1. Disconnect the inverter from all voltage sources (see the inverter manual at www.SMA-Solar.com). 2. Remove the pan head screw shown. 3. Remove the two plastic spacer bolts with internal threads. -
Page 25: Removing The Module From Stp 50-4X / Stp 50-Jp-40
8 Decommissioning SMA Solar Technology AG 4. Remove the module from its slot by pulling it forwards. 5. Remove the metal spacer bolt. 6. Remove the two plastic spacer bolts with external threads. Removing the Module from STP 50-4x / STP 50-JP-40... - Page 26 8 Decommissioning SMA Solar Technology AG Procedure: 1. Disconnect the inverter from voltage sources. 2. Remove the enclosure lid of the DC Connection Unit. Unscrew all screws with a Torx screwdriver (TX25) and remove the enclosure lid carefully forward. 3. Set the screws and the enclosure lid aside and store safely.
-
Page 27: Packing The Product For Shipment
8 Decommissioning SMA Solar Technology AG Packing the Product for Shipment • Pack the product for shipping. Use the original packaging or packaging that is suitable for the weight and size of the product. Disposing of the Product • Dispose of the product in accordance with the locally applicable disposal regulations for electronic waste. -
Page 28: Technical Data
9 Technical Data SMA Solar Technology AG 9 Technical Data General data Mounting location In the inverter Voltage supply Via the inverter Mechanical data Width x height x depth 60 mm x 105 mm x 33 mm Ambient Conditions for Storage/Transport Ambient temperature -40°C to +70°C... -
Page 29: Eu Declaration Of Conformity
• Electromagnetic compatibility 2014/30/EU (29.3.2014 L 96/79-106) (EMC) SMA Solar Technology AG confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the aforementioned directives. More information on the availability of the entire Declaration of Conformity can be found at https://www.sma.de/en/ce-ukca. -
Page 30: Contact
11 Contact SMA Solar Technology AG 11 Contact If you have technical problems with our products, please contact the SMA Service Line. The following data is required in order to provide you with the necessary assistance: • Inverter: – Device type – Serial number –... - Page 32 www.SMA-Solar.com...
