Taurus FS10.5 Pro Assembly And Operating Instructions Manual page 16

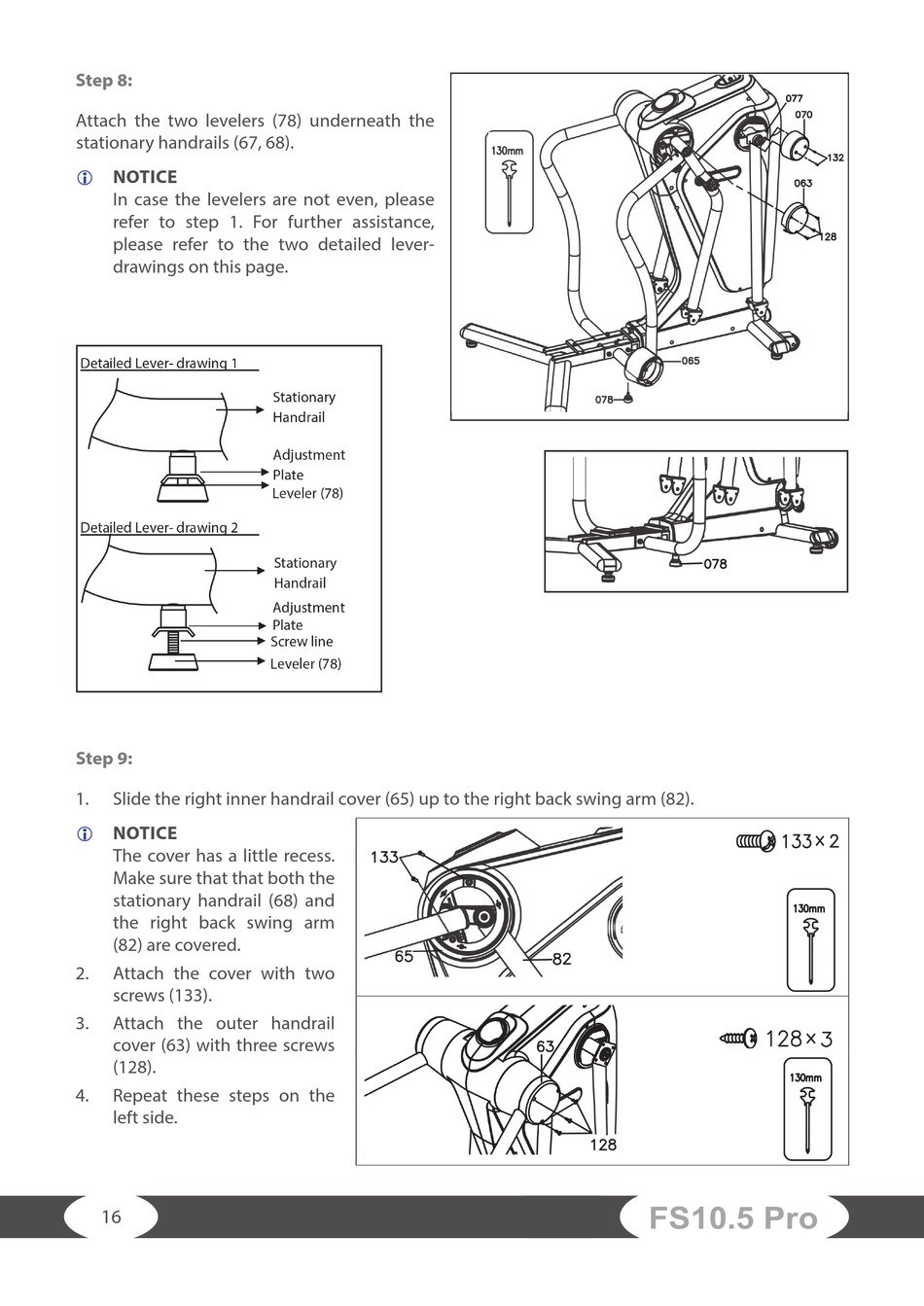

Step 8:
Attach the two levelers (78) underneath the
stationary handrails (67, 68).
NOTICE
L
In case the levelers are not even, please
refer to step 1. For further assistance,
please refer to the two detailed lever-
drawings on this page.
Step 9:
1. Slide the right inner handrail cover (65) up to the right back swing arm (82).
NOTICE
L
The cover has a little recess.
Make sure that that both the
stationary handrail (68) and
the right back swing arm
(82) are covered.
2. Attach the cover with two
screws (133).
3. Attach the outer handrail
cover (63) with three screws
(128).
4. Repeat these steps on the
left side.
16
FS10.5 Pro
