Wood-mizer SlabMizer MB200 Quick Start Manual page 3

WARNING! Turn off the motor whenever the slab
flattener is not cutting.
KEEP SAFETY LABELS IN GOOD CONDITION
CAUTION! Always be sure that all safety decals are
clean and readable. Replace all damaged safety
decals to prevent personal injury or damage to the
equipment. Contact your local distributor, or call your
Customer Service Representative to order more
decals.
CAUTION! If replacing a component which has a
safety decal affixed to it, ensure the new component
also has the safety decal affixed.
USE CAUTION WHEN WORKING WITH HEAVY SLABS
WARNING! Always make sure material is clamped
securely before processing.

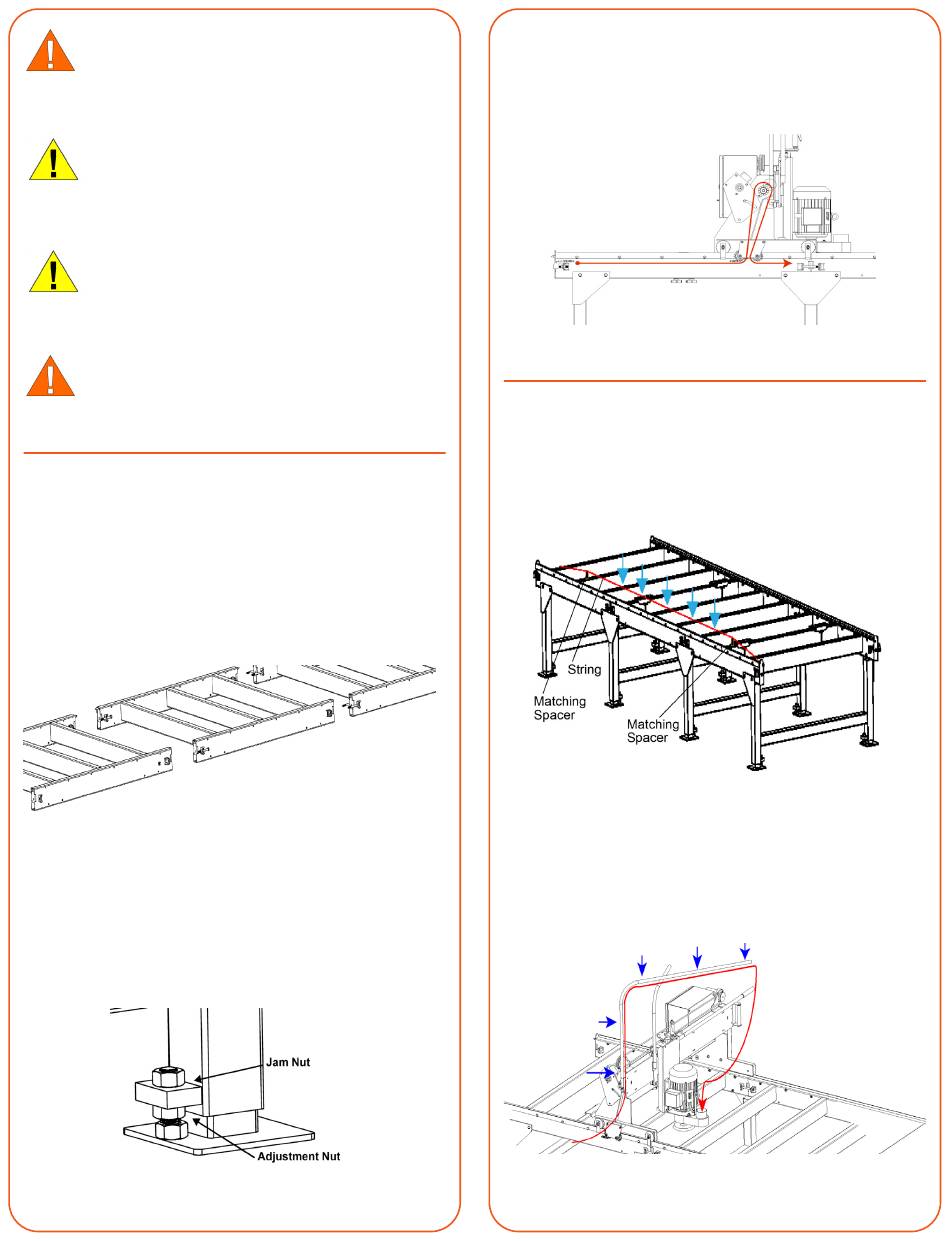

Assembly
For complete details, refer to "Slab Flattener Assembly" in the
Assembly and Operations Manual.
STEP 1: Uncrate Slab Flattener
Disassemble shipping straps, remove bed sections from shipping
skid, and ensure all parts are present.
STEP 2: Assemble Bed Sections
Lay the bed sections end-to-end, slide the sections together, and
secure them.
STEP 3: Install to Assembled Bed Sections
• Install the side rails to the assembled bed sections.
• Attach the leg assemblies to the bed sections.
• Install the Head Stops at each end of the bed section.
• Position the clamps to best secure the slab being finished.
STEP 4: Adjust Legs
Adjust the leg height by loosening the upper jam nut and
tightening or loosening the lower adjustment nut.
STEP 5: Install onto Assembled Bed
• Place the Head onto the assembled bed section.
• Secure the Head to the bed assembly by installing the Head
Retainers.
• Connect the Feed Chain to the tensioners and run it under
and around the drive sprockets.
Setup
For complete details, refer to "Slab Flattener Setup" in the Assem-
bly and Operations Manual.
STEP 1: Set Up Bed Frame
Adjust the frame legs to level the Slab Flattener, using a string
and spacers to measure the distance between the rails.
STEP 2: Install Electrical Connections
Prepare your site for installation of your slab flattener, ensuring
cables are properly secured, and a qualified electrician installs the
power supply and is present for installation of the slab flattener.
STEP 3: Install Vacuum Hose
Secure the Vacuum Hose to the Vacuum Hose Arm.
