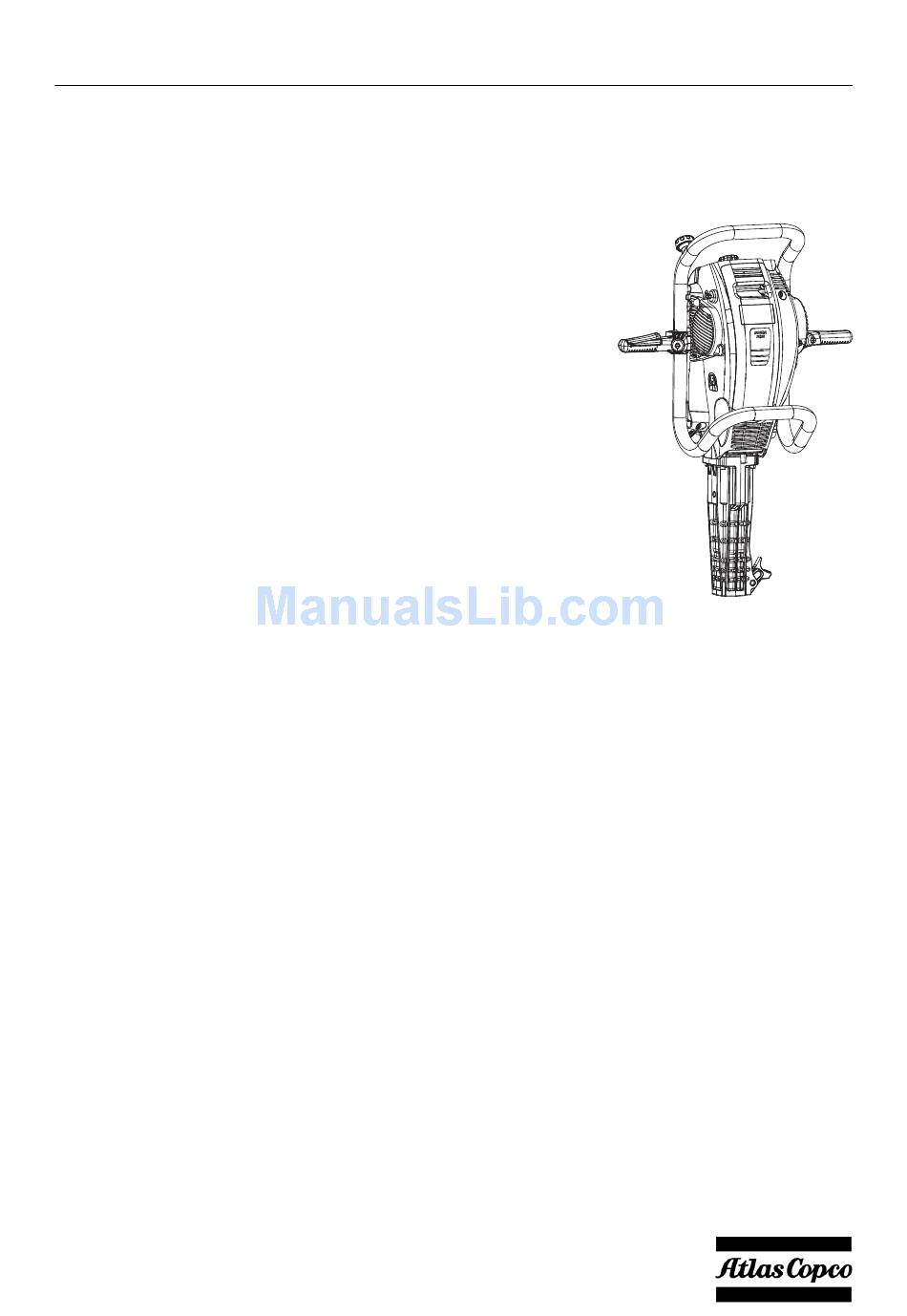

- Page 1 COBRA PROi Safety and operating instructions Petrol breakers © Construction Tools PC AB | 9800 1758 01 | 2017-01-10 Original instructions...
-
Page 3: Table Of Contents
COBRA PROi Contents Contents Introduction ..............................5 About the Safety and operating instructions ....................5 Safety instructions ............................5 Safety signal words ..........................5 Personal precautions and qualifications ....................5 Personal protective equipment ......................5 Drugs, alcohol or medication ......................... 5 Installation, precautions .......................... - Page 4 Contents COBRA PROi Technical data .............................. 20 Products ..............................20 Machine data ............................20 Gearbox unit ............................20 Impact unit ............................... 21 Noise and vibration declaration statement ..................21 Noise and vibration data ........................21 Dimensions ............................. 22 EC Declaration of Conformity ........................23 EC Declaration of Conformity (EC Directive 2006/42/EC) ..............
-
Page 5: Introduction
WARNING Indicates a hazardous Atlas Copco has a strong global sales and service situation which, if not avoided, network, consisting of customer centers and could result in death or distributors worldwide. Our experts are highly serious injury. -
Page 6: Installation, Precautions
Safety and operating instructions COBRA PROi No person who is under the influence of drugs, Avoid contact with the warm exhaust pipe or the ► ► alcohol or medication may operate the bottom of the machine. machine. DANGER Fuel hazard Installation, precautions The fuel is extremely flammable and petrol fumes can explode when ignited, causing serious injury or... - Page 7 COBRA PROi Safety and operating instructions Always inspect the equipment prior to use. Make sure that controls are properly installed, ► Never use the equipment if you suspect that it maintained and correctly used. is damaged. Wear, maintain and correctly use respiratory ►...
- Page 8 Safety and operating instructions COBRA PROi on advice from health and safety experts. Always make sure you are in a stable position ► Consult with experts. with your feet as far apart as your shoulder width and keeping a balanced body weight. Residues of hazardous substances on the ►...
- Page 9 COBRA PROi Safety and operating instructions should have are your hands on the handles. Watch out for concealed cables and pipes for ► Avoid any other contact, for example supporting example electricity, telephone, water, gas and any part of the body against the machine or sewage lines etc.
-
Page 10: Maintenance, Precautions
Safety and operating instructions COBRA PROi Wait until the front cover, exhaust pipe and ► WARNING Slippery machine surface hazard accessible metallic parts of the machine has There is a risk that the machine (for example, the cooled down before carrying out maintenance handle and other surfaces) is slippery due to work. -
Page 11: Overview
COBRA PROi Safety and operating instructions Overview F. Fan cover / Cooling air inlet G. Engine control unit H. Throttle lever To reduce the risk of serious injury or death to yourself or others, read the Safety instructions I. Spark plug section found on the previous pages of this J. -
Page 12: Noise Level Label
Atlas Copco’s petrol engined hammering and rock-drilling machines. If Atlas Copco’s two-stroke oil is not available, use a high quality two-stroke oil for air-cooled engines To reduce the risk of injury, everyone using, (not two-stroke oil for outboard engines). -
Page 13: Mixing The Petrol And Oil
COBRA PROi Safety and operating instructions Mixing the petrol and oil 4. Never overfill the tank. It is possible due to the movement of the fuel within the tank to have Always mix the petrol and oil in a clean petrol can. fuel at a higher level than the tank cap, which First add the oil and then the correct amount of can lead to a spillage of fuel if the tank cap is... -
Page 14: Moil Point
Safety and operating instructions COBRA PROi Moil point Use the gauge that corresponds to the insertion tool’s shank dimension. See section "Technical data" for correct tool shank dimensions. The moil point is only used for making holes in concrete and Check if the gauge’s hole (A) can be pushed •... -
Page 15: Operating
COBRA PROi Safety and operating instructions Operating Starting a cut ◆ Stand in a stable position with feet well away from the working tool. ◆ Press the machine against the working surface before starting. ◆ The impact unit is activated when the machine is pressed down and loaded. -
Page 16: When Taking A Break
It is also possible to rotate the working tool in Perform service at your nearest authorized the tool chuck instead of rotating the actual workshop according to Atlas Copco's machine. recommended service intervals. The service kits needed for each interval can be found in... -
Page 17: Every Month
If a working tool with a worn shank is used, standing upright. The volume of the gearbox is machine vibration will increase. Avoid such 0.1 litre. Use only Atlas Copco IMPACT-OIL. vibration by checking for shank wear before mounting the working tool on the machine. -
Page 18: Repair
Safety and operating instructions COBRA PROi Repair Replacing the starter cord Removing the old starter cord 1. Remove the starting mechanism. 7. If the starter spring must be rewound, place the 2. Pull out about 40 cm (16 in.) of the cord. spring-hook in the pulley groove and wind on the spring anti-clockwise. -
Page 19: Troubleshooting
COBRA PROi Safety and operating instructions Storage ◆ Empty the tank before storing the machine. ◆ Check that the machine is properly cleaned before putting it away for storage. ◆ Store the machine in a dry place. ◆ We recommend to store the machine in a standing position. -
Page 20: Technical Data
Fuel tank capacity, litres (oz) 1 (33.8) 1 (33.8) Fuel mixture 2 % (1:50) 2 % (1:50) Oil type Atlas Copco two-stroke oil, or recommended two-stroke oil Fuel consumption, litres/hour (gallon/ 1.33 (0.293) 1.33 (0.293) hour) Engine type 1 cylinder, two-stroke... -
Page 21: Impact Unit
Cobra PROi Impact energy 60 J at 1440 bpm Lubrication Impact mechanism through separate oil bath Oil type for impact unit Atlas Copco IMPACT-OIL Oil capacity, litres (oz) 0.1 (3.38) Oil consumption, litres/hour (oz/hour) 0.005 (0.17) Noise and vibration declaration statement Guaranteed sound power level Lw according to EN ISO 3744 in accordance with directive 2000/14/EC. -
Page 22: Dimensions
Safety and operating instructions COBRA PROi Dimensions mm (in.) 623 (24.53) 358 (14.10) 314 (12.36) 315 (12.40) 271 (10.67) * Cobra PROi 25x108. © Construction Tools PC AB | 9800 1758 01 | 2017-01-10 Original instructions... -
Page 23: Ec Declaration Of Conformity
COBRA PROi Safety and operating instructions EC Declaration of Conformity EC Declaration of Conformity (EC Directive 2006/42/EC) We, Construction Tools PC AB, hereby declare that the machines listed below conform to the provisions of EC Directive 2006/42/EC (Machinery Directive) and 2000/14/EC (Noise Directive), and the harmonised standards mentioned below. - Page 24 Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular to trademarks, model denominations, part numbers, and drawings. www.atlascopco.com...
