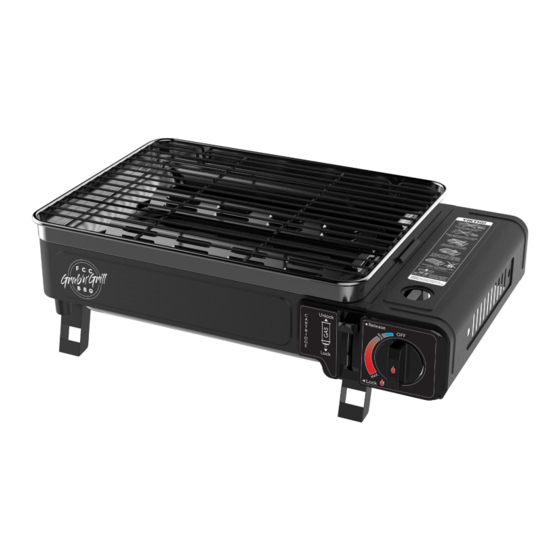

- Page 1 PORTABLE GAS BBQ Instructions and maintenance MANUAL FCC-G-20500-00 / PB-2500-VW01 OUTDOOR USE ONLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE.
-
Page 2: Table Of Contents
Contents Warnings Technical data Parts list Gas cartridge Operating instructions Recipe Troubleshooting Consumer contact... -
Page 3: Warnings
Warnings ● FOR OUTDOOR USE ONLY ● DO NOT USE IN DIRECT SUNLIGHT. ● KEEP BOTTOM AWAY FROM DIRT AND SAND. ● THIS GRILL MUST ALWAYS BE OPERATED ON A HORIZONTAL, SECURE AND STEADY SURFACE. DO NOT USE THE GRILL ON TOP OF THE PLASTIC CASE! ●... -
Page 4: Technical Data
Technical Data Tekniske data Total Heat input: 2.5kW Gas consumption: 180 gram/hour Casette gas cartridge (not included): This appliance category is Direct Pressure Butane and should only be used with a 220g butane gas cartridge or compatible alternative that complies to EN417. -
Page 5: Parts List
Parts list COOKING GRATE DECORATIVE PLATE COOKING PLATE CONTROL KNOB HEAT TENT VALVE ASSEMBLY FIREBOX COVER OF GAS CARTRIDGE FOLDABLE LEG GAS CARTRIDGE LOCATION LUG GAS CANISTER AND RELEASE LEAVER GREASE TRAY BOTTLE OPENER / LIFTING TOOL... -
Page 6: Gas Cartridge
Gas cartridge THIS APPLIANCE CATEGORY IS DIRECT PRESSURE BUTANE AND SHOULD ONLY BE USED WITH A BUTANE GAS CARTRIDGE OR COMPATIBLE ALTERNATIVE THAT COMPLIES TO EN417. Check seal regularly! When replacing or removing a cartridge check that seals (between cartridge and appliance) are in place and in good condition. -
Page 7: Operating Instructions
Operating instructions THESE INSTRUCTIONS ARE DESIGNED FOR YOUR BENEFIT WE STRONGLY RECOMMEND THAT YOU READ THEM CAREFULLY BEFORE USING YOUR NEW BBQ . ONCE YOU HAVE FAMILIARISED YOURSELF WITH THE OPERATION AND CARE OF THIS GRILL, PLEASE KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE. UNFOLD THE LEGS ON THE GRILL BEFORE USE! Ensure grill is placed on a flat level surface when in use. - Page 8 Operating instructions Flip open the gas cartridge cover (10). Locate butane gas cartridge into the cradle. This should be compatible alternative that complies to EN417. Ensure the butane gas cartridge seats correctly into seal and the cannister slot lines up with the safety alignment lug (9). MIN.
- Page 9 Operating instructions MIN. UNLOCK Turning off heater Turn control knob (8) fully clockwise to off position and move cartridge Locking and release lever to unlock position off. Remove gas cartridge and store in a cool dry place. LOCK MAX. Please note before igniting: A small amount of ”flaring”...
-
Page 10: Recipe
Recipe Try to make one of our favorites SATÉ PONOROGO MALAYSIAN MARINATED CHICKEN, BEEF AND SCAMPI SKEWER, WITH HOME-MADE PEANUT SAUCE 4 SERVINGS PEANUT SAUCE INGREDIENTS INGREDIENTS 10 g fresh ginger 200 g chicken fillet 1 chili, with seeds 200 g beef 50 g coconut powder 200 g scampi dl peanut butter... - Page 11 Feilsøking PROBLEM POSSIBLE CAUSE SOLUTION Gas can is empty. Replace gas can. Pressure safety lever is in open Push lever to locked position. position. Check cartridge is aligned Gas cartridge not located correctly and control lever is in correctly. lock position. BURNER WILL NOT LIGHT Clean jet with wire brush to...
-
Page 12: Consumer Contact
Consumer Contact This product is covered by a warranty in accordance with consumer legislation. It has undergone strict quality controls and testing at the factory. If there are any parts missing or the product has been damaged, please contact your dealer or the consumer contact below for help.
