Summary of Contents for Cuppone RND280
- Page 1 Rounding machine Pre-installation and installation manual RND280 RND800 Ed. 0121 - 70702601 REV00 Rounding machine - Preinstallation...
-
Page 2: Table Of Contents
Technical data ................5 ified staff, that can take responsibility for the installation and binding. RND280 rounding machine technical data .......6 guarantee the best safe operating conditions. The original language used to prepare this manual is English: RND800 rounding machine technical data .......6... - Page 3 CHECKS BEFORE PURCHASING Before purchasing the product and installing it, check the • there is adequate ventilation according to the reg- Fig. 1 following conditions, necessary for the correct installation, ulations in force in the Country of installation. If this is operation and maintenance of the product.
- Page 4 Checks before purchasing Electrical data Electrical connection (qualified electrician’s Current inspection) Supply Motor Cable type Model draw n x mm √ For a correct connection during the installation: AC 230V/50Hz 0.37 kW 3x1.5 • provide a socket connecting to the electrical net- RND 280 AC 3 N 400V/50Hz 0.37 kW...
-
Page 5: Technical Data

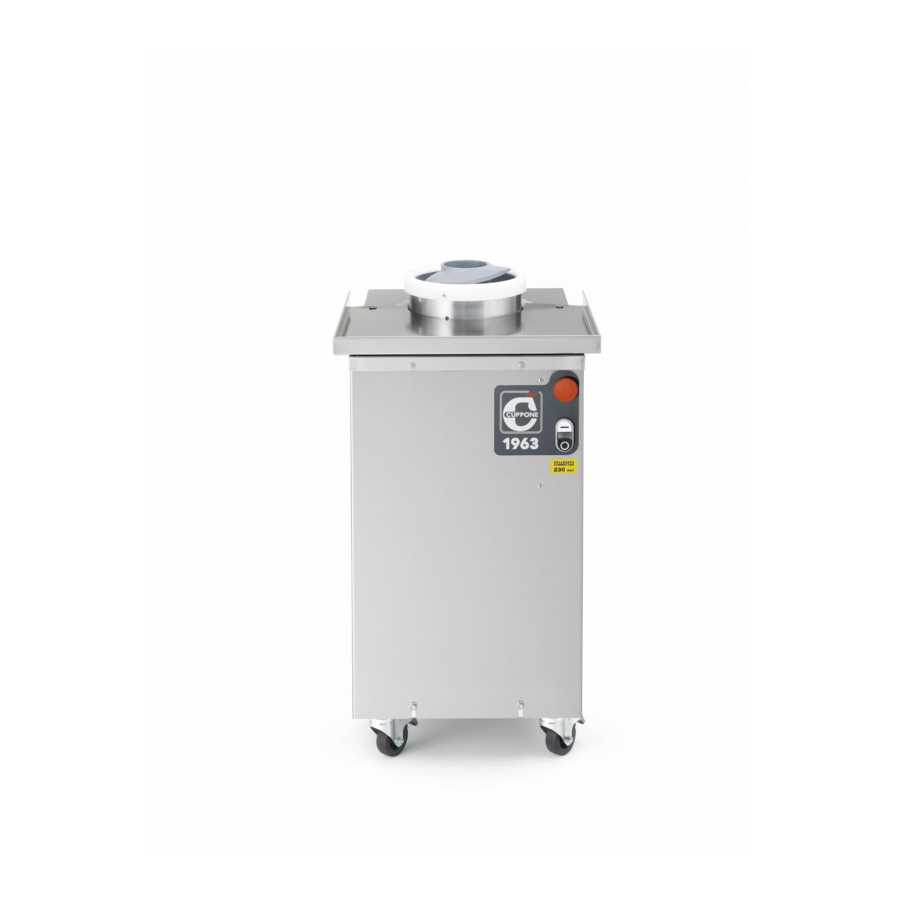

TECHNICAL DATA Knowing the appliance Fig. 3 Knowing the appliance This appliance has been designed and built for food use only, for the cold processing of cereal flour-based doughs; its main use is therefore in pizzerias, bakeries and pastry shops. The purpose of the machine is to round portions of already portioned dough to the desired weight, while maintaining the basic characteristics of the dough unaltered;... -
Page 6: Rnd280 Rounding Machine Technical Data
RND280 rounding machine technical data RND800 rounding machine technical data rounding machine weight 55 kg [121.2 lb] rounding machine weight 86 kg [189.5 lb] weight of packaging + rounding machine 64 kg [141 lb] weight of packaging + rounding machine 95 kg [209.4 lb]... -
Page 7: Safety Instructions
INSTALLATION Symbols used in the manual and on Safety instructions room in which this equipment is installed. Do not obstruct the ventilation and exhaust the labels applied to the machine • Read this guide carefully before installing the holes of this or other equipment. appliance, and keep it with care in an accessible Indicates that caution is required when performing • Persons not involved with the appliance installa-... -
Page 8: Symbols Applied To The Machine
Installation Symbols applied to the machine Attention, moving mechanical parts Attention, hand crushing risk It is FORBIDDEN to remove the safety devices IT IS FORBIDDEN to clean, lubricate and adjust the elements of the machine when they are moving Main regulations and directives complied with and to be complied with Directive 2014/35/EU “Concerning the approximation of the laws of the Member States relating to electrical equipment intended for use within certain voltage limits”. -
Page 9: Transport
Installation Transport Fig. 4 Fitted with personal protection equipment, transport the appliance to the installation location. Use suitable equipment, capable of dealing with its weight: persons not involved with the appliance installation may not pass through or stand in the work area during the appliance assembly. -
Page 10: Serial Number Plate Reading
It provides important technical information that is vital in case of a request for maintenance or repair of the appliance: please Year of production do not remove, damage or modify it. MADE IN ITALY 2021 Mod. RND280-A5-CP Absorption VOLT VOLT 230V, 50Hz 0,37... -
Page 11: Electrical Connection
Installation Installation Electrical connection Before installing the appliance, check that systems The following pages show the electrical diagrams: comply with the regulations in force in the country please refer to the one of the specific model to where it is going to be used and with the specifica- connect. -
Page 12: Wiring Diagrams
Wiring diagrams AC 230V/50Hz Abbreviation Description Semiconductor diode Power relay LED1 Light emitting diode Resistor NC limit switch START NO control or button STOP NC control or button Transformer Limit switch faston terminal... - Page 13 Wiring diagrams AC 3 N 400V/50Hz Abbreviation Description Power relay Motor NC emergency limit switch NC stop button NO start/stop button Transformer Bulb 0,37 kW Ed. 0121 - 70702601 REV00 Rounding machine - Preinstallation...
-
Page 14: Final Operations
FINAL OPERATIONS Pre-testing and final inspection The product is checked and tested in the Manufacturer’s plant before being delivered to the customer. The “production process check sheet” enclosed with it guarantees that each step in the production process, from assembly to packaging, was carefully checked from both the operating and safety standpoints. - Page 15 Dough hydration The portion of dough that goes into the auger Minimum Maximum is too large RND280 from 50% to 65% 20 g [0.044 lb / 0.70 ounces] 300 gr [0.66 lb / 10.58 ounces] RND800 from 50% to 65% 20 g [0.044 lb / 0.70 ounces]...
- Page 16 CUPPONE 1963 Cuppone F.lli S.r.l. Via Sile, 36 31057 Silea (TV) - ITALY T +39 0422 361143 F +39 0422 360993 info@cuppone.com - www.cuppone.com...
