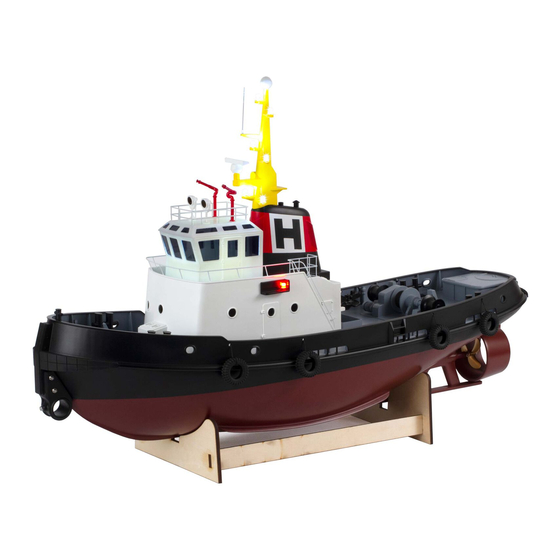

Horizon Hobby Horizon Harbor Optional Cannon Pump Owner's Manual

Horizon Hobby Horizon Harbor Optional Cannon Pump Owner's Manual

Advertisement

Available languages

Available languages

Quick Links

Owners Manual • Bedienungsanleitung • Manuel de l'utilisateur • Manuale dell'utente
EN
Optional Water Cannon Pump
Use the existing mount to install the water cannon pump into
the hull.
1. Remove the water inlet cap from the water pickup
silicone tube.
2. Place the water pump and bracket into the hull, lining up
the two screw holes inside with the motor facing forward.
3. Tighten the two screws that hold the water pump in
place, and install the rear facing silicone line to the water
pickup.
4. Plug the long main cabin waterline into the outlet on the
left side of the pump.
OFF
ON
To operate the water pump, press the CH 3 button
on the transmitter.
The pump shuts off when you release the button.
Horizon Harbor Optional Cannon Pump
Horizon Harbor
™ ™
Optional Cannon Pump
5. Attach the water pump controller to the side of the ballast
box using the included double-sided foam tape.
6. Plug the controller servo wire into the 2-in-1 receiver/ESC
third channel port.
7. Install the Y power harness into the ESC power wires.
This powers the boat and water pump from your selected
battery.
