Page 6
Steering Wheel 16mm Green Cargo Rope 6 x 60 screws...
Page 7
Large U Nails Tools needed: • Cordless drill • Handsaw • Spirit Level • Hammer • Shovel • Stepladder • Pencil • Measuring tape • 10mm Hex bit • PZ 2 Drill Bit...
Page 8

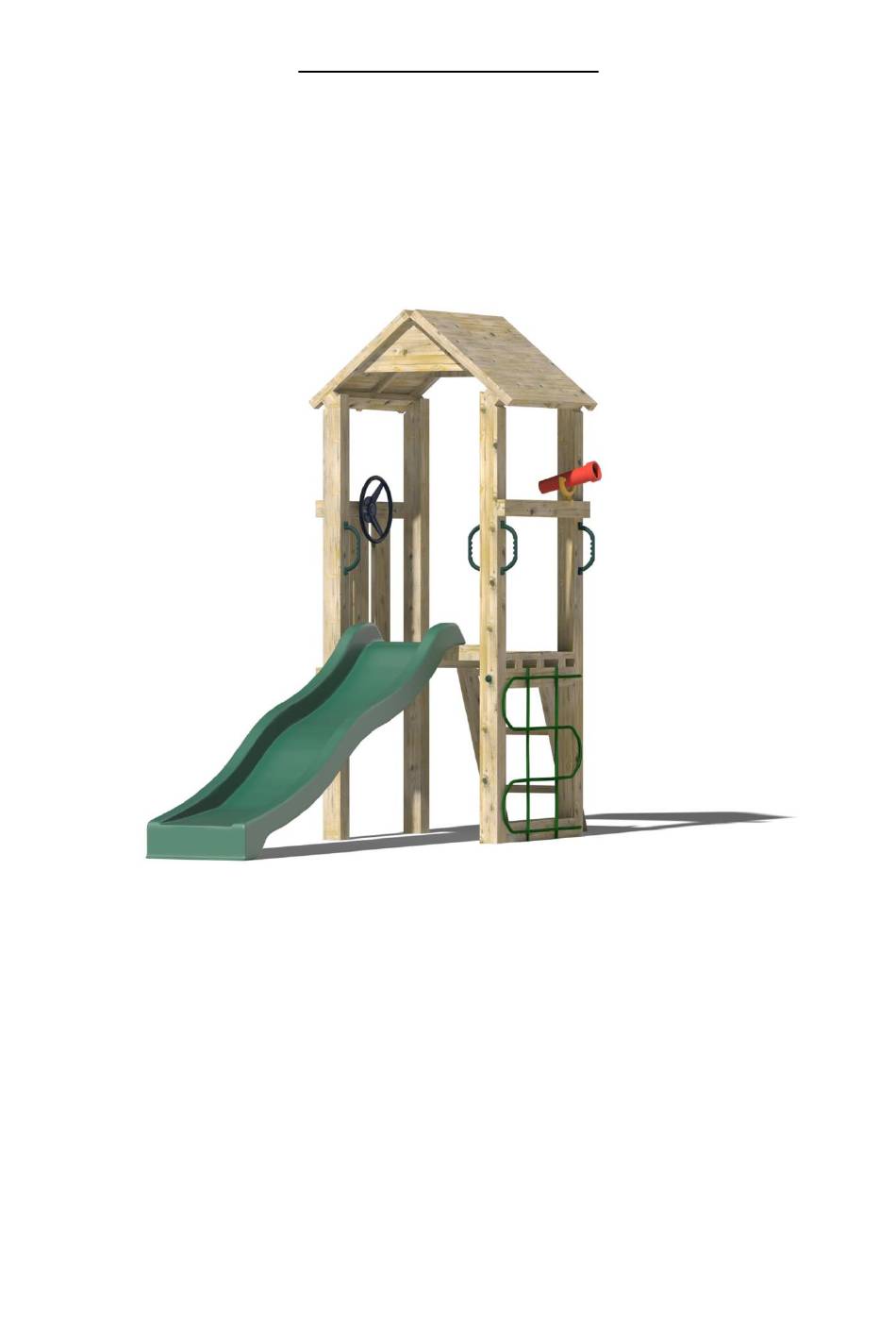

Assembly Instructions All components needed during the assembly are numbered with reference to the parts list, please refer back to the parts list to ensure you are assembling the correct components for each step. Step 1: ‘H-Frame’ Assembly • Lay 2 x 2.4m posts that are cut at a 40° angle on a level surface •...
Page 9
Step 3: • Make a mark 1800mm (1.8m) from the top of both 2.4m posts. • Using a piece of 900mm 3” x 1.5” timber and the 65mm decking screws, screw the timber to the 2.4m posts at the 1.8m mark you made on the posts (this is to strengthen the H-frame structure, without this additional support at the bottom the frame will twist once it is lifted •...
Page 10
Step 4: • Place another 900mm 3” x 1.5” timber on the 40° angle on the top of the post and screw into place using the 65mm decking screws • Steps 3 and 4 strengthen the H-frame structure, without this additional support at the top and bottom, the frame will twist once it is lifted up...
Page 11
Step 5: • Repeat steps 1-4 for the 2 H-frame Step 6: (Requires heavy lifting, please use at least 2 people) • Dig holes in the grass in the position that you want the climbing frame to be placed with a diameter of approx.
Page 12
Step 7: • Using 2 pieces of 720mm x 3” x 1.5” timber, connect the two H-frames together using decking screws • These pieces of timber will also be removed at the end of the installation...
Page 13
Step 8: Base Assembly • Create the base using 3 x 900mm x 3” x 1.5” and the decking boards. Two of the decking boards should be cut out at the corners to fit around the posts. Secure the other decking boards in between them and this should give you a 900mm x 900mm base.
Page 14
Step 9: Securing the Base to the Tower • The structure should now be able to stand on its own • Lift the base and place it onto the two horizontal posts. The 3” x 1.5” base supports should sit onto the horizontal posts •...
Page 15
Step 10: Roof Assembly • Place one of the 950mm x 650mm roof panels directly onto the ground (so that the shingled part is facing downwards) • Using the ‘v’ boards provided assemble the two roof panels together using decking screws...
Page 16
Step 11: • Lift the roof onto the climbing frame and ensure it is positioned evenly on all sides before securing the roof to the top of the post using 2 x decking screws for each 2” x 1” support of the roof panel •...
Page 17
Step 12: Steps Assembly • The steps might have to be cut or dug into place (depending on the slope of your surface) • They are secured using decking screws through the top and sides of the steps into the base of the tower.
Page 18
Step 13: Slide Assembly • Secure a piece of 720mm x 3” x 1.5” to the front of the base using decking screws, the slide will be secured to this. • Using two 6 x 60 screws, secure the slide to the 720mm x 3” x 1.5” through the pre-drilled holes in the slide...
Page 20
Step 14: Railings Assembly • Secure a piece of 900mm x 3” x 1.5” to the outside of two upright posts, the 3” x 1.5” should be level with the 720mm post that the base is secured to. • Secure another 900mm x 3” x 1.5”to the posts, ensure there is 850mm between the timbers so the 850mm x 6”...
Page 21
Step 15: Railings Assembly • Secure the 3 pieces of 850mm x 6” x 1” boards to the timbers secured in the last step using decking screws.
Page 22
Step 16: Railings Assembly • On the other side of the tower, secure a piece of 900mm x 3” x 1.5” using decking screws at the same height as the higher 900mm timber on the other side of the tower.
Page 23
Step 17: • Drill 32mm holes approx. 20mm deep on the outside of two upright posts at the bottom, place the remaining 720mm post between the uprights and secure using 200mm index screws through the 32mm holes.
Page 24
Step 18: Cargo Net Assembly • The cargo rope will be secured from the top of the 720mm post that the base is secured to and the bottom of the 720mm post secured in the last step. Starting by nailing the cargo net horizontally along the top post and then make marks every 250mm, this will give you the position as to where you need to nail the rope on each side, pulling the rope tight across the horizontal each time.
Page 25
Step 19: • Add the telescope, steering wheel and grab handles using the fixings supplied and press the screw covers in all the 32mm holes. Step 20: Concreting structure • Using postcrete and following the manufacturer’s instructions, concrete all the posts into the ground •...
Page 26
Step 21: Removing the H-Frame supports • Remove the lower H-Frame supports that were added during steps 3 and 7.
Page 27
The final stage is to give everything a good sand down to avoid the children getting splinters from any rough edges. All screws should also be checked to ensure they are flush to the surface they are securing.
Page 28
Maintaining Your Climbing Frame My climbing frame has been installed, what do I do next? A: If your climbing frame was installed in a grassed area the installers have concreted the frame into the ground. They have left a small exposed hole, where the posts have been sunk into the ground. The reason this has been done is to allow the concrete to set overnight.
