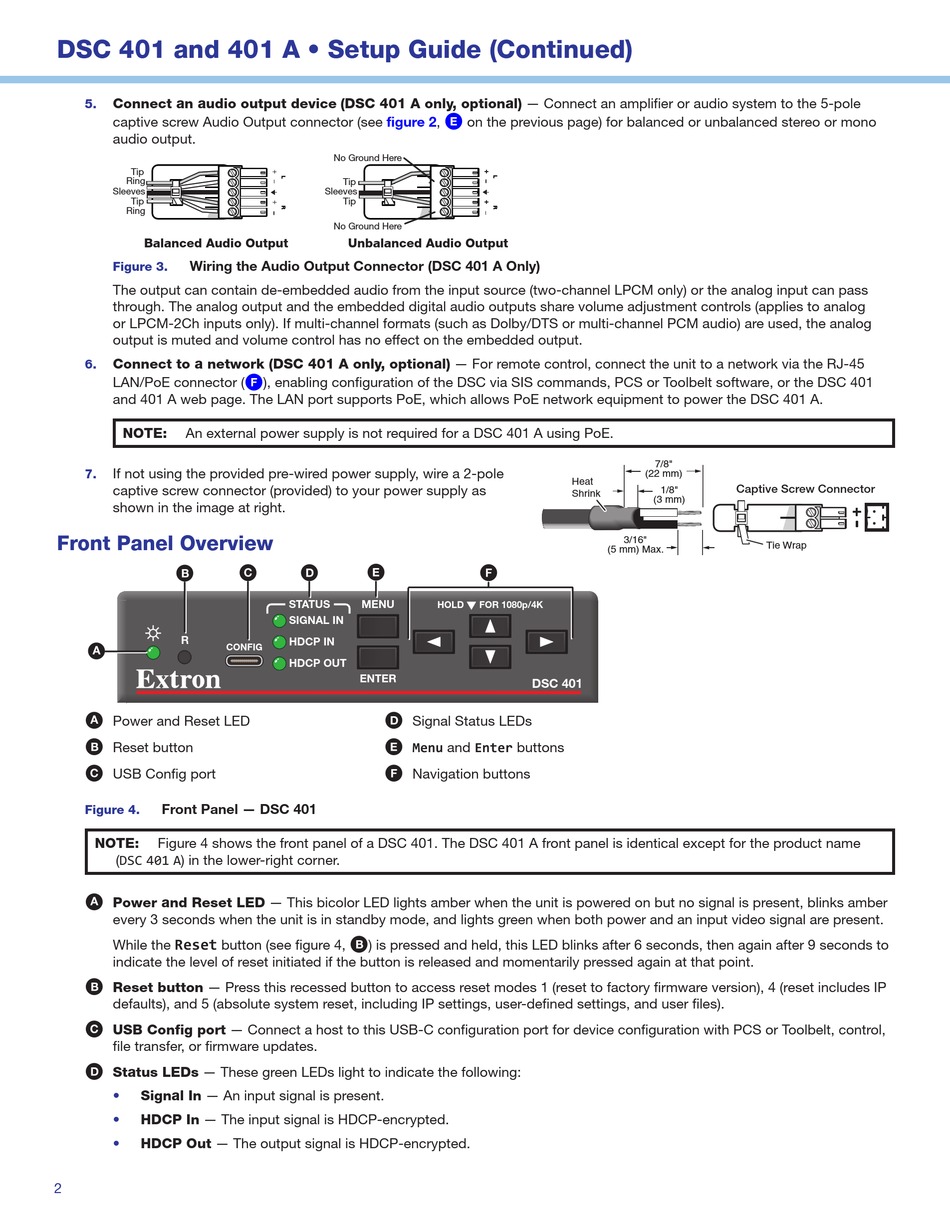

DSC 401 and 401 A • Setup Guide (Continued)
Connect an audio output device (DSC 401 A only, optional) — Connect an amplifier or audio system to the 5-pole
5.
captive screw Audio Output connector (see figure 2,
audio output.
Tip
Ring
Sleeves
Tip
Ring
Balanced Audio Output
Wiring the Audio Output Connector (DSC 401 A Only)
Figure 3.
The output can contain de-embedded audio from the input source (two-channel LPCM only) or the analog input can pass
through. The analog output and the embedded digital audio outputs share volume adjustment controls (applies to analog
or LPCM-2Ch inputs only). If multi-channel formats (such as Dolby/DTS or multi-channel PCM audio) are used, the analog
output is muted and volume control has no effect on the embedded output.
Connect to a network (DSC 401 A only, optional) — For remote control, connect the unit to a network via the RJ-45
6.
LAN/PoE connector (
and 401 A web page. The LAN port supports PoE, which allows PoE network equipment to power the DSC 401 A.
An external power supply is not required for a DSC 401 A using PoE.
NOTE:
If not using the provided pre-wired power supply, wire a 2-pole
7.
captive screw connector (provided) to your power supply as
shown in the image at right.
Front Panel Overview
B B B
R
CONFIG
A A A
A
Power and Reset LED
B
Reset button
C
USB Config port
Front Panel — DSC 401
Figure 4.
NOTE:
Figure 4 shows the front panel of a DSC 401. The DSC 401 A front panel is identical except for the product name
(DSC 401 A) in the lower-right corner.
A
Power and Reset LED — This bicolor LED lights amber when the unit is powered on but no signal is present, blinks amber
every 3 seconds when the unit is in standby mode, and lights green when both power and an input video signal are present.
Reset
While the
button (see figure 4,
indicate the level of reset initiated if the button is released and momentarily pressed again at that point.
B
Reset button — Press this recessed button to access reset modes 1 (reset to factory firmware version), 4 (reset includes IP
defaults), and 5 (absolute system reset, including IP settings, user-defined settings, and user files).
C
USB Config port — Connect a host to this USB-C configuration port for device configuration with PCS or Toolbelt, control,
file transfer, or firmware updates.
D
Status LEDs — These green LEDs light to indicate the following:
•
Signal In — An input signal is present.
•
HDCP In — The input signal is HDCP-encrypted.
•
HDCP Out — The output signal is HDCP-encrypted.
2
No Ground Here
Tip
Sleeves
Tip
No Ground Here
Unbalanced Audio Output
F
), enabling configuration of the DSC via SIS commands, PCS or Toolbelt software, or the DSC 401
C C C
D D D
E E E
STATUS
MENU
SIGNAL IN
HDCP IN
HDCP OUT
ENTER
D
Signal Status LEDs
E
Menu and Enter buttons
F
Navigation buttons
B
) is pressed and held, this LED blinks after 6 seconds, then again after 9 seconds to
E
on the previous page) for balanced or unbalanced stereo or mono
Heat
Shrink
(5 mm) Max.
F F F
HOLD
FOR 1080p/4K
DSC 401
7/8"
(22 mm)
Captive Screw Connector
1/8"
(3 mm)
3/16"
Tie Wrap
