3-POINT HITCH CONTROL SYSTEM

HYDRAULIC UNIT

IMPORTANT :
• Do not operate the hydraulic unit until the
engine is warmed up. If operation is attempted
when the engine is still cold, the hydraulic
system may be damaged.
• If you hear noises when implement is lifting
after the hydraulic-control-lever
activated, the hydraulic mechanism is not
adjusted properly.
hydraulic unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
3-POINT HITCH CONTROL
SYSTEM
WARNING
To avoid personal injury or death:
• Before using the 3-point hitch controls, make
sure that no person or object is in the area of
the implement or 3-point hitch.
• Do not stand on or near the implement or
between the implement and tractor when
operating the 3-point hitch controls.

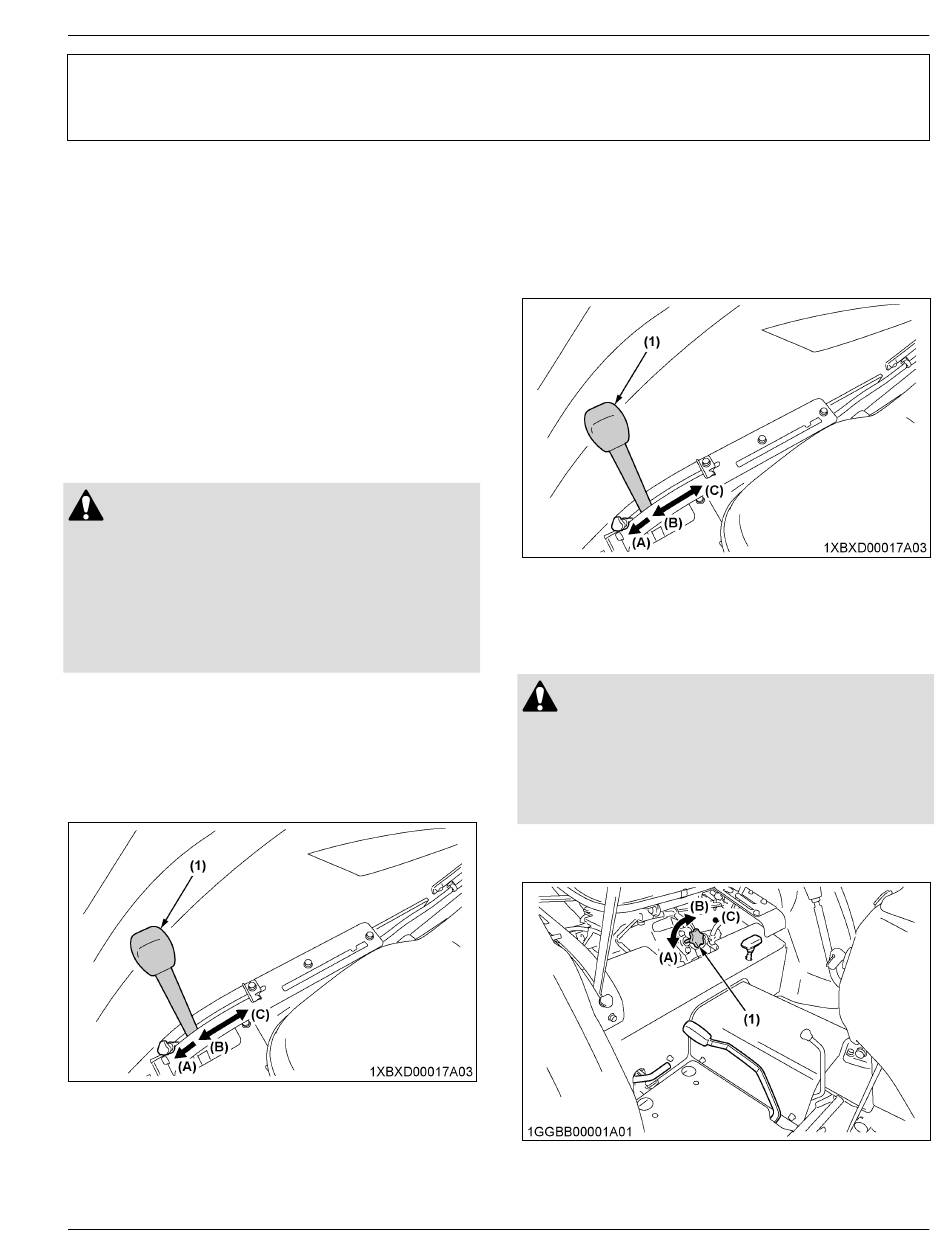

1. Position control of 3-point hitch
mounted implement
Position control will control the working depth of 3-point
hitch mounted implements regardless of the amount of
pull required.
(1) Position control lever
L2501
has been
Unless corrected, the
(A) Float
(B) Down
(C) Up
2. Float control of 3-point hitch
mounted implement
Place the position-control-lever in the float position to
move the lower links freely along with the ground
conditions.
(1) Position control lever

3. 3-point hitch lowering speed

WARNING
To avoid personal injury or death:
• Fast lowering speed may cause damage or
injury. You should adjust the lowering speed of
3-point hitch mounted implement to 2 or more
seconds.
You can control the lowering speed of the 3-point hitch
by adjusting the 3-point hitch lowering speed knob.
(1) 3-point hitch lowering speed
knob
HYDRAULIC UNIT
(A) Float
(B) Down
(C) Up
(A) Fast
(B) Slow
(C) Lock
63
