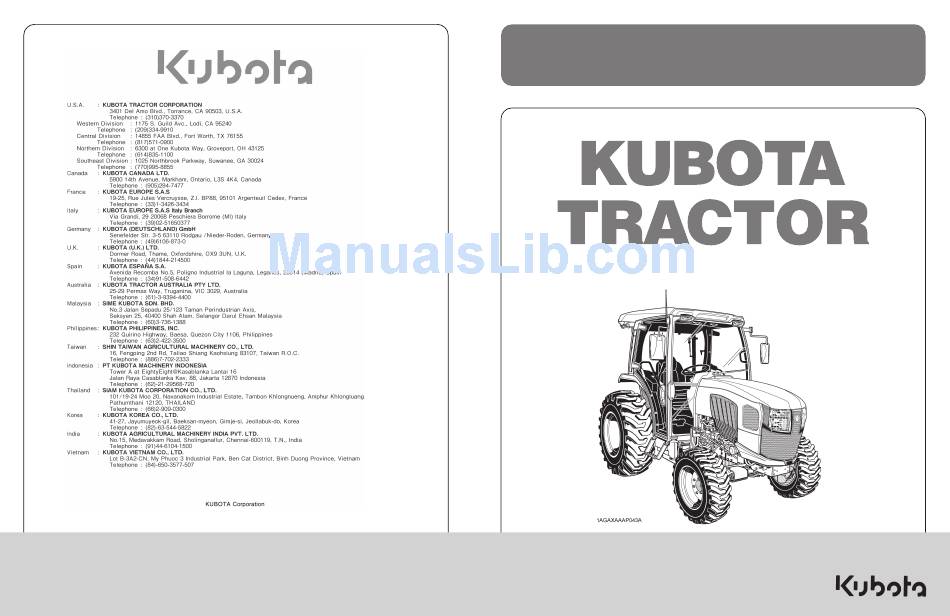

- Page 1 OPERATOR'S MANUAL MODELS L3560·L4060·L4760 L5460·L6060 · · · · English (U.S.A.) Code No. TD350-7956-2 READ AND SAVE THIS MANUAL PRINTED IN JAPAN © KUBOTA Corporation 2012...
- Page 2 Definitions KUBOTA Corporation is ··· 2 Wheel Drive 4 Wheel Drive Since its inception in 1890, KUBOTA Corporation has grown to American Petroleum Institute rank as one of the major firms in Japan. ASABE American Society of Agricultural and Biological Engineers, USA...
- Page 3 FOREWORD Thank you very much for choosing the L series tractor with CAB. This operator's manual covers the operation, inspection and preventive maintenance instructions that are specific to the L series CAB models. For other information and instructions, refer to the separately issued operator's manual for their sister models.
-
Page 4: Table Of Contents
CONTENTS SAFE OPERATION .................... SPECIFICATIONS....................... 1 SPECIFICATION TABLE ..................1 CAB OPERATION ....................... 3 DOOR AND WINDOW ..................... 3 Locking and Unlocking the Door..................3 Opening the Door ......................3 Rear Window ........................3 Side Window........................4 Emergency Exit.........................4 DOME LIGHT......................4 Dome Light ........................ - Page 5 CONTENTS Adding Washer Liquid..................... 14 Checking the Amount of Refrigerant (gas) ..............14 APPENDICES......................15 INDEX ........................15...
-
Page 6: Safe Operation
SAFE OPERATION SAFE OPERATION Careful operation is your best insurance against an accident. Read and understand carefully this section of the separately issued operator's manual before operating the tractor. B DANGER, WARNING AND CAUTION LABELS... - Page 7 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels from your local KUBOTA Dealer. 4. If a component with danger, warning and caution label (s) affixed is replaced with new part, make sure new label (s) is (are) attached in the same location (s) as the replaced component.
-
Page 8: Specifications
SPECIFICATIONS SPECIFICATIONS SPECIFICATION TABLE L3560 L4060 L4760 L5460 L6060 Model Model D1803-CR-E4 V2403-CR-E4 V2403-CR-TE4 Type Direct injection vertical, water-cooled, 4-cycle diesel Number of cylinders Total displacement L (cu. in.) 1.826 (111.4) 2.434 (148.5) Bore and stroke mm (in.) 87 x 102.4 (3.4 x 4.0) - Page 9 17.7 (180) (kgf/cm ) SAE 1-3/8, 6 splines PTO/ Rear PTO Engine 540/2426 540/2476 540/2403 speed USA No.5 (KUBOTA 10-tooth) involute spline MID-PTO PTO/ (if equipped) Engine 2000/2451 2000/2502 2000/2429 speed NOTE : *Manufacturer's estimate The company reserve the right to change the specifications without notice.
-
Page 10: Cab Operation
CAB OPERATION CAB OPERATION DOOR AND WINDOW BLocking and Unlocking the Door From the outside ..Insert the key into the door lock. Turn the key clockwise to unlock the door. To lock the door, turn the key in the opposite direction. The key can be removed when it is in the vertical direction. -
Page 11: Side Window
CAB OPERATION WORK LIGHT BSide Window BWork Light Switch Pull the side window handle and push the side window to Turn on the key switch and press the top half of the work open the window. light switch. The work light and the switch's indicator light up. -
Page 12: Rear Work Light (If Equipped)
CAB OPERATION BRear Work Light (if equipped) BUsing the Wipers in Cold Season 1. While not used in cold season, keep the wiper blades off the windshield to prevent them from being stuck with ice. 2. If the windshield is covered with snow, scrape it off the windshield before using the wipers. -
Page 13: Air Control Vent
CAB OPERATION C Side air outlet and door air outlet The side and door air outlets can be adjusted to direct air on to the operator, door window or the rear of the CAB. (A) Fresh air inlet (1) Side air outlet BAir Control Vent (2) Door air outlet C Front air outlet... -
Page 14: Control Panel
CAB OPERATION BControl Panel C Recirculation / fresh air selection switch Each time the switch is pressed, the air flow position changes for "RECIRCULATION" or "FRESH AIR". An indicator light will light up when the switch is set to "RECIRCULATION". And the indicator light will be off when the switch is set to "FRESH AIR". -
Page 15: Operation
CAB OPERATION C Cooling or dehumidifying-heating 1. Set the recirculation / fresh air selection switch to the BOperation "FRESH AIR" position. To lower the temperature in the C Heating CAB quickly, set this switch to the "RECIRCULATION" 1. Set the recirculation / fresh air selection switch to the position. - Page 16 CAB OPERATION C Foot warming and head cooling C Defrosting or demisting 1. In the cooling or dehumidifying-heating mode, set the To defrost or demist the windshield, take the following temperature control dial at the center position area. steps. 2. Open the front air outlet and the door air outlet direct it 1.
-
Page 17: Rear / Side Defogger With Timer (If Equipped)
CAB OPERATION REAR / SIDE DEFOGGER WITH TIMER (if equipped) To activate the rear / side window defoggers, press the switch marked while the key switch is in the "ON" position. Then, the yellow light on the switch turns on. After about 15 minutes, the defoggers automatically turn off as well as the yellow light. -
Page 18: Maintenance
MAINTENANCE MAINTENANCE SERVICE INTERVALS (Only the Check Points for Tractors with CAB) Indication on hour meter Ref. Items Daily Interval page Clogging of air conditioner condenser Clean screen Tension of air conditioner drive belt Adjust every 200 Hr Clogging of inner air filter Clean every 200 Hr Clogging of fresh air filter... -
Page 19: Periodic Service
PERIODIC SERVICE PERIODIC SERVICE DAILY CHECK EVERY 200 HOURS BCleaning Air Conditioner Condenser BCleaning Inner Air Filter Screen Press the inner air filter in the arrow-marked directions to unlock it and remove the inner filter, and blow air from the direction opposite to the filter's normal air flow. -
Page 20: Checking Air Conditioner Condenser
1. Check to see that all lines and hose clamps are tight and not damaged. 2. If hoses and clamps are found worn or damaged, consult your local KUBOTA Dealer for this service. BChecking CAB Isolation Cushion Check the cushion for any breakage or fatigue. Replace them if they are deteriorated. -
Page 21: Service As Required
A Do not disconnect any part of the refrigeration circuit of the air conditioning system. Consult BLubricating Points your local KUBOTA Dealer for assistance and service. A shortage of refrigerant impairs the air-conditioner performance. Check the following points. If it is indicated that the amount of refrigerant is extremely low, ask your dealer to inspect and charge. -
Page 22: Appendices
APPENDICES APPENDICES INDEX Air Conditioner Condenser ......13 Air Conditioner Condenser Screen....12 Air Conditioner Hose ........13 Air Control Vent ..........6 Air-Conditioner Belt Tension ......13 Air-Conditioner Pipe and Hose.......13 Airflow...............5 CAB Isolation Cushion ........13 Control Panel............7 Dome Light ............4 Door..............3 Door..............3 Electrical Outlet ..........10 Emergency Exit ..........4 Fresh Air Filter..........12 Front Wiper / Washer Switch......5...
