Component replacement instructions
hms Anybus X-gateway AB7xxx
1.5
4
2. Then read in the type of X-gateway online (configuration). (Upload)
3. Now enter the quantity of Input I/O_data and Output I/O_data.
4. Then set the X-gateway for your application by transferring (down-
loading) the configuration.
5. The module is now fully configured and you can terminate the con-
nection to the module.
6. Finally, it is imperative you save this configuration to the hard
drive. This should be a file with the extension .hcg. The file name
should correspond to the project.
See also
 Example: CANopen – Modbus-TCP [➙ 4]

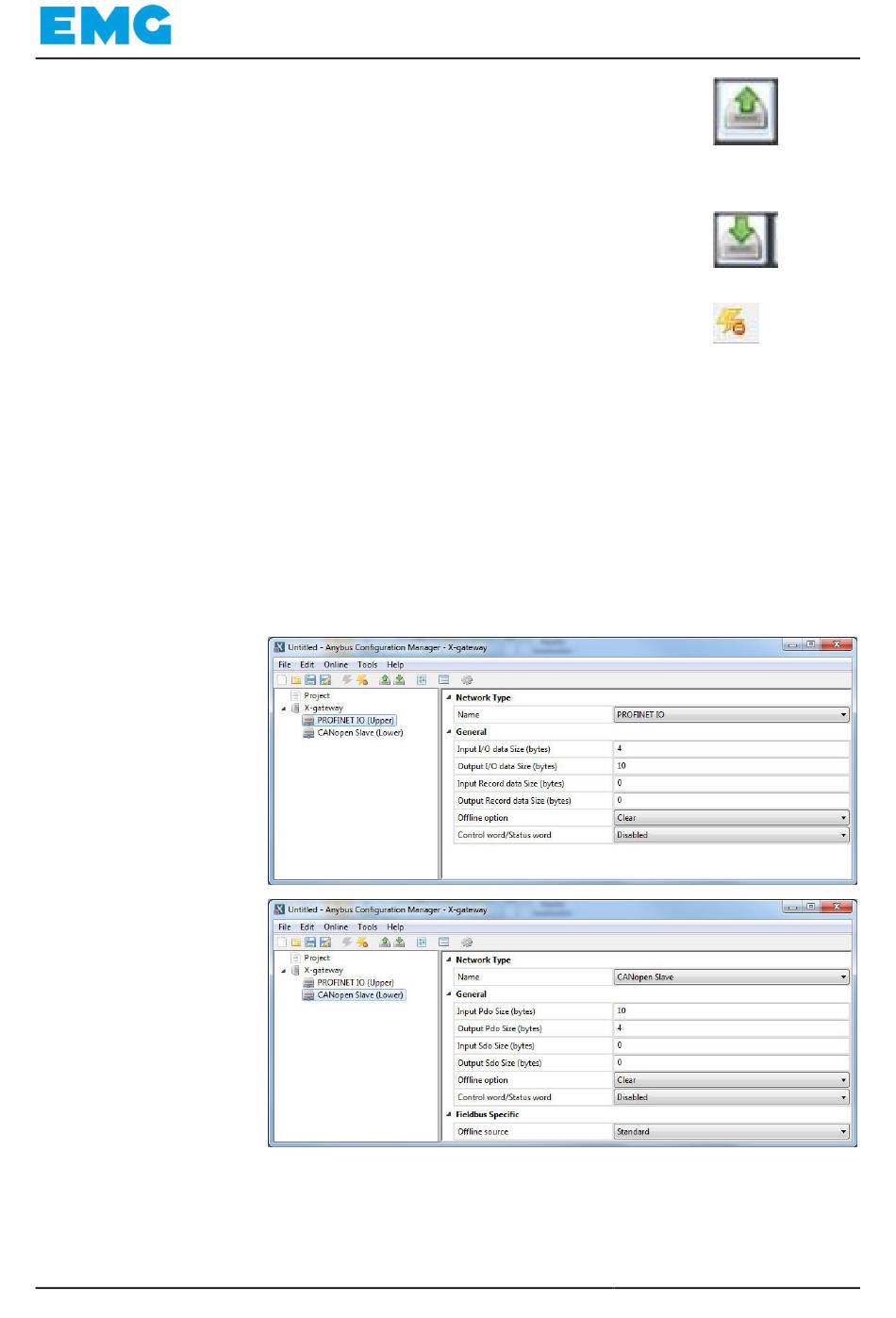

Example: CANopen – Modbus-TCP
A configuration via Modbus-TCP to ProfiNet with two data words (4 bytes) as the out-
put from the Modbus master and 6 data words (12 bytes) as the input to the Modbus
master.
1.
2.
BW_hms Anybus X-gateway_01_en
UPLOAD
DOWNLOAD
DISCONNECT
