Summary of Contents for HMS Anybus X-gateway AB7 Series

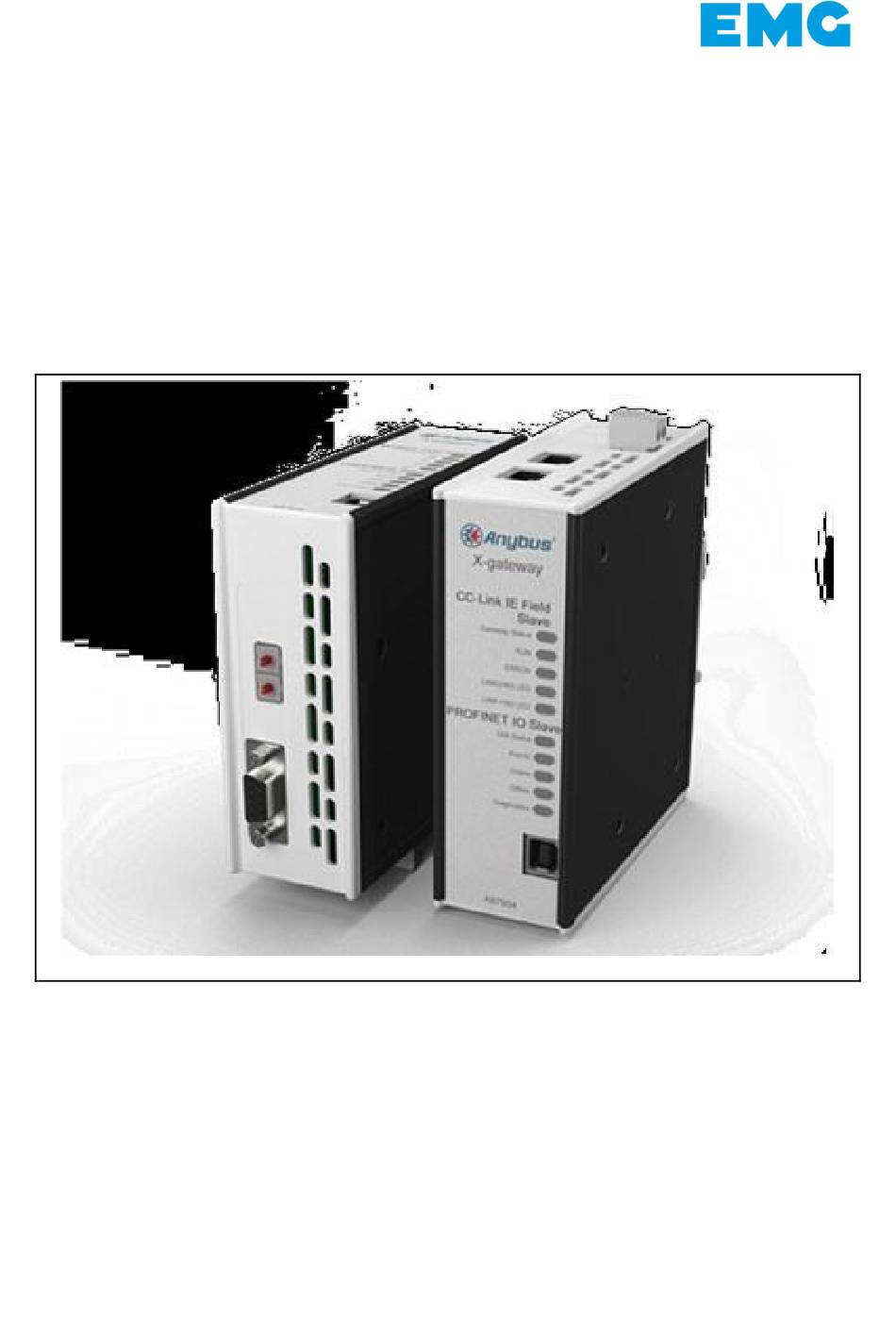

- Page 1 Component replacement instructions hms Anybus X-gateway AB7xxx BW_hms Anybus X-gateway_01_en Document-ID: EMGDES-00010768...
- Page 2 Table of contents hms Anybus X-gateway AB7xxx Table of contents Component replacement instructions Unpacking the new gateway Removing the old gateway Installing the new gateway Configuring the new Anybus X-gateway Example: CANopen – Modbus-TCP BW_hms Anybus X-gateway_01_en EMG Automation GmbH...
- Page 3 Component replacement instructions hms Anybus X-gateway AB7xxx Component replacement instructions Unauthorised start-up/operation of the device by a third party WARNING may result in death or serious bodily injury. The device must be de-energized. Cordon-off access routes during repair work (for example, red/white tape)! Tools required: ▪...
- Page 4 Component replacement instructions hms Anybus X-gateway AB7xxx Then read in the type of X-gateway online (configuration). (Upload) UPLOAD Now enter the quantity of Input I/O_data and Output I/O_data. Then set the X-gateway for your application by transferring (down- loading) the configuration.
