HMS ABC-LON-RTU SLAVE Pocket Manual

HMS ABC-LON-RTU SLAVE Pocket Manual

Lonworks to modbus rtu

Advertisement

Quick Links

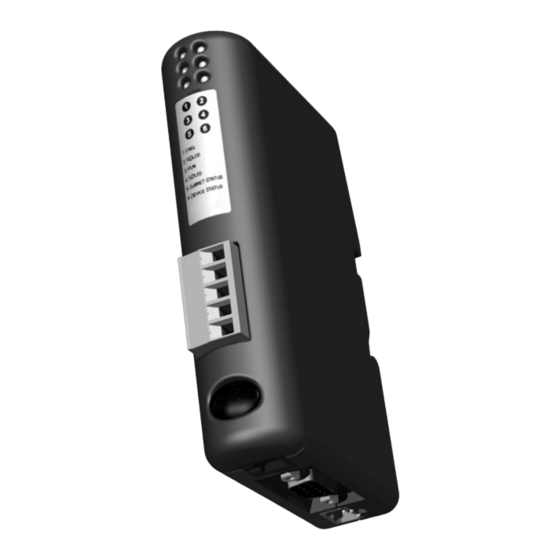

LED
Description
Color
No.
1.
Service
Green
2.
Wink
Red
3.
Not used
-
4.
Module Status
Green/Red
5.
Modbus activity
Green/Red
6.
Confi g error
Green/Red
Function
Flashing Green:
This node has an application but is not
yet installed in a network (unconfi gured).
Off:
This node is confi gured and installed in a
network.
Solid Green:
This node is unconfi gured and
applicationless. Indicates errors detected
by the Neuron Self-Test routine.
Off:
Normal state
Flashes Red:
A wink command is received on the
LonWorks network.
-
Solid Green:
The module has been initiated correct
and is working ok.
Flashes Red:
Software error. Restart the module.
Solid Red:
A hardware error has occurred.
Solid Red:
at start and if no Modbus messages have
been received for more than 5 sec.
Solid Green:
after receiving correct Modbus message
and correct start-up
Solid Green:
Normal state
Flashes Red:
No confi guration saved in the gteway
LonWorks to Modbus RTU
LonWorks to Modbus RTU
HMS Industrial Networks
Germany
+49 - 721 - 96472 - 0
Japan
+81 - 45 - 478 - 5340
Sweden
+46 - 35 - 17 29 20
U.S.A
+1 - 773 - 404 - 2271
Pocket Guide
Gateway
DOC. ABC-LON-RTU SLAVE
sales-ge@hms-networks.com
sales-jp@hms-networks.com
sales@hms-networks.com
sales-us@hms-networks.com
Rev 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the ABC-LON-RTU SLAVE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HMS ABC-LON-RTU SLAVE

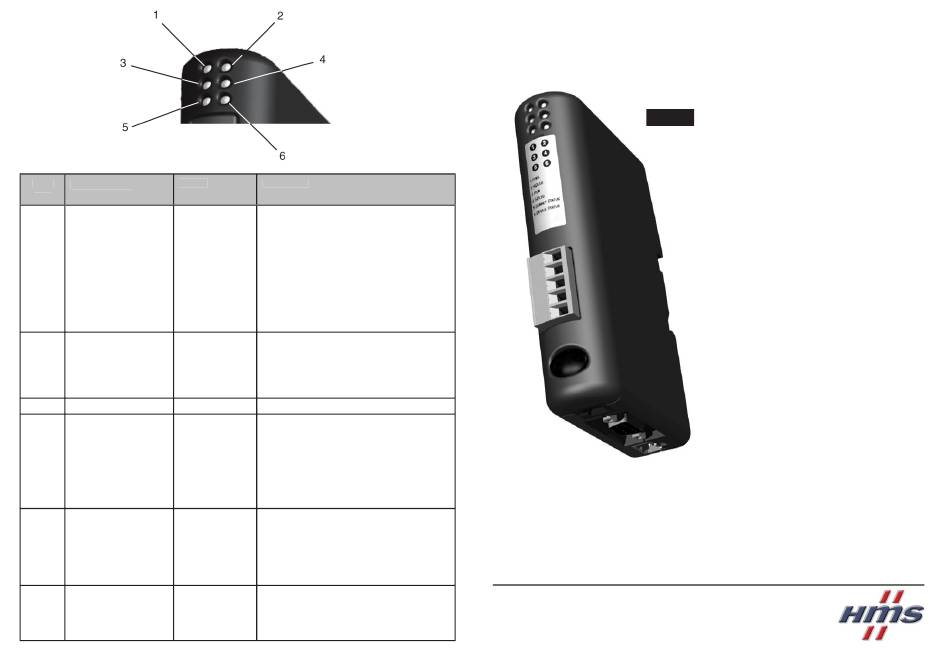

  • Page 1 Pocket Guide LonWorks to Modbus RTU LonWorks to Modbus RTU Gateway Rev 1.0 DOC. ABC-LON-RTU SLAVE Description Color Function Service Green Flashing Green: This node has an application but is not yet installed in a network (unconfi gured). Off: This node is confi gured and installed in a network.
