  • Page 1 Design. Uniqueness. Innovations Design. Uniqueness. Innovations SL-10N Cloud Technical support User manual 1-36 Инструкция по эксплуатации 37-72...
  • Page 2: Table Of Contents

    This manual can contain some inaccuracy or misprint. The owner reserves the right to 3. Description..................................... make corrections to the information described in the user manual and device package. 4. Installation....................................The last revision of this manual is available on www.slinex.com 4.1. Cable requirements............................. 4.2. Schematic diagrams............................Safety instructions 4.3.
  • Page 3: Package

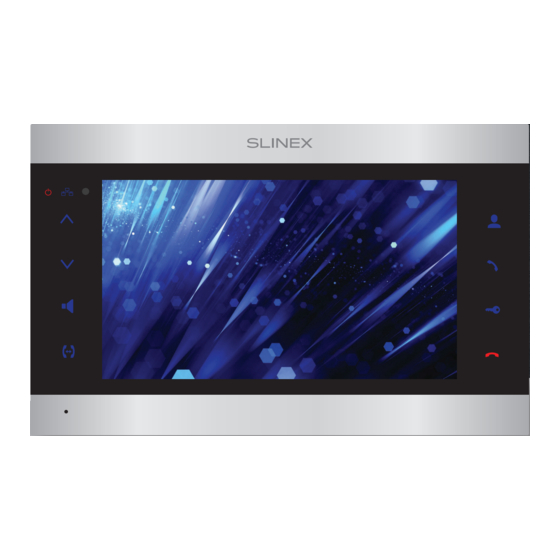

    SL-10N Cloud 3. Description 1. Package SL-10N Cloud indoor monitor − 1 pc. Wall mounting bracket − 1 pc. RJ-45 connector − 1 pc. Connection wires − 1 pkg. Mounting screws and nuts − 1 pkg. User manual − 1 pc.
  • Page 4: Installation

    4.2. Schematic diagrams 4.1. Cable requirements Diagram 1. SL-10N Cloud, outdoor panels and cameras connection. Disconnect all power cables before device installation. able type that is used for device connection depends on the distance between the last indoor monitor in...
  • Page 5: Unit Mount

    SL-10N Cloud Diagram 2. SL-10N Cloud and Sonik 7 system connection. 4.3. Unit mount 1) Take the surface mount bracket from the kit and place it on 150-160 cm height. 2) Mark and drill four halls in the wall. 3) Take four anchors from the kit and hammer them into the drilled halls.
  • Page 6: Operation

    SL-10N Cloud 5.2. Door panel and camera image monitoring 5. Operation 5.1. Incoming call Standby mode Standby mode Press «Monitor» Monitor will show button on the the image from the monitor rst door panel Visitor presses call button Visitor presses call button...
  • Page 7: Incoming Call Redirection

    SL-10N Cloud Notes: 5.4. Intercom If several monitors are connected into one system, the user can view the image from outdoor panels Two monitors connected into one system are used. using any monitor inside this system. The image will be transferred from the «Master» monitor outdoor panels to the «Slave»...
  • Page 8: Tool Bar

    SL-10N Cloud 6.2. Tool bar 6.3.1. System settings In standby or monitoring mode swipe any direction of the screen to enable the tool bar: Press icon on the tool bar to enter monitor settings, then press icon to enter system settings.
  • Page 9: Outdoor Panel Settings

    SL-10N Cloud Settings → System → Encode 6.3.2. Outdoor panel settings REC select − recording resolution (1080P or D1 ); Press icon on the tool bar to enter monitor settings, then press icon to enter outdoor panel Coding quality − video stream encoding rate (Optimal, Good or General);...
  • Page 10: Network Settings

    SL-10N Cloud Custom MP3 ringtone Voice mail Create «RING» folder in the root of SD card. Paste MP3 files you would like to use as a ringtone into this folder. File names should have only English letters and figures in its names and its quantity should not...
  • Page 11: Motion Detection Settings

    SL-10N Cloud Network IPC Device Settings Channel Wi-Fi Basic Device ID IPCAM_1 IPCAM_2 Settings ONVIF Advanced IP address RTSP 192.168.001.150 192.168.001.155 Mobile phone Port User Network Admin Admin Password ******** ******** Network Status Disconnect Advanced Advanced Advanced Search Save ONVIF Settings →...
  • Page 12: Schedule Settings

    SL-10N Cloud Software motion detection has a number of settings described below: Alarm Settings → Alarm → Motion Channel − current channel number for making settings (1,2,3,4 or All); Channel Motion Settings I/O alarm status Sensitivity − software motion detection sensitivity (from 1 to 8);...
  • Page 13: Accounts Settings

    SL-10N Cloud Choose one of the schedule types under schedule table and then click on the time you want to apply this 6.3.7. Maintenance settings type of setting in the schedule table. One square in the schedule table matches one hour time interval.
  • Page 14: Device Information

    SL-10N Cloud Settings → Maintenance → Upgrade 6.4. Playback Copy upgrade file to the root folder of SD card, insert SD card into the monitor slot and press Upgrade Swipe any direction of the screen to enable the tool bar, then press icon to enter playback menu.
  • Page 15: Volume Control

    Choose desired volume and press «OK» button to save settings or «Cancel» button to discard SL-10N Cloud changes. Android / iOS Volume setting Volume Diagram 2. SL-10N Cloud wireless Wi-Fi network connection. Cancel 6.7. Image zooming Router Internet Swipe any direction across the screen to enable tool bar and press icon to activate zooming mode.
  • Page 16: Creating New Account

    IP address. 6) Enable «Next step» switch then press «Next» button. Network devices search will be started; 7) Choose SL-10N Cloud device in the list and it will be paired to the current account of the «Smart Call» application.
  • Page 17: Wireless Wi-Fi Network Connection Steps

    SL-10N Cloud 8.3. Wireless Wi-Fi network connection steps Outdoor panel 1 1) Swipe any direction across the moitor screen to enable the tool bar. Press icon on the tool bar to Outdoor panel 2 enter monitor settings, then press icon to enter network settings. Choose «Advanced» bookmark Camera 1 and enable Wi-Fi adapter by the switch on the right.
  • Page 18: Sharing With Other Devices

    SL-10N Cloud 8.5. Sharing with the other devices 8.6. Noti cation messages The account, device is added for the first time, is master account. This account has master permissions and Press «Me» bookmark on the bottom of the main screen, then press icon on the right upper corner of can change all the settings.
  • Page 19: Limited Warranty

    SL-10N Cloud 9. Limited warranty Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. Warranty period is 12 months from the moment of the product purchasing (warranty period could be extended up to 24 months or more, depending on the local regulations).
  • Page 20 SL-10N Cloud ................................39 .................................. 39 ....................................40 ....................................41 -10 ˚C +55 ˚C. 4.1................................ 41 4.2............................42 4.3..................................44 ..................................45 5.1..........................45 5.2..........................46 5.3............................ 47 5.4..............................48 ..............................48 6.1.
  • Page 21 SL-10N Cloud SL-10N Cloud − 1 − 1 RJ-45 − 1 − 1 − 1 − 1 304 мм мм 10”, IPS (16:9) 1024×600 « » – AHD 1080p (2 ), AHD 720p , ~100-240 ), CVBS (PAL NTSC) «...
  • Page 22 SL-10N Cloud 4.2. SL-10N Cloud. 4.1. • 0,22 • 0,41 • 0,75 Замок Адаптер питания замка 0 - 50 RJ-45 RJ-45 50 - 80 0,75 RG-59 RG-6 Вызывная панель 1 SL-10N Cloud 80-100 Датчик движения RG-59 RG-6 Камера 2 Камера 1 Датчик...
  • Page 23 SL-10N Cloud 4.3. SL-10N Cloud SL-07M. 150-160 +13,5 RJ-45 SL-07M (Дополнительный) SL-10N Cloud (Основной) SL-07M (Дополнительный) « » SL-10N Cloud +12-14 . ~100-240...
  • Page 24 SL-10N Cloud 5.2. 5.1. « » « » « » « », « » « » « » – 120 « », « » « » « », « », –...
  • Page 25 SL-10N Cloud 5.4. « » 5.3. « » « » « », « » « », 6.1. « »,...
  • Page 26 SL-10N Cloud 6.2. 6.3.1. « » → → − − D1); − Основные настройки Основные Система Язык РУССКИЙ настройки Время Доп. монитор Кодировать Заставка Digital Отображать Система 6.3. Система Admin. : 888888. «OK» → → − − Основные настройки −...
  • Page 27 SL-10N Cloud → → 6.3.2. − (1080P D1 ); − « » → → − 25). − LED − Кодировать − − Выбор записи 1080P Основные Система 1080P: настройки Время Качество кодирования Оптимально Настройка панели Кодировать Частота кадров Запись звонка...
  • Page 28 SL-10N Cloud Настройка ГС «RING». Канал Основные Основные ГС вкл./выкл. Вкл. настройки Настройка ГС Пользов. дверь Звонок Пользов автоотв. → → «MP3» Время 60 сек Пользов ГС Пользов. дверь Панель 6.3.3. Настройка ГС « » → → → → −...
  • Page 29 SL-10N Cloud → → → → → ONVIF Wi-Fi − Wi-Fi − enable/disable IP camera display for the current video channel; Wi-Fi «Wi-Fi»; ID − RTSP − RTSP; − IP − push − « − ». − − Сетевые параметры...
  • Page 30 SL-10N Cloud 6.3.4. → → « » − « », « », « », − → → Настройки тревоги − Канал − Основные Движение Тип контакта НЗ − настройки Датчики Запись − − Тревога push − push- Датчики Движение 6.3.5.
  • Page 31 SL-10N Cloud 6.3.7. « » – « » – « » « » – → → SD « » – − ) « » – − « », Формат , . . 00:00 01:00, – 23:00 00:00. Сохранить Основные –...
  • Page 32 SL-10N Cloud → → 6.4. Обновление Сервис Просмотр архива Основные Обновление настройки Обновление ПО Дата 17/09/2022 Время 00:00 23:59 Поиск Сброс Обновление Медиа Видео Канал Время Размер Тип Все 06:33:30-06:34:26 10.3M 06:34:26-06:35:31 11.4M 06:35:31-06:36:48 11.3M Вс Ср Сб Сервис Обновление...
  • Page 33 SL-10N Cloud 6.5. – SL-10N Cloud 22-23. Маршрутизатор Интернет 3G / Wi-Fi Smart call 6.6. SL-10N Cloud Android / iOS SL-10N Cloud Wi-Fi Настройки громкости Объем Отмена Маршрутизатор Интернет 6.7. 3G / Wi-Fi Smart call 6.8. SL-10N Cloud Android / iOS −...
  • Page 34 SL-10N Cloud «Google Play» ( Android) «Apple App Store» iOS), «Smart Call» 8.1. «Smart Call» « » « », « » « » « » « »; « » « ». « ». 8.2. CAT5 CAT6; « « »; «...
  • Page 35 SL-10N Cloud 8.3. Wi-Fi « » « », Wi-Fi, «Wi-Fi» « », Wi-Fi «OK». Skynet Пароль : 888888) 2-6, 8.2. 8.4. SL-10N Cloud SL-10N Cloud SL-10N Cloud Вверх Просмотр Вниз Ответить Громкость Влево Открыть Интерком Вправо Отбой...
  • Page 36 SL-10N Cloud 8.5. 8.6. « » « ». «Smart Call» «Smart Call» « ». « ». SL-10N Cloud « » « » SL-10N Cloud...
  • Page 37 SL-10N Cloud • • • . .; • • • . .,...
