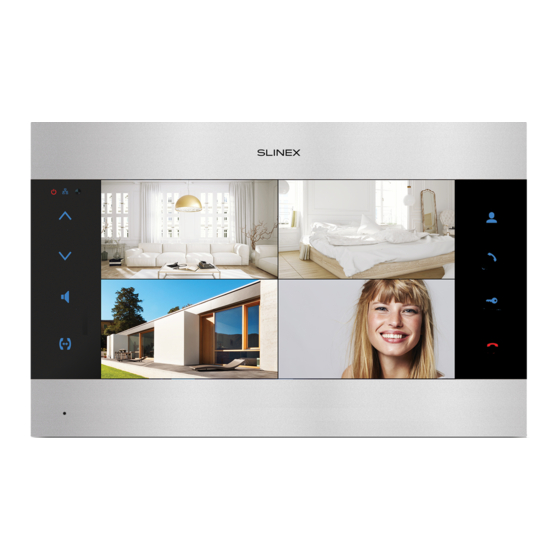

  • Page 1 SL-10IP DESIGN 10” video door phone DIRECT User manual Thank you for the choice of our equipment { Design. Uniqueness. Innovation }...

  • Page 2: Table Of Contents

    This manual can contain some inaccuracy or misprint. The owner reserves the right to 3. Description......................................4 make corrections to the information described in the user manual and device package. 4. Installation.......................................5 The last revision of this manual is available on www.slinex.com 4.1 Cable requirements...............................5 Safety instructions 4.2 Schematic diagrams..............................6 4.3 Unit mount ..................................8...

  • Page 3: Package

    DESIGN { Design. Uniqueness. Innovation } DIRECT 1. Package 3. Description SL-10IP door monitor − 1 pc. Wall mounting bracket − 1 pc. USB mouse − 1 pc. IR remote control − 1 pc. Connection wires − 5 pcs. Mounting screws and nuts − 1 pkg.

  • Page 4: Installation

    DIRECT 4.2 Schematic diagrams 4. Installation Diagram 1. SL-10IP door panels, cameras and locks connection. 4.1 Cable requirements Disconnect all power cables before device installation. This device can be connected with such cable types depends on the distance between door monitor and...

  • Page 5: Unit Mount

    DESIGN { Design. Uniqueness. Innovation } DIRECT Diagram 2. SL-10IP and SL-07M system connection. 4.3 Unit mount 1) Take the surface mount bracket from the kit and situate it 150-160 cm from the oor line. 2) Mark and drill four halls in the wall.

  • Page 6: Operation

    DESIGN { Design. Uniqueness. Innovation } DIRECT 5.2 Door panel and camera image monitoring 5. Operation 5.1 Incoming call Standby mode Standby mode Press «Monitor» Monitor will show button on the the image from the monitor rst door panel Visitor presses call button Visitor presses call button on the rst door panel on the second door panel...

  • Page 7: Incoming Call Redirection

    DESIGN { Design. Uniqueness. Innovation } DIRECT 5.4 Intercom Notes: If several monitors connected into one system, the user can view the image from door panels on any Two monitors connected into one system are used. monitor inside this system. The image will be transferred from the «Master» monitor door panels to the «Slave»...

  • Page 8: Tool Bar

    DESIGN { Design. Uniqueness. Innovation } DIRECT 6.2.1 Con guration settings 1. Click left mouse button on icon from instrumental panel to enter Press icon on the tool bar to enter con guration settings menu: con guration settings menu. 2. In con guration settings menu click left mouse button on any icon to enter Configuration Left mouse current sub menu settings.
  • Page 9 DESIGN { Design. Uniqueness. Innovation } DIRECT Network → Basic → Network type – IP address obtaining type (static or dynamic IP − DHCP) More detailed description of some parameters of «Con gurtion» settings menu is listed further. → MAC-address Network →...
  • Page 10 DESIGN { Design. Uniqueness. Innovation } DIRECT 6.2.2 Playback Scheduling Record schedule can be seted up on this screen. There are three types of schedule settings: «MD» – motion Click right mouse button to display instrumental panel. Then press icon to enter playback menu. detection recording (orange color in schedule table), «Normal»...

  • Page 11: Ring Settings

    DESIGN { Design. Uniqueness. Innovation } DIRECT 7.2 Security settings 6.2.4 Ring settings Browser setup for the remote access to the door phone includes next steps: Click right mouse button to display the tool bar. Then press icon to enter ring settings menu. Open Internet Explorer browser and press «Tools»...

  • Page 12: Network Settings

    DESIGN { Design. Uniqueness. Innovation } DIRECT 7.3 Network settings 2) Set appropriate IP address from the current network segment, subnet mask and gateway in the door phone settings (Con guration → Network → Basic). In the current example IP address can be set as Door phone remote access can be carried out through the Internet or local network connection.

  • Page 13: Real Time Monitoring, «Live» Bookmark

    DESIGN { Design. Uniqueness. Innovation } DIRECT 7.5 Web interface Main control panel is situated on the right side of the web interface window and has such buttons: Web interface web page consists of several bookmarks: LIVE – real time monitoring; Open lock Quad mode Snapshot...

  • Page 14: Remote Access Settings, «Remote Setting» Bookmark

    DESIGN { Design. Uniqueness. Innovation } DIRECT Slow Playing Time-lapse November 2015 Pause motion progress Volume Mo Tu We Th Fr Sa Su Zoom Playback Stop Accelerated Clip starting/ Download Snapshot playback ending time progress 7.5.3 Remote access settings, «REMOTE SETTING» bookmark. Press «REMOTE SETTING»...
  • Page 15 DESIGN { Design. Uniqueness. Innovation } DIRECT «RECORD SETTING» schedule recording settings «NETWORK SETTING» network parameters settings On the left side of the screen press «RECORD SETTING» to enter schedule recording settings. Here you can On the left side of the screen press «NETWORK SETTING» then select «NETWORK» to enter network enable or disable recording channels, set the schedule and recording type for every channel, such as parameters menu.
  • Page 16 DESIGN { Design. Uniqueness. Innovation } DIRECT «IP FIREWALL» IP rewall settings «SYSTEM INFO» system information On the left side of the screen press «NETWORK SETTING» then select «IP FIREWALL» to enter firewall On the left side of the screen press «SYSTEM INFO» to enter system information menu. Here you can see settings.

  • Page 17: Local Storage Settings, «Local Setting» Bookmark

    DESIGN { Design. Uniqueness. Innovation } DIRECT 7.5.4 Local storage settings, «LOCAL SETTING» bookmark «USER MANAGER» user accounts management Press «LOCAL SETTING» bookmark on the upper side of the screen to enter local storage settings. Here you On the left side of the screen press «USER MANAGER» to enter user passwords and permissions can change storage paths for every le type.

  • Page 18: Mobile Device Software

    { Design. Uniqueness. Innovation } DIRECT 8. Mobile device software Use twisted pair CAT5 or CAT6 cable or wireless Wi-Fi connection (not recommended) to connect SL-10IP video door phone to the local network. Application setup includes next steps: 1) Enter «GooglePlay» (for Android) or «AppStore» (for iOS) and search for «Slinex» application, then install this application on your mobile device.

  • Page 19: Limited Warranty

    DESIGN { Design. Uniqueness. Innovation } DIRECT 9. Limited warranty Manufacturer guarantees product normal functioning during the warranty period if the user keeps all safety instructions described in that manual. enable or disable Warranty period is 12 months from the moment of the product purchasing (warranty period could be notification extended up to 24 months or more, depending on the local regulations).
