Retrofitting the Outdoor Protective Enclosure

WCS3B-read heads using RS-485, SSI, and CANopen interfaces can be retrofitted with the
enclosure. Read heads with EtherNet/IP and PROFINET interfaces can only be used as pre-
assembled devices.
Note
When retrofitting your plant, make sure that you differentiate the mechanical outer dimensions
and the fixture for the outdoor protection enclosure from the standard read head.

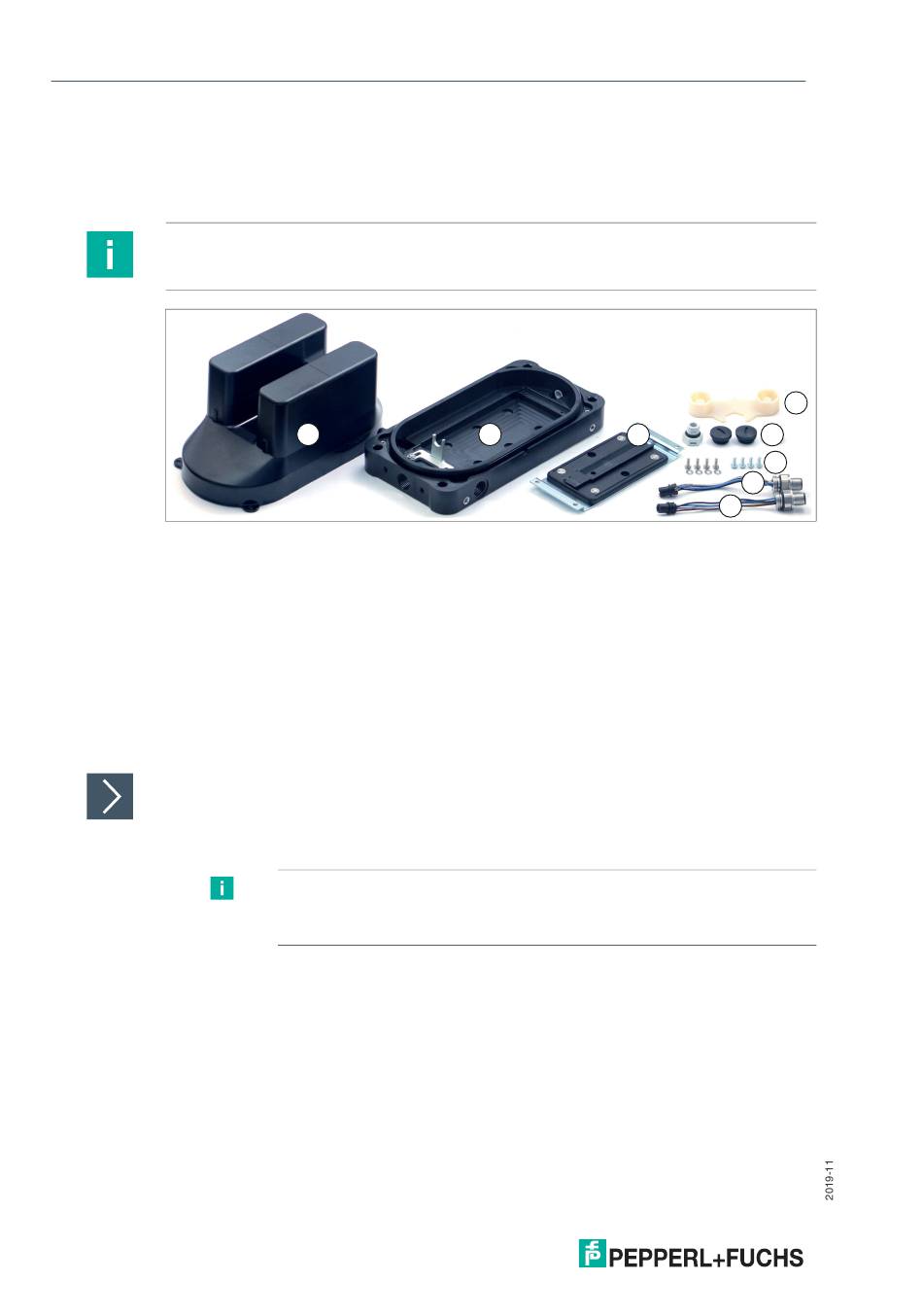

Figure 4.4
1 Protective cover
2 Protective lid
3 Mounting base
4 Special tool
5 Stopping plugs, pressure relief plugs
6 Fastening screws
7 Five-pin connection cable for RS-485 or CANopen
8 Eight-pin connection cable for SSI
Assembling the Protective Enclosure
1.
Loosen two screws on each lens.
2.
Remove the lens.
3.
Slide the mounting base over the dovetail groove of the read head. In the end position, the
spring tongue engages audibly in the quick-action lock.
20
1
Overview of mounting parts
Note
WCS2 read head: Phillips screws
WCS3 read head: Torx screws (T10)
2
3
4
5
6
7
8
