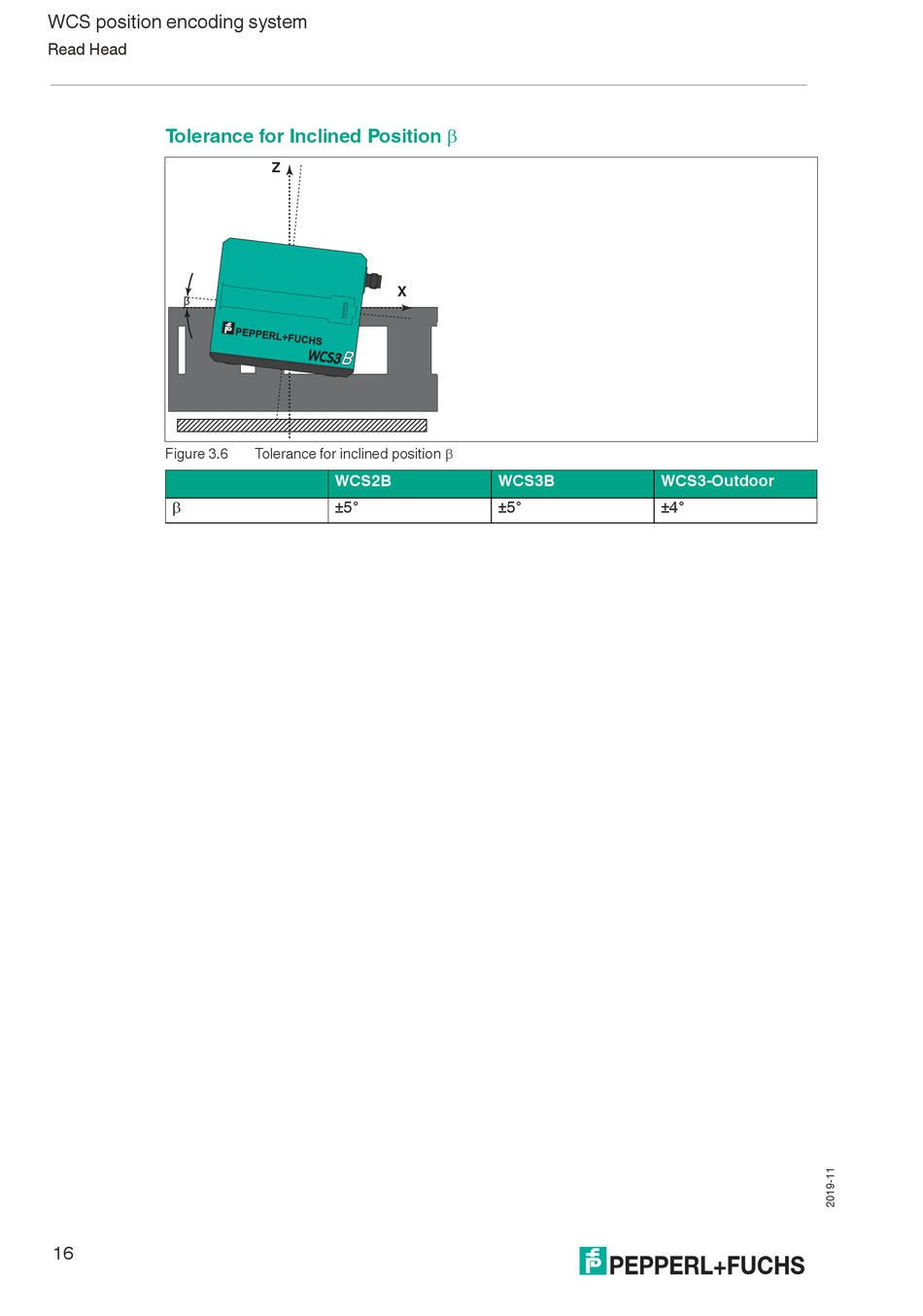

WCS position encoding system
Read Head
Tolerance for Inclined Position
β
Figure 3.6
16
Z
X
Tolerance for inclined position
WCS2B
±5°
WCS3B
WCS3-Outdoor
±5°
