Conversion Kit - Confer Plastics ROLLGUARD 7200 Assembly, Installation And Use Manual

Model #7200 "ROLLGUARD
Ladder must be attached to pool frame - DO NOT USE with soft-sided/inflatable pools.
If missing parts call - Toll free U.S./Canada -
800-635-3213 or www.conferplastics.com

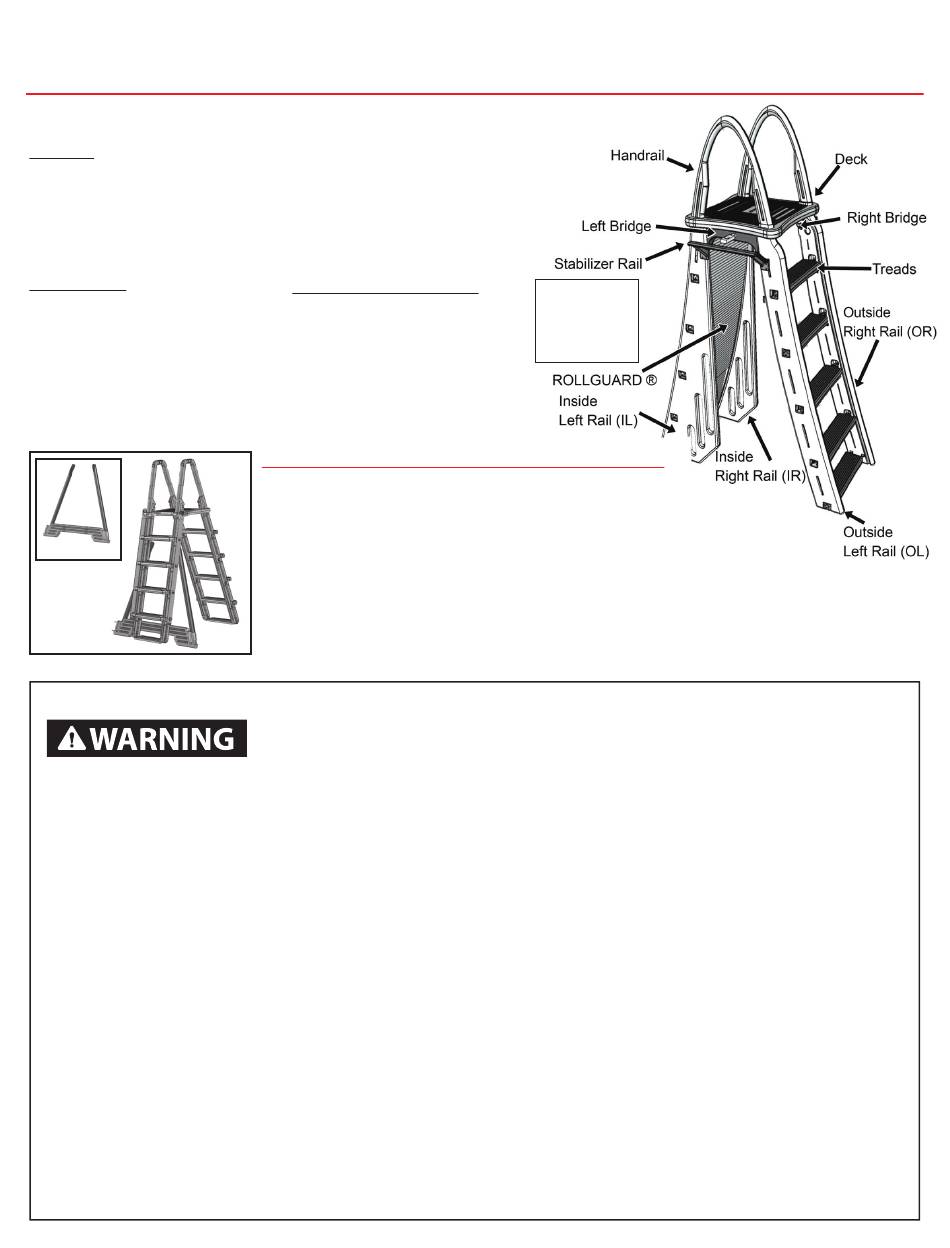

Parts List
4 - Handrail
1 - Deck
1 - Left Bridge with lock assembly
1 - Right Bridge
2 - Angled Stabilizer Rail
10 - Ladder Tread
Hardware Bag
4 - Plug
2 - 1/4" Flat Washer
10 - #10 x 1-1/4" Self Tapping Screws
4 - 1/4" Hex Nut
2 - 1/4 - 20 x 2-1/4" Pan Head Screws
2 - 1/4 - 20 x 1" Machine Screws
1 - Padlock
1 - Instruction sheet
LAK KIT
Check building codes/permitting. Consult your local Building Department before installation of your pool and
equipment. Pool/equipment installation must comply with the codes of the authority having jurisdiction and
may require permits (e.g., building, plumbing, electrical, zoning, etc.).
Use for intended purpose only
• Use only as a swimming pool ladder.
• This ladder is designed and manufactured for a specific pool wall height and/or deck of the pool - check
product specification and the height of your pool.
Check that you have all required parts. Check the contents of the carton with the Parts List for this ladder. All
parts and hardware are required. If any parts are missing, DO NOT attempt to assemble or install the ladder.
Instead, call Toll Free U.S. - 800-635-3213 or visit our web site at www.conferplastics.com for assistance.
Select an appropriate location - The ladder must be located on a level, solid base and in a location that will be
in full view of competent adult supervision when in use.
Follow all instructions
• For stable, correct assembly and installation, all instructions must be followed completely and in the
sequence shown.
• Follow the manufacturer's recommendations for the safe use of all hand tools and equipment used during
installation.
Cordless drill only - no corded drills near pool. Use a cordless drill for assembly and installation. To reduce the
risk of electrocution, NEVER use a corded drill in or around a pool.
Lift safely. When lifting awkward or heavy loads, have another person help you.
Double check after installation
• Before using the product, after assembly and installation, go over the instructions and procedures again to
make sure nothing has been overlooked.
• Make sure that safety labels are installed and legible.
2
1 - ROLLGUARD ®
1 - Outside Left Rail (OL)
1 - Outside Right Rail (OR)
1 - Inside Left Rail (IL)
1 - Inside Right (IR)
Tools Needed for Assembly
1 - Rubber Mallet
1 - Cordless Drill w/Phillips Driver
1 - Garden Hose
1 - 5/16" Drill Bit
1 - Phillips Screwdriver
1 - Pliers
OPTIONAL PRODUCTS AVAILABLE:
LADDER ADAPTER KIT
LAK kit fits Confer A-frame ladders for use with non-traditional
metal framed swimming pools with a wall height of 48" - 54".
Use with models: 7100b, 7100x, 7000b, 7200, 7000x and 8100x.
Not for use with inflatable pools.

CONVERSION KIT

To easily convert your A-frame ladder to a deck/inpool ladder order
our CK 7200 conversion kit. The kit includes all parts and hardware needed.
Deck cannot be higher than the pool top ledge.
Safe Installation
To reduce the risk of electrocution, drowning, entrapment, falls, or other serious
injury or death:
" A-FRAME LADDER
®
ANGLED
STABILIZER
RAILS MUST BE
INSTALLED...
SEE STEP 5
PICTURES 4 & 5
