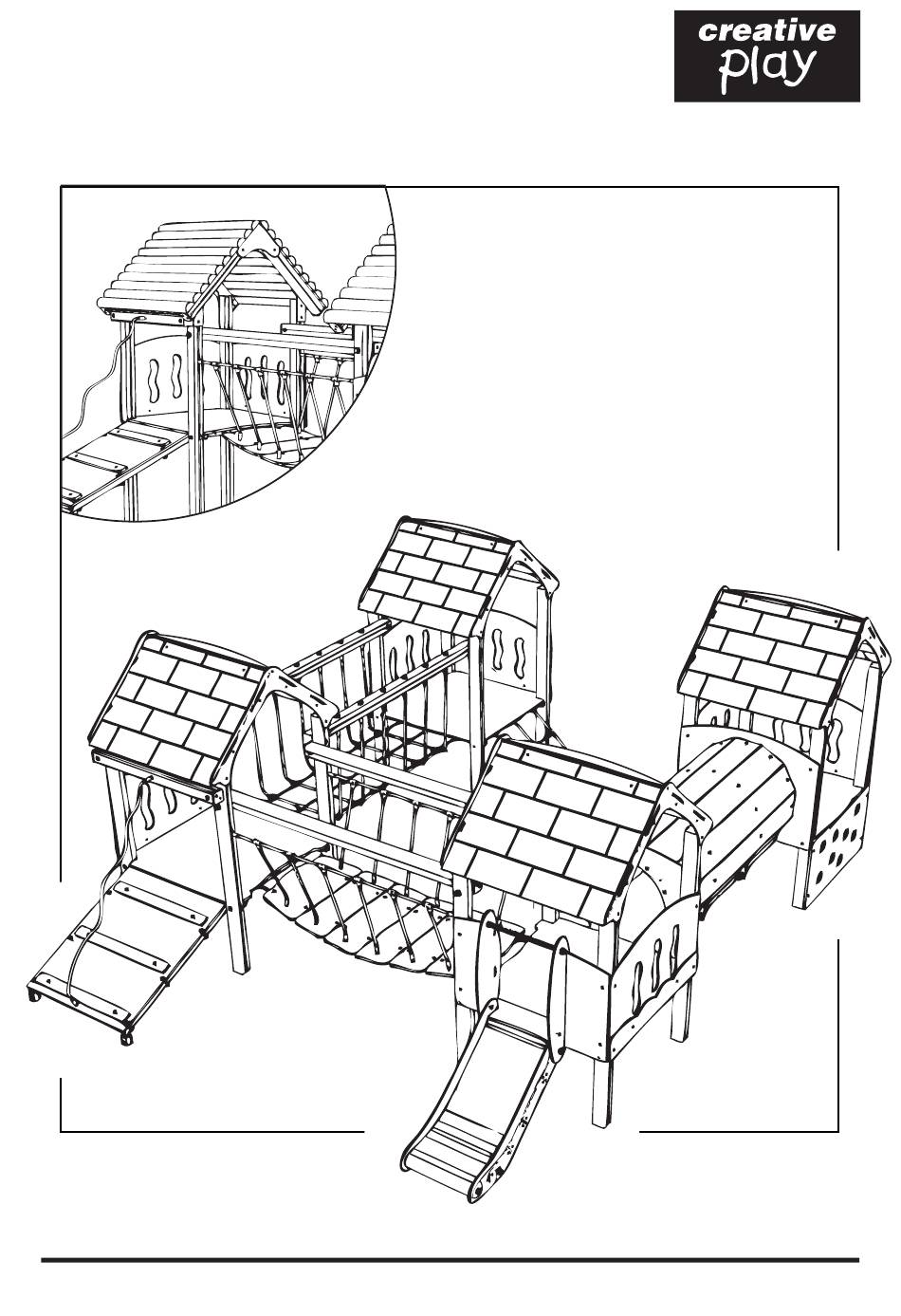

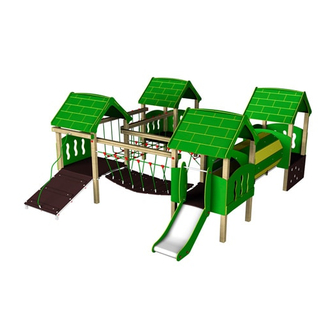

- Page 1 LILLIPUT PLAYTOWN FOUR Installation Instructions REF: L107 - LILLIPUT PLAYTOWN FOUR pg 1 of 22...
-
Page 2: Parts Required
PARTS required PARTS required (90 x 90 CLATTERBRIDGE FLOOR) (90 x 90 STANDARD FLOOR) (PRE-ASSEMBLED PANEL) (TOWERS STANDARD FLOOR 90x90) (LILLIPUT CLIMBING WALL) (RAMP METAL FRAME) (RAMP HEX) (RAMP PULL ROPE) LEFT (SLIDE SIDE) (SLIDE METAL FRAME) RIGHT (SLIDE SIDE) REF: L107 - LILLIPUT PLAYTOWN FOUR pg 2 of 22... - Page 3 PARTS required PARTS required (SLIDE CLIPS) (0.6m SLIDE) (NET CLIMBER) (CLIMBER GROUND ANCHOR) (CLATTERBRIDGE) (NET TUNNEL) (5B- TORKTAINER) (N4 - TORKTAINER) (M12 ´NYLOC´) (M12 x 200SQUARE CUP HEX BOLTS) (Covered Ends) (M12 x 150 SQUARE CUP HEX BOLTS) (M12 x 100 SQUARE CUP HEX BOLTS) (FM40‘...
- Page 4 PARTS required (CRAWLING TUNNEL) PARTS required (CENTRAL HEX RINGS) (PLAYTEC TUNNEL ENTRANCES) (PLAYTEC SLAT) (HEX FLOOR) (FIRST/LAST PLAYTEC SLAT) (PLAYTEC CLIPS SET) REF: L107 - LILLIPUT PLAYTOWN FOUR pg 4 of 22...
- Page 5 PARTS required (CRAWLING TUNNEL) PARTS required (40X40 BOX SECTION PRE-ASSEMBLED FLOOR) (30X30 BOX SECTION) (0B- TORKTAINER) (N1 - TORKTAINER) (Covered Ends) (M12 ´NYLOC´) (M12 x 100 SQUARE CUP HEX BOLTS) (FM80‘ Brass screws’) (M12 x 80 SQUARE CUP HEX BOLTS) (M12 x 75 SQUARE CUP HEX BOLTS) REF: L107 - LILLIPUT PLAYTOWN FOUR pg 5 of 22...
- Page 6 PARTS required ( STANDARD ROOF ) (ROOF CLIPS) (SIDE ROOF ) (TOP ROOF CLIP) (3B- TORKTAINER) (N1 - TORKTAINER) (FM80 ‘ Brass screws’) (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) x256 (FM80 ‘ Brass screws’) x8 LEFT (SIDES RUSTIC ROOF) x8 RIGHT...
-
Page 7: Tools Required
TIMBERS required L107b L107b L107g L107g L107b L107b L107I L107b L107i L107b L107e L107f L107e L107g L107h L107a L108d L107c L107b L107c L107b TOOLS required REF: L107 - LILLIPUT PLAYTOWN FOUR pg 7 of 22... -
Page 8: Foundation Details
Foundation Details NET TUNNEL CRAWLING TUBE RAMP SLIDE FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: L107 - LILLIPUT PLAYTOWN FOUR pg 8 of 22... -
Page 9: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: L107 - LILLIPUT PLAYTOWN FOUR pg 9 of 22... -
Page 10: Installation Instructions
Installation Instructions Install timber UPRIGHTS L107a-h Follow fundation details L107b L107b L107g L107g L107b NET CLIMBER L107b L107b TOWER L107g L107h L107a L107b L107d CLIMBING WALL TOWER RAMP TOWER SLIDE TOWER Attach the CLATTERBRIDGE HEX floor to timbers on RAMP AND SLIDE TOWERS and STANDARD HEX FLOOR to NET CLIMBER AND CLIMING WALL timbers Using 4x150mm M12 SQUARE CUP HEX BOLTS/ 4x Nylocs / 4x RED CAPS - PER FLOOR NET CLIMBER TOWER... - Page 11 Installation Instructions Install the RAMP to the floor METAL FRAME and LEGS Using (2X200mm - RAMP PULL TIMBER) (2x100mm - FIX RAMP TO FLOOR) (6X70mm - FIX HEX TO RAMP) M12 SQUARE CUP HEX BOLTS/ 10x M12 Nylocs / 10x COVERED ENDS Using 2x 5B TORKTAINER / 2x N4 TORKTAINER fix the box section legs L107g L107f...
- Page 12 Installation Instructions ON OTHER TOWER - Attach the SLIDE to the HEXBOARD FLOOR Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ L107c L107b Insert the SLIDE SIDES to the SLIDE and to the timbers L107b/L107c USING 4x ‘FM80 Brass Screws’ L107b L107c REF: L107 - LILLIPUT PLAYTOWN FOUR...
- Page 13 Installation Instructions Attach the PANELS (x6) to the TIMBERS SHOWN Using 4x ‘FM80 Brass Screws’ PER PANEL Attach the ROPE to the TIMBER L107f and FLOOR FRAME Using 2x NYLOCS / 2x RED CAPS L107f REF: L107 - LILLIPUT PLAYTOWN FOUR pg 13 of 22...
- Page 14 Installation Instructions ATTACH the CLATTERBRIDGE and TIMBERS L107e Fig1 - ATTACH L107e TIMBERS USING 4 X M12 X 200 CUP SQUARE BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS Fig2 - ATTACH ROPES USING 4 X M12 NYLOCS / 4 X COVERED ENDS Fig3 - ATTACH CLATTERBRIDE CHAIN USING 4 X M12 NYLOCS / 4 X COVERED ENDS FIG1 FIG2...
- Page 15 Installation Instructions CRAWLING TUBE - ATTACH THE HEXBOARD TO METAL FLOOR FRAME USING 6 X M12 X 75 CUP SQUARE BOLTS / 6 X M12 NYLOCS / 6 X COVERED ENDS PLACE INBWTEEN TOWERS L107c L107c L107b ATTACH UNDERNEATH L107b L107b L107b L107b...
- Page 16 Installation Instructions ATTACH THE ENTRANCE RINGS and CENTRE RINGS ATTACH ENTRANCE RINGS USING FM80 BRASS SCREWS ATTACH CENTRE RINGS USING THE PLAYTEC CLIP SETS / M12 X 80mm SQUARE CUP BOLTS / M12 NYLOCS / M12 COVERED ENDS Attach FIRST/LAST PLAYTEC SLATS and 30X30 BOX SECTION to the RINGS USING 0B/N1 TORKTAINERS REF: L107 - LILLIPUT PLAYTOWN FOUR pg 16 of 22...
- Page 17 Installation Instructions Attach REST of PLAYTEC SLATS and 30X30 BOX SECTION to RINGS USING 0B/N1 TORKTAINERS ..CONTINUE AROUND ENSURE: THAT EACH SLAT IS AN ALTERNATIVE COLOUR. e.g - ONE GREEN, ONE YELLOW, ONE GREEN, ONE YELLOW ETC. Attach CLIMBING WALL USING FM80 BRASS SCREWS REF: L107 - LILLIPUT PLAYTOWN FOUR pg 17 of 22...
- Page 18 Installation Instructions ATTACH NET TUNNEL and TIMBER L107i (X 2) Fig1 - ATTACH 2 X L107i TIMBERS USING 4 X M12 X 200 CUP SQUARE BOLTS / 4 X M12 NYLOCS / 4 X COVERED ENDS Fig2 - ATTACH ROPES USING M12 NYLOCS / COVERED ENDS Fig3 - ATTACH NET TUNNEL THREAD BAR USING 6 X M12 NYLOCS / 6 X COVERED ENDS FIG1 FIG2...
- Page 19 Installation Instructions ATTACH NET CLIMBER to TOWER and SECURE IN FOUNDATIONS Fig4 - ATTACH TOP OF NET TO FLOOR USING 3 X M12 NYLOCS / 3 X COVERED ENDS Fig5 - ATTACH ROPES TO NET CLIMBER GROUND ANCHOR USING 3 X M12 NYLOCS / 3 X COVERED ENDS ENSURE: FIG4 NET CLIMBER IS ATTACHED AT THE TOP...
- Page 20 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: L107 - LILLIPUT PLAYTOWN FOUR pg 20 of 22...
- Page 21 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: L107 - LILLIPUT PLAYTOWN FOUR pg 21 of 22...
-
Page 22: Additional Dimensions
Additional Dimensions 5.4m 4.25m REF: L107 - LILLIPUT PLAYTOWN FOUR pg 22 of 22...
