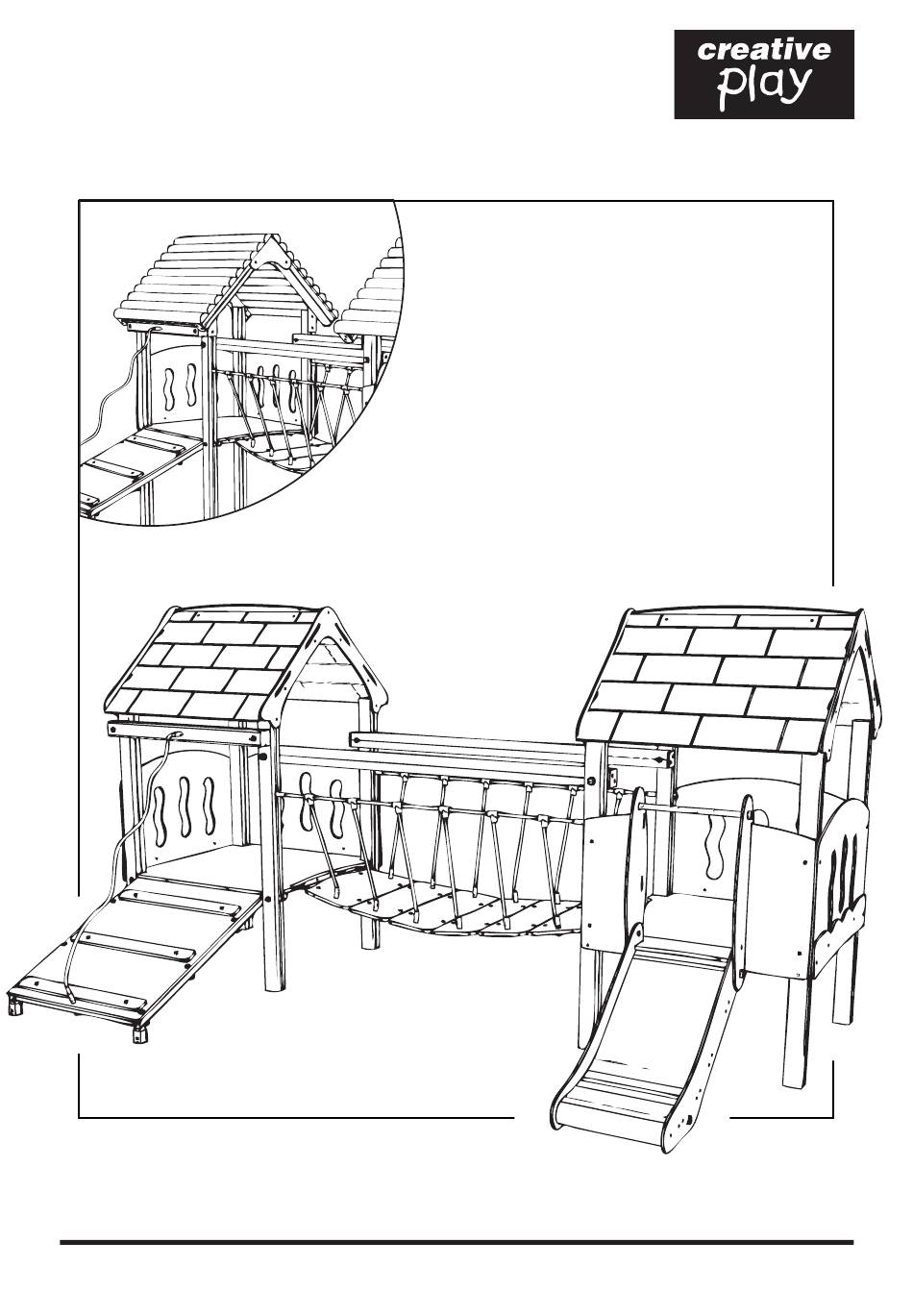

- Page 1 LILLIPUT PLAYTOWN TWO Installation Instructions REF: L109 - LILLIPUT PLAYTOWN TWO pg 1 of 15...
-
Page 2: Parts Required
PARTS required PARTS required (PRE-ASSEMBLED PANEL) (90 x 90 CLATTERBRIDGE FLOOR) (ZENITH TOWERS STANDARD FLOOR 90x90) (RAMP METAL FRAME) (RAMP HEX) (RAMP PULL ROPE) REF: L109 - LILLIPUT PLAYTOWN TWO pg 2 of 15... - Page 3 (M12 x 200SQUARE CUP HEX BOLTS) (M12 x 150 SQUARE CUP HEX BOLTS) (M12 x 100 SQUARE CUP HEX BOLTS) (FM40‘ Brass screws’) (M12 x 75 SQUARE CUP HEX BOLTS) (FM80‘ Brass screws’) REF: L109 - LILLIPUT PLAYTOWN TWO pg 3 of 15...
- Page 4 (FRONT ROOF) (BACK ROOF) PARTS required (RUSTIC ROOF ) (HALF ROUND TIMBERS) x128 (FM80 ‘ Brass screws’) x4 LEFT (SIDES RUSTIC ROOF) x4 RIGHT (TOP RUSTIC ROOF) (SIDES RUSTIC ROOF) REF: L109 - LILLIPUT PLAYTOWN TWO pg 4 of 15...
-
Page 5: Tools Required
TIMBERS required L109f L109e L109e L109b L109a L109c L109d L109c L109b L109c L109b TOOLS required REF: L109 - LILLIPUT PLAYTOWN TWO pg 5 of 15... -
Page 6: Foundation Details
Foundation Details RAMP SLIDE FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil REF: L109 - LILLIPUT PLAYTOWN TWO pg 6 of 15... -
Page 7: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA 5.72m REF: L109 - LILLIPUT PLAYTOWN TWO pg 7 of 15... -
Page 8: Installation Instructions
Attach the floor to the timbers and place the Hexboard on top Using 4x150mm M12 SQUARE CUP HEX BOLTS/ 4x Nylocs / 4x RED CAPS - PER FLOOR CLATTERBRIDGE ENSURE: FLOOR CURVES FACE CLATTERBRIDGE REF: L109 - LILLIPUT PLAYTOWN TWO pg 8 of 15... - Page 9 Using (2X200mm - RAMP PULL TIMBER) (2x100mm - FIX RAMP TO FLOOR) (6X70mm - FIX HEX TO RAMP) M12 SQUARE CUP HEX BOLTS/ 10x M12 Nylocs / 10x COVERED ENDS Using 2x 5B TORKTAINER / 2x N4 TORKTAINER fix the box section legs L109b L109f L109a L109c L109d REF: L109 - LILLIPUT PLAYTOWN TWO pg 9 of 15...
- Page 10 Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ L109c L109b Insert the SLIDE SIDES to the SLIDE and to the timbers USING 4x ‘FM80 Brass Screws’ L109b L109c REF: L109 - LILLIPUT PLAYTOWN TWO pg 10 of 15...
- Page 11 Using 4x ‘FM80 Brass Screws’ PER PANEL L109b L109a L109c L109b L109c L109b L109c L109d Attach the ROPE to the TIMBER L109f and FLOOR FRAME Using 2x NYLOCS / 2x RED CAPS L109f REF: L109 - LILLIPUT PLAYTOWN TWO pg 11 of 15...
- Page 12 Fig2 - ATTACH ROPES USING 4 X M12 NYLOCS / 4 X COVERED ENDS Fig3 - ATTACH CLATTERBRIDE CHAIN USING 4 X M12 NYLOCS / 4 X COVERED ENDS FIG1 FIG2 REPEAT FOR OTHER SIDE FIG1 FIG1 FIG2 FIG2 FIG3 FIG3 FIG3 REF: L109 - LILLIPUT PLAYTOWN TWO pg 12 of 15...
- Page 13 Installation Instructions Attach the roof Parts (NORMAL ROOF) Using ‘TORKTAINERS’ and ‘Brass Screws’ REF: L109 - LILLIPUT PLAYTOWN TWO pg 13 of 15...
- Page 14 Installation Instructions Attach the roof Parts (RUSTIC ROOF) Using ‘Brass Screws’ QTYx2 Both Sides REF: L109 - LILLIPUT PLAYTOWN TWO pg 14 of 15...
-
Page 15: Additional Dimensions
Additional Dimensions 2.3m 4.25m REF: L109 - LILLIPUT PLAYTOWN TWO pg 15 of 15...
