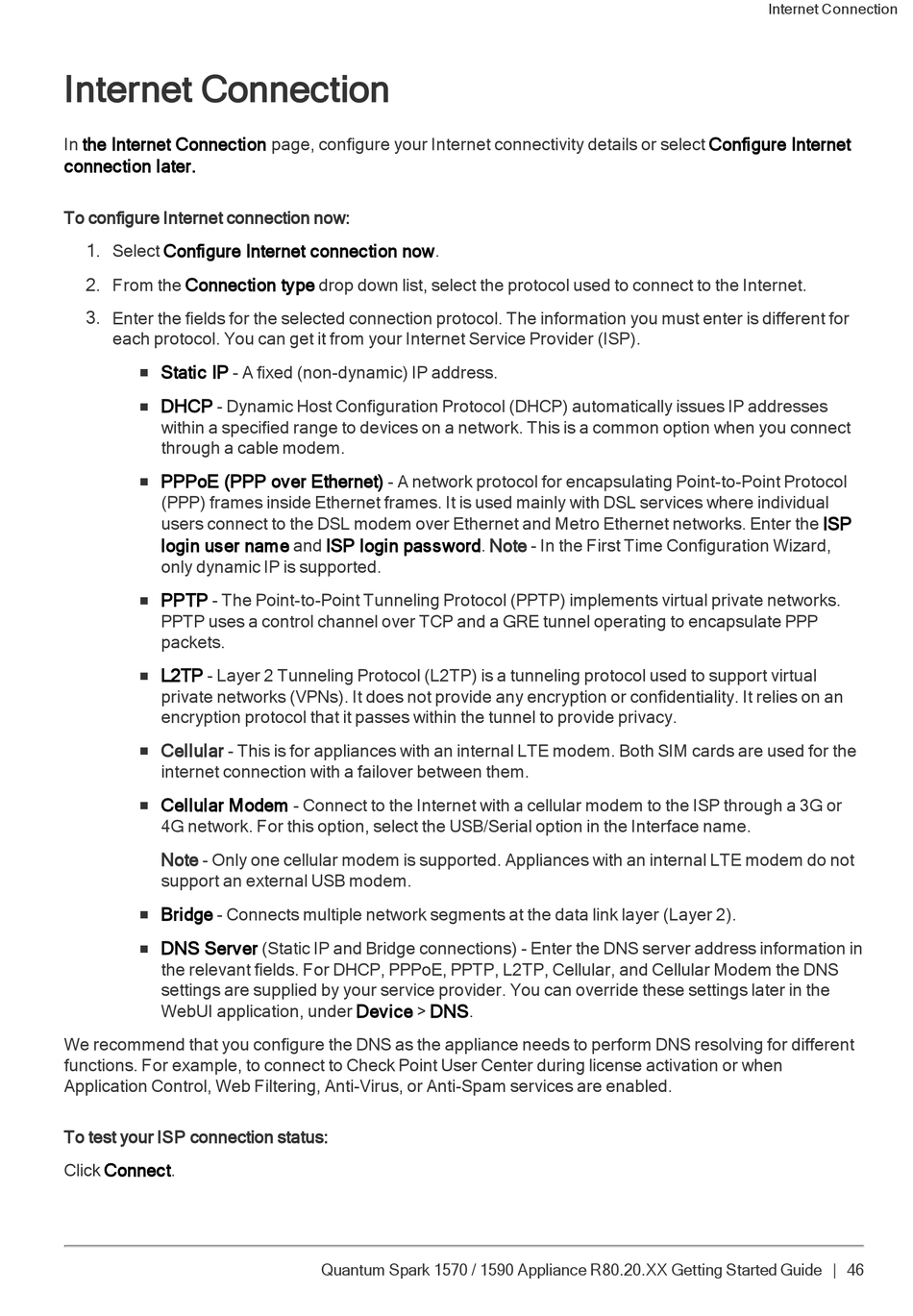

Internet Connection

the Internet Connection
In
connection later.
To configure Internet connection now:
1. Select Configure Internet connection now
2. From the Connection type
3. Enter the fields for the selected connection protocol. The information you must enter is different for
each protocol. You can get it from your Internet Service Provider (ISP).
Static IP - A fixed (non-dynamic) IP address.
n
DHCP
- Dynamic Host Configuration Protocol (DHCP) automatically issues IP addresses
n
within a specified range to devices on a network. This is a common option when you connect
through a cable modem.
PPPoE (PPP over Ethernet)
n
(PPP) frames inside Ethernet frames. It is used mainly with DSL services where individual
users connect to the DSL modem over Ethernet and Metro Ethernet networks. Enter the
login user name
only dynamic IP is supported.
PPTP
- The Point-to-Point Tunneling Protocol (PPTP) implements virtual private networks.
n
PPTP uses a control channel over TCP and a GRE tunnel operating to encapsulate PPP
packets.
L2TP
- Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual
n
private networks (VPNs). It does not provide any encryption or confidentiality. It relies on an
encryption protocol that it passes within the tunnel to provide privacy.
Cellular - This is for appliances with an internal LTE modem. Both SIM cards are used for the
n
internet connection with a failover between them.
Cellular Modem
n
4G network. For this option, select the USB/Serial option in the Interface name.
Note - Only one cellular modem is supported. Appliances with an internal LTE modem do not
support an external USB modem.
Bridge - Connects multiple network segments at the data link layer (Layer 2).
n
DNS Server
n
the relevant fields. For DHCP, PPPoE, PPTP, L2TP, Cellular, and Cellular Modem the DNS
settings are supplied by your service provider. You can override these settings later in the
WebUI application, under
We recommend that you configure the DNS as the appliance needs to perform DNS resolving for different
functions. For example, to connect to Check Point User Center during license activation or when
Application Control, Web Filtering, Anti-Virus, or Anti-Spam services are enabled.
To test your ISP connection status:
Connect
Click .
page, configure your Internet connectivity details or select
drop down list, select the protocol used to connect to the Internet.
- A network protocol for encapsulating Point-to-Point Protocol
and ISP login password
- Connect to the Internet with a cellular modem to the ISP through a 3G or
(Static IP and Bridge connections) - Enter the DNS server address information in
Device > DNS
Quantum Spark 1570 / 1590 Appliance R80.20.XX Getting Started Guide | 46
.
. Note - In the First Time Configuration Wizard,
.
Internet Connection
Configure Internet
ISP
