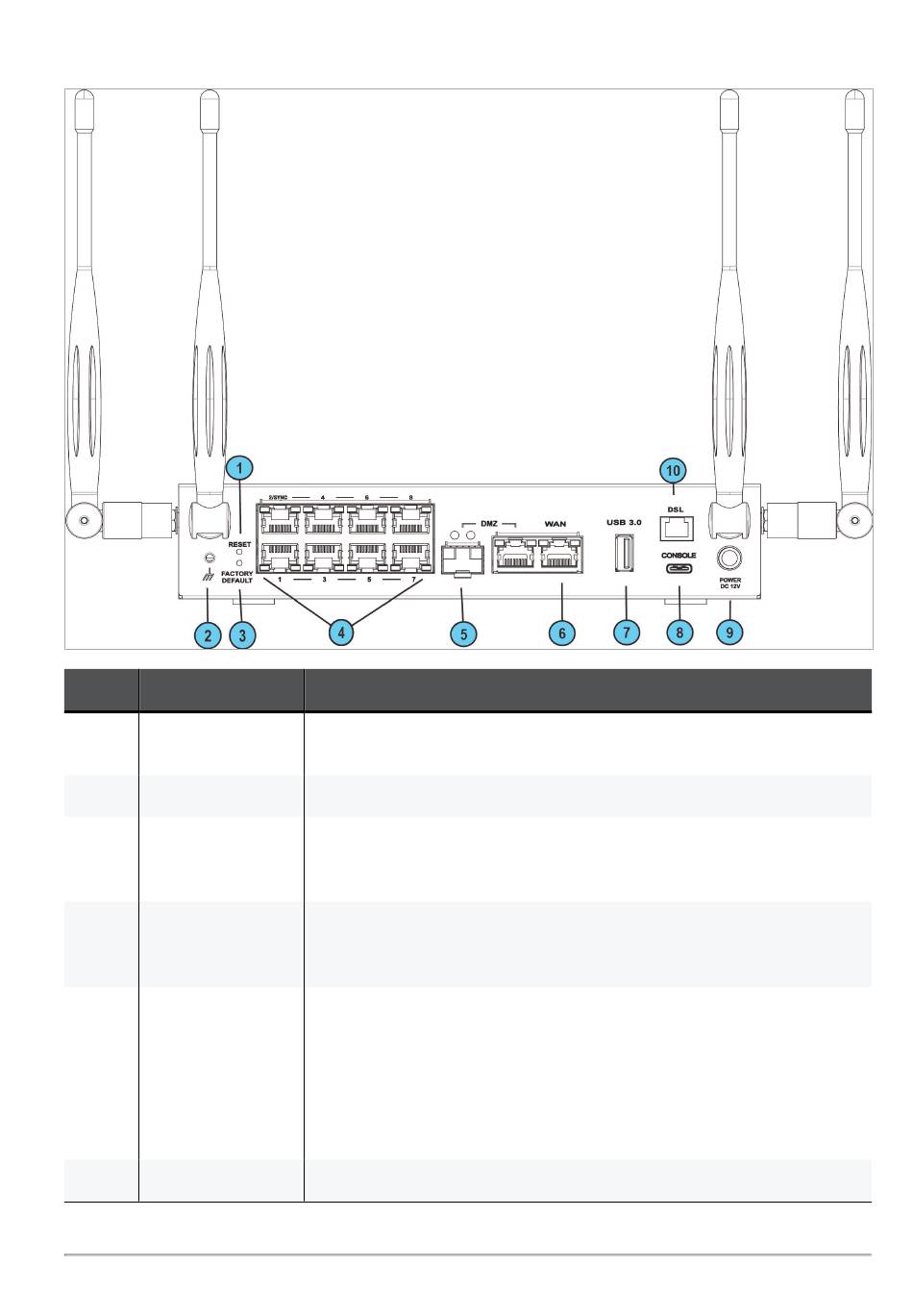

WiFi-DSL
Key Item
1 Reset
2 Ground screw
3 Factory default
4 LAN ports
5 DMZ port
(combo RJ45 or
DMZ fiber SFP
port)
6 RJ45 WAN port
Description
Short press resets the system but does not remove any user
parameters.
Functional grounding.
Press the button continuously for 12 seconds to restore the appliance to
its factory default.
All user parameters previously configured are removed.
LAN ports 1-8.
LAN port 2/Sync.
Support 10/100/1000MbE.
WAN combo port (RJ45 or DMZ fiber).
Only one can operate at a time once plugged in and connected.
Once connected, you must remove it to activate the other port.
The LEDs above indicate connection and speed per connection.
Each uses its own LEDs.
The SFP supports 1GbE speed, short and long range. See catalog for
P/Ns.
WAN port RJ45 (on the right) - supports 10/100/1000MbE.
Quantum Spark 1570 / 1590 Appliance R80.20.XX Getting Started Guide | 29
Back Panel
