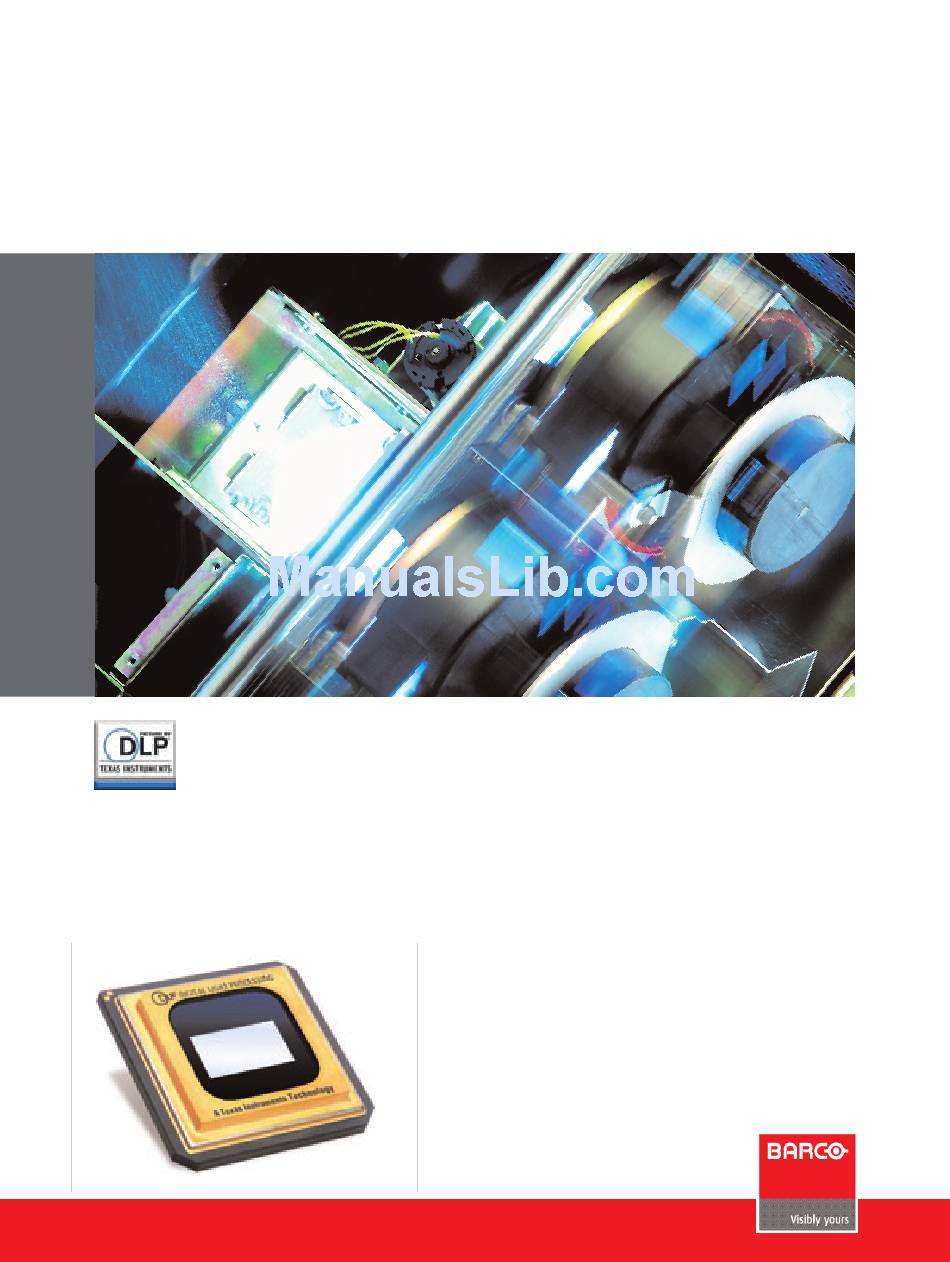

- Page 1 OverView D Barco DLP projection series...
- Page 2 By maintaining technological ownership of the entire projection module, Barco Control Rooms was able to design the O Series with the most rugged components available.
- Page 3 Barco Control Rooms • Engineered for 24/7 mission critical operation • Superior color rendition and uniformity • Optimized viewing ergonomics • Designed for low cost of ownership • Simple system maintenance instills confidence...
- Page 4 What is DLP ? Digital Light Processing technology is a revolutionary display solution that uses an optical semiconductor to manipulate light digitally. The result is maximum fidelity, with a picture whose clarity, brilliance and color must be seen to be believed. White light passes through a color wheel filter, causing red, green and blue light to be shone in sequence on the surface of the DMD.
-
Page 5: Adding Color
DLP board shaping optics Adding color The white light generated by the lamp in a DLP™ projection system passes through a color wheel as it travels to the surface of the DMD panel. The color wheel filters the light into red, green, and blue, from which a single- chip DLP™... - Page 6 The features of the Barco DLP solution Light output Color Color correction Color uniformity Contrast...
-
Page 7: Future Proof
The Barco Control Rooms solution guarantees an original-quality picture time and time again, with zero hassle and minimal maintenance. All... -
Page 8: Image Optimization
Image equalizing capability • On-screen menus Image optimization From lamp to screen, the whole light path is designed by Barco Control Rooms to deliver optimal picture quality. In addition to high quality components in each step of the light path, an... -
Page 9: Modular Design
Modular design Barco offers a range of display solutions in the O series that are designed to form display walls of any size, in a linear or curved setup. The closed modular structure requires minimal installation depth. Filter Barco’s added value... - Page 10 Barco’s added value Built in redundancy The conception of the projection engine in terms of redundancy deals with its weakest link - the lamp, which is the main consumable. The lamps are combined with the lamp electronics in the illumination unit, which is physically separated from the projection unit.
- Page 11 repair ••• 30 sec 30 sec repair Cold stand-by: The 'redundant' lamp is started up after lamp failure of the 'master' lamp, which takes around 30 seconds. Illumination unit incorporates dual lamp to projection unit 30 sec 500 hrs 500 hrs 30 sec •••...
- Page 12 Barco’s added value Low Mean Time To Repair concept The concept of the projection module is optimized for low Mean Time To Repair. The projection unit is build up out of building blocks combining functionality, each of which one is optimized for maintenance or repair work.
- Page 13 Failed lamp can be changed while other lamp High Mean Time Between Failure concept All components have been selected carefully for delivering a product with high Mean Time Between Failure. The design of the projection module in terms of cooling and integration of the parts has been optimized to prolong the lifetime of the product.
-
Page 14: On-Screen Menus
The integration of Optical Dimming allows image equalizing capability Optical Dimming allows brightness adjustment of the lamp within 50- 100% range before the light reaches the DLP chip. This feature allows to control brightness of all the screens to reach equal luminance values. In particular, this design allows for the following advantages compared to conventional electronic dimming:... - Page 15 Barco’s added value Barco’s image equalizing concept allows control of brightness of all the screens without loss of contrast or color depth luminance display module setpoint brightness expected lamp life 10000 hrs 20000 hrs 30000 hrs 40000 hrs 50000 hrs...
- Page 16 With its head offices in Belgium and Germany, Barco Control Rooms is represented in more than 30 countries across the globe. With a yearly R&D effort of 10% of its turnover, Barco Control Rooms ensures it remains at the forefront of technology.
