RouterBOARD Groove
User's Manual

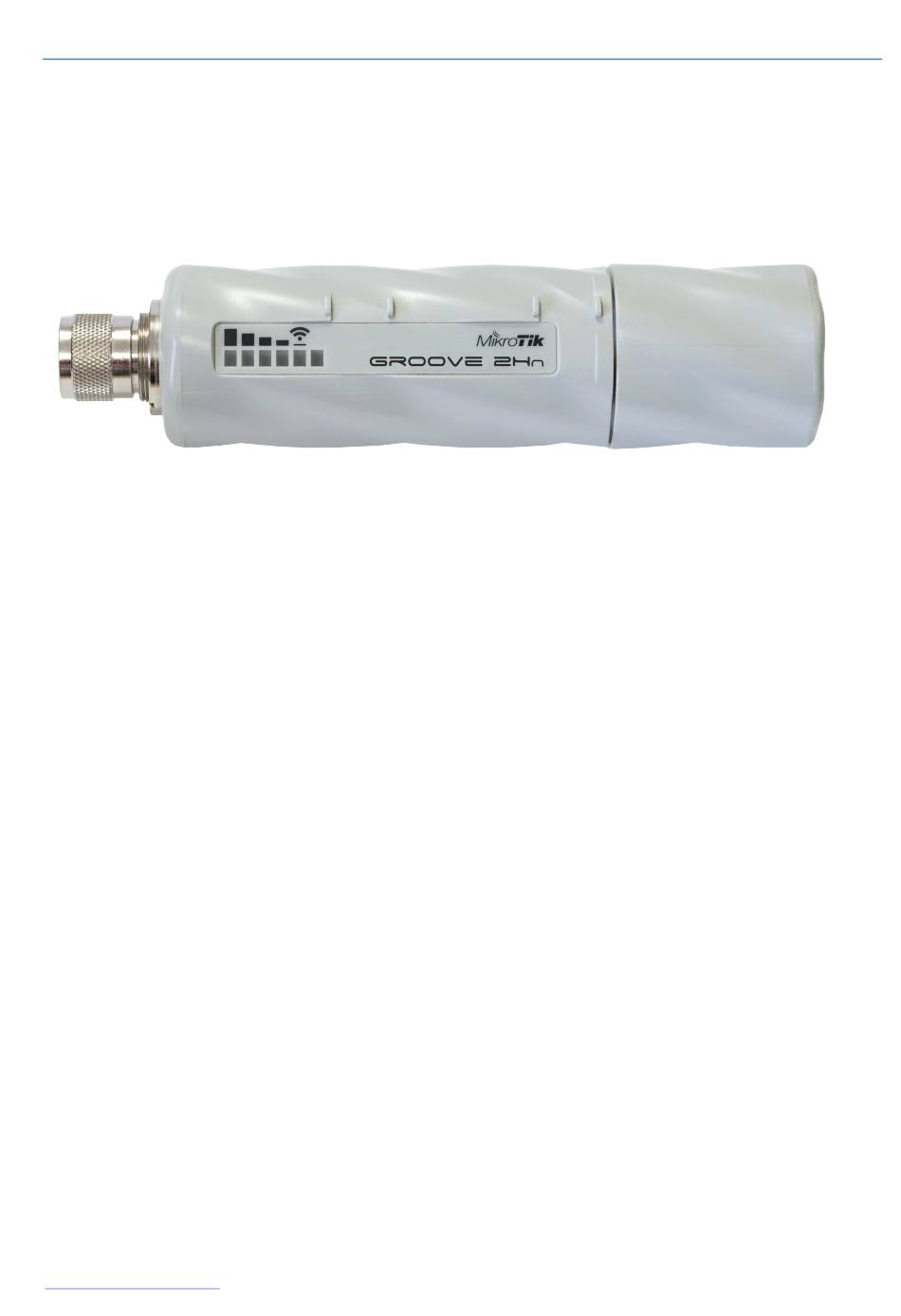

The RouterBOARD Groove comes preinstalled in an outdoor enclosure, with built‐in wireless, an N‐Male
antenna connector, and one 10/100 Ethernet connector which supports MDI‐X auto detection. The device is
packaged with a 24V power adapter, a PoE injector and two mounting loops. Groove is available in four
versions: CPE and AP models of both 2GHz and 5GHz variants.
Copyright and Warranty Information
Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright
law. No part of it may be reproduced or transmitted in any form without prior written permission from the
copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All
trademarks and registered trademarks appearing in this manual are the property of their respective holders.
Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the
shipping date to be free of defects in materials and workmanship under normal use and service, except in case
of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use
or due to wind, rain, fire or other acts of nature.
To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization)
procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA
process.
1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company
regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your
equipment directly from MikroTik in Latvia.
2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for
RB1000, RB1100, RB1200.
3. Out‐of‐warranty devices and devices not covered by warranty sent to Mikrotikls will be returned to
the sender at sender's cost.
RMA Instructions are located on our webpage here: http://rma.mikrotik.com
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including, but
not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer
has made every effort to ensure the accuracy of the contents of this manual; however, it is possible that it may
contain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found
in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from
such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to
support@mikrotik.com
Advertisement
Table of Contents
Related Manuals for MikroTik Groove 2Hn
Summary of Contents for MikroTik Groove 2Hn
- Page 1 RouterBOARD Groove User's Manual The RouterBOARD Groove comes preinstalled in an outdoor enclosure, with built‐in wireless, an N‐Male antenna connector, and one 10/100 Ethernet connector which supports MDI‐X auto detection. The device is packaged with a 24V power adapter, a PoE injector and two mounting loops. Groove is available in four versions: CPE and AP models of both 2GHz and 5GHz variants. Copyright and Warranty Information Copyright and Trademarks. Copyright MikroTikls SIA. This manual contains information protected by copyright law. No part of it may be reproduced or transmitted in any form without prior written permission from the copyright holder. RouterBOARD, RouterOS, RouterBOOT and MikroTik are trademarks of MikroTikls SIA. All trademarks and registered trademarks appearing in this manual are the property of their respective holders. Hardware. MikroTik warrants all RouterBOARD series equipment for the term of fifteen (15) months from the shipping date to be free of defects in materials and workmanship under normal use and service, except in case of damage caused by mechanical, electrical or other accidental or intended damages caused by improper use or due to wind, rain, fire or other acts of nature. To return failed units to MikroTik, you must perform the following RMA (Return Merchandise Authorization) procedure. Follow the instructions below to save time, efforts, avoid costs, and improve the speed of the RMA process. 1. If you have purchased your product from a MikroTik Reseller, please contact the Reseller company regarding all warranty and repair issues, the following instructions apply ONLY if you purchased your equipment directly from MikroTik in Latvia. 2. We do not offer repairs for products that are not covered by warranty. Exceptions can be made for RB1000, RB1100, RB1200. 3. Out‐of‐warranty devices and devices not covered by warranty sent to Mikrotikls will be returned to the sender at sender's cost. RMA Instructions are located on our webpage here: http://rma.mikrotik.com Manual. This manual is provided “as is” without a warranty of any kind, expressed or implied, including, but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The manufacturer has made every effort to ensure the accuracy of the contents of this manual; however, it is possible that it may contain technical inaccuracies, typographical or other errors. No liability is assumed for any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits. Please report any inaccuracies found to support@mikrotik.com ...
- Page 2 USER'S MANUAL ................................ 1 COPYRIGHT AND WARRANTY INFORMATION ........................ 1 SPECIFICATIONS ................................ 3 WIRELESS SPECIFICATIONS .............................. 3 HARDWARE GUIDE ................................. 3 ................................ 3 NPUT UTPUT ORTS Ethernet ports ................................. 3 ..................................... 4 USER'S GUIDE ................................. 4 ..................................... 4 OUNTING .................................... 4 IRST USE ...
-
Page 3: Wireless Specifications
RouterBOARD Groove Series User's Manual Specifications 2Hn A‐2Hn 5Hn A‐5Hn CPU AR7241 400MHz AR7241 400MHz AR7241 400MHz AR7241 400MHz Memory 32MB 64MB 32MB 64MB Data storage NAND chip NAND chip NAND chip NAND chip Ethernet One 10/100 Mbit/s One 10/100 Mbit/s One 10/100 Mbit/s One 10/100 Mbit/s Ethernet port supporting Ethernet port supporting Ethernet port supporting Ethernet port supporting Auto‐MDI/X Auto‐MDI/X Auto‐MDI/X Auto‐MDI/X Wireless Built‐in 2GHz 802.11b/g/n ... -
Page 4: First Use
3 ‐ on, if signal strength >= ‐75dBm 4 ‐ on, if signal strength >= ‐68dBm 5 ‐ on, if signal strength >= ‐61dBm (good signal = all LEDs on) It is possible to disable this function (turn all these LEDs off or re‐assign them) via software configuration. User's Guide Mounting The Groove is to be mounted vertically, so that the Ethernet cable points downwards. If you wish to tighten the Groove to a pole, you can do it with the provided mounting loops. The Groove comes bundled with two mounting loops ‐ guide the loops around the Groove though the provided edge markings, and around the pole where it will be mounted. You should avoid connecting a loose Ethernet cable to the Ethernet port, secure the cable to a wall or the pole, so that the cable weight is not pulling the port. It is recommended to secure the Ethernet cable less than 2m from the Groove device. This is to ensure that the cable doesn't damage the port by it's weight, or doesn't fall out. First use The device is assembled and ready for deployment. You must mount the antenna on the built‐in N‐male connector before turning on the device via PoE! 1. Mount an antenna on the built in N connector. Any antenna can be used, which works in the frequencies supported by the chosen Groove model 2. Plug the supplied PSU into a power socket, and connect it to the supplied PoE injector 3. Connect the “DATA” end of the injector to a switch or any other device, and the other end (which says “DATA+POWER”) to an Ethernet cable leading to the Groove device 4. Open 192.168.88.1 in your web browser to start Quickset and configure the Groove. You might need to adjust your PC IP address to connect to this IP. For advanced configuration guides, see: http://wiki.mikrotik.com/wiki/Category:Manual In case IP connection is not available, Winbox can be used to connect to the MAC address of the device. More information here: http://wiki.mikrotik.com/wiki/First_time_startup Grounding It is recommend using a FTP (foil screened twisted pair) cable – in this case, one end of the cable would be plugged into the SXT, the other end of the cable will be connected to the buildings grounding installation. If possible, also connect a grounding wire to the provided grounding connection behind the SXT case door. Powering Power over Ethernet (PoE) on the Ethernet port: 8‐30V DC (12‐28 V suggested) non‐standard PoE powering support. 24V PSU is supplied with the device ... -
Page 5: Expansion Slots And Ports
Expansion Slots and Ports 1. Built in 2GHz 802.11b/g wireless, 1x1 MIMO, station mode 2. One 10/100 Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross‐over cable for connecting to other network devices. The Ethernet port accepts 8‐30V DC powering from a passive PoE injector. Buttons and Jumpers • RouterOS reset jumper hole (no direct access, board has removed from case) – resets RouterOS software to defaults. Must short circuit the metallic sides of the hole (with a screwdriver, for example) and boot the device. Hold screwdriver in place until RouterOS configuration is cleared. • RouterBOOT reset button (access through the plastic door) has two functions: Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (same result as with reset hole) Hold this button during boot time longer, until LED turns off, then release it to make the device look for Netinstall servers. Booting options In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of the device when starting it until the LED light turns off, and Groove will start to look for Netinstall servers. Onboard NAND Storage Device The RouterBOARD may be started from the onboard NAND storage chip. As there is no partition table on the device, the boot loader assumes the first 4MiB form a YAFFS filesystem, and executes the file called “kernel” stored in the root directory on that partition. It is possible to partition the rest of the medium by patching the kernel source. Booting from network Network boot works similarly to PXE or EtherBoot protocol, and allows you to the device from an executable image stored on a TFTP server. It uses BOOTP or DHCP (configurable in boot loader) protocol to get a valid IP address, and TFTP protocol to download an executable (ELF) kernel image combined with the initial RAM disk (inserted as an ELF section) to boot from (the TFTP server's IP address and the image name must be sent by the BOOTP/DHCP server). To boot the RouterBOARD computer from Ethernet network you need the following: An ELF kernel image for the loader to boot from (you can embed the kernel parameters and initrd image • as ELF sections called kernparm and initrd respectively) A TFTP server which to download the image from ... -
Page 6: Routeros Functions
[admin@MikroTik] > Firmware information This menu displays RouterBOARD model number, serial number, the current boot loader version and the version available in the current software packages installed. [admin@MikroTik] > system routerboard print routerboard: yes model: Groove A-5Hn serial-number: 2B9F015A92DE current-firmware: 2.38 upgrade-firmware:2.38 [admin@MikroTik] > The firmware version can be upgraded from RouterOS by using “/system routerboard upgrade” command. Firmware Settings Boot loader settings are also accessible through this menu. [admin@MikroTik] > system routerboard settings print boot-device: nand-if-fail-then-ethernet boot-protocol: bootp force-backup-booter: no [admin@MikroTik] > ... -
Page 7: Ethernet Cables
RouterBOARD Groove Series User's Manual Appendix Ethernet Cables RJ45 Color Function Function RJ45 pin for Straight cable RJ45 pin for Crossover cable Pin (100Mbit) (1Gbit) (MDI, EIA/TIA568A) (MDI‐X, EIA/TIA568B) 1 Green TX+ Data Data A+ 1 3 2 Green/White TX‐ Data Data A‐ 2 6 3 Orange RX+ Data Data B+ 3 1 4 Blue ‐ Data C+ 4 ...
