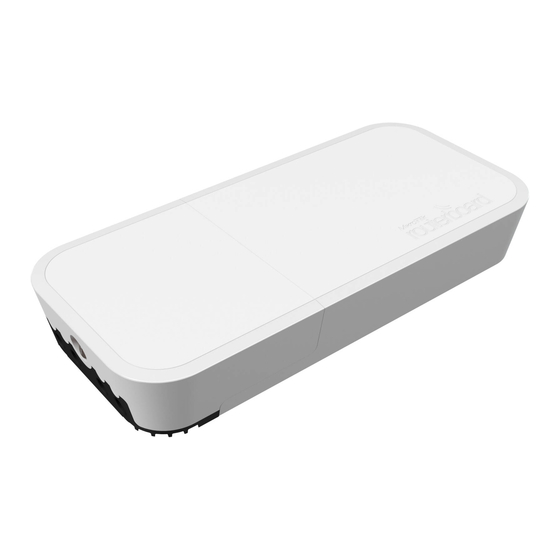

wAP ac
, RBwAPG-5HacD2HnD
wAP ac
BE, RBwAPG-5HacD2HnD-BE
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be
familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be mounted on a pole, wall, or mast. Please read the mounting instructions
carefully before beginning installation. Failure to use the correct hardware or to follow the correct
procedures could result in a hazardous situation to people and damage to the system.
Read the installation instructions before connecting the system to the power source.
It is the customer's responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and
European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik
device should be installed and operated no closer than 20 centimeters from your body, occupational
user, or the general public.
Quickstart
 Make sure your Internet service provider is allowing hardware change and will issue an IP address.
 Open the bottom lid.

Advertisement

loading
Need help?

Need help?

Do you have a question about the wAP ac and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik wAP ac

  • Page 1 Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
  • Page 2 The device can be mounted in several ways: wall, ceiling, pole or it can be placed in specially designed Mikrotik holder which comes with the package. The package includes a drill hole template with instructions, to help you with the Ethernet cable installation and attachment to a ceiling or a wall. The package also includes a steel bracket to put on the other side of a dropdown ceiling tile and two screws and wall anchors.
  • Page 3 Mounting on the mast or pole: * It's recommended to use electrical tape to increase friction between materials. 1. Mount plastic tie straps to steel brackets guiding them through holes. 2. Mount bracket to the device. 3. Secure them with a screw. 4.
  • Page 4 Mounting unit on the wall: 1. Use included a template to mark spots for drilling holes. And if needed for Ethernet cable. Align accordingly, it will depend on how the device will be mounted finally. 2. Insert dowels if needed, depends on wall structure and material. 3.
  • Page 5 A Special bracket is included in the package to mount on the drop ceiling. As it consists of two parts, to be attached on both sides of the ceiling tile. 1. Use the template to mark spots for holes. 2. Place both mounting brackets on the spot. 3.
  • Page 6  Pull the cover in the opposite direction from the device to remove it.  Reassemble. Powering The device accepts power from the power jack or from the Ethernet port, both provided in the package:  Direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) accepts 10-57 V ⎓...
  • Page 7: Expansion Slots And Ports

    The grounding screw is located under the bottom lid: Expansion slots and ports  Integrated two Wireless modules operating at 2.4 GHz and 5 GHz, supporting AP/CPE/P2P/repeater modes.  Two 10/100/1000 Ethernet ports, supporting automatic cross/straight cable correction (Auto MDI/X). Either straight or crossover cable can be used for connecting to other network devices.
  • Page 8: Buttons And Jumpers

    possibilities: In case IP connection is not available, the Winbox tool ( to the MAC address of the device from the LAN side (all access is blocked from the internet port by default). It is possible to boot the device from a network, for reinstalling RouterOS for recovery purposes. This can be done from the first Ethernet port.
  • Page 9: Federal Communication Commission Interference Statement

    It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be professionally installed.
  • Page 10: Innovation, Science And Economic Development Canada

     Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
  • Page 11 через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке. Для получения подробных сведений о гарантийном обслуживании обратитесь к продавцу.
  • Page 12 Продукты MikroTik, которые поставляются в Евразийский таможенный союз, оцениваются с учетом соответствующих требований и помечены знаком EAC, как показано ниже: Norma Oficial Mexicana Rango de frecuencia (potencia de salida máxima): 2400-2483.5 MHz (30 dBm), 5725-5850 MHz (30 dBm). Los canales de frecuencia disponibles pueden variar según el modelo y la certificación del producto.
  • Page 13: Ce Declaration Of Conformity

    WLAN conformément aux réglementations ETSI. Pour plus d'informations, voir la déclaration de conformité ci-dessus / Questo dispositivo MikroTik è conforme ai limiti massimi di potenza di trasmissione WLAN in conformità con le normative ETSI. Per ulteriori informazioni, consultare la dichiarazione di conformità...
  • Page 14 WLAN для этого устройства ограничена использованием внутри помещения только при работе в диапазоне частот от 5150 до 5350 МГц. Note. The information contained here is subject to change. Please visit the product page www.mikrotik.com for the most up to date version of this document.
