MikroTik BaseBox Series User Manual

BaseBox-series
This User Manual covers BaseBox models:
OUT).

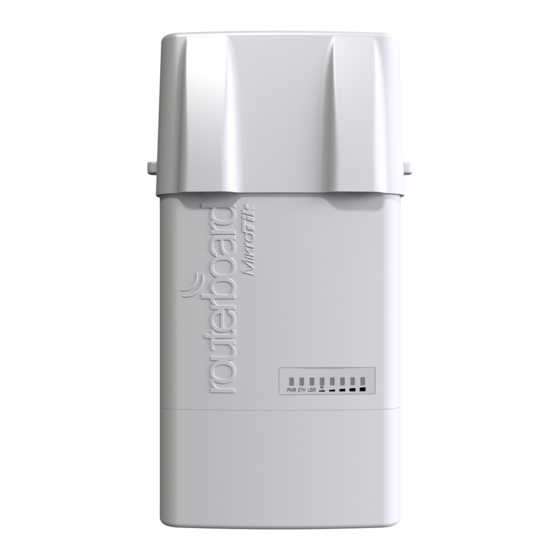

The Basebox is a solid and weatherproof outdoor device based on the RB912 wireless router model. It has high power wireless and one Gigabit Ethernet
connector, which supports MDI-X auto-detection. The device has two RPSMA connectors for connecting external antennas. The device is packaged with a
power adapter, a PoE injector, and two mounting loops. Extra places for more RP-SMA connectors are available on the unit in this case.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.
This is a class A device. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
Exposure to Radio Frequency Radiation:
uncontrolled environment.

First use

1. Choose your powering solution, please see the
2. Remove the lid, and connect the antenna to the RP-SMA connectors. Bend the cable with a large radius, so that it will be able to exit through the
cable openings in the bottom of the lid. Put the lid back, with the small arrow to the front of the case.
3. Open the device bottom door, to reveal the Ethernet connector.
4. Connect your direct input power jack if not using POE, to start up the device.
5. Connect your Ethernet cable to the Gigabit Ethernet port.
6. The device will boot up and after a short beep Wireless network will be available for connecting.
7. Open network connections on your pc, mobile phone, or other device and search for MikroTik wireless network and connect to it.
8. Once connected to the wireless network, open
default, you will be logged in automatically.
9. We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability.
10. Choose your country, to apply country regulation settings, and set up your password on the screen that loads.

Mounting

BaseBox 2(RB912UAG-2HPnD-OUT), BaseBox 5(RB912UAG-5HPnD-OUT), BaseBox 6 (RB912UAG-6HPnD-
This MikroTik equipment complies with the FCC, IC and European Union radiation exposure limits set forth for an
Powering section for possibilities.
https://192.168.88.1 in your web browser to start configuration, since there is no password by
