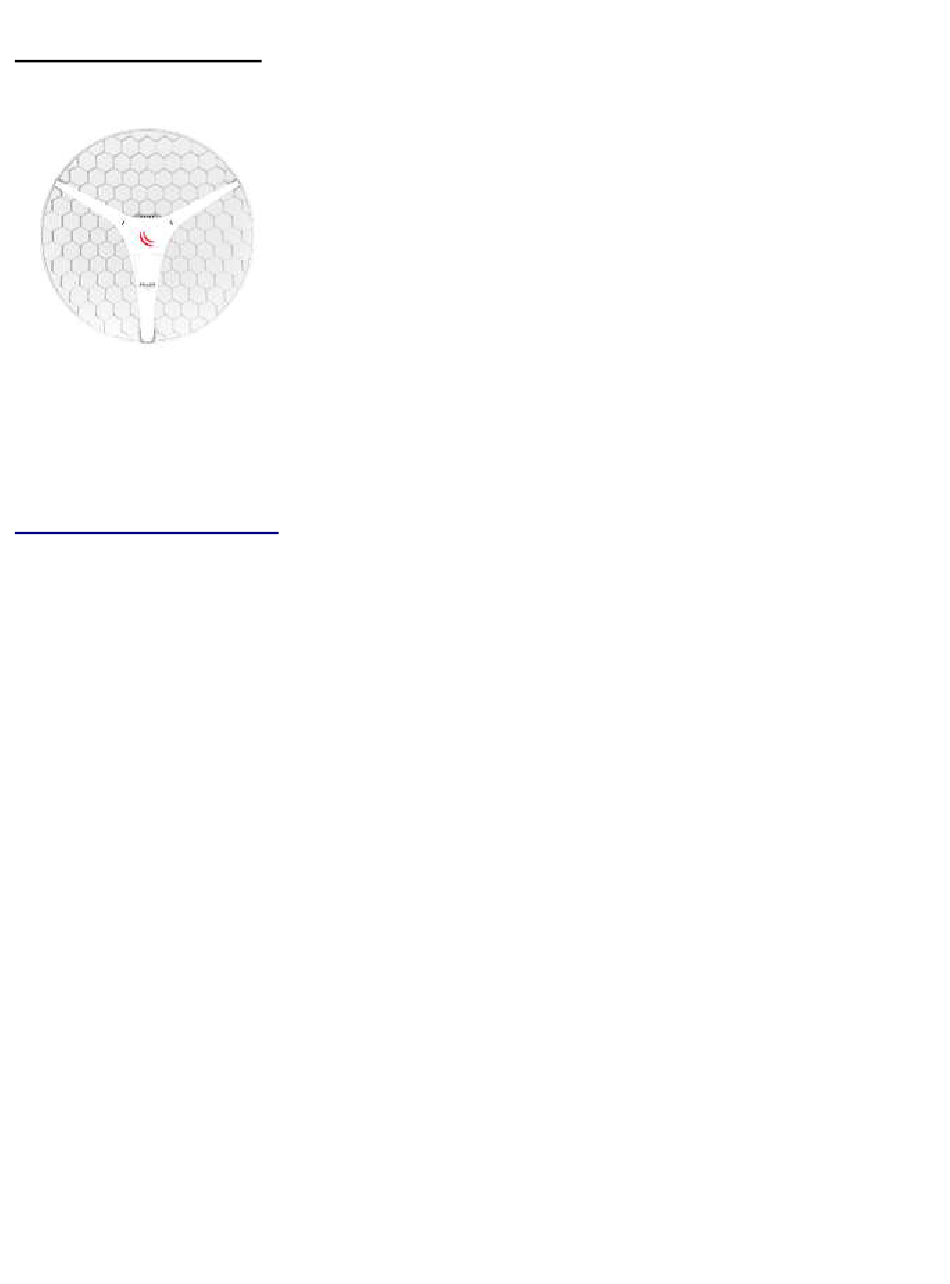

User Manual

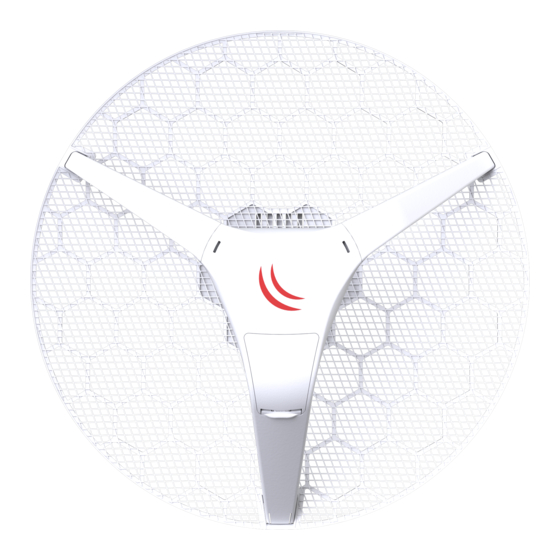

RBLHG-5HPnD-XL
LHG XL HP5

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be
familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Failure to use the correct hardware and
configuration or to follow the correct procedures could result in a hazardous situation for people and
damage to the system.
Use only the power supply and accessories approved by the manufacturer, and which can be found in
the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device.
Please use this product with care and operate at your own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging
the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All Mikrotik radio devices must be professionally installed.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and
European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik
device should be installed and operated no closer than 20 centimeters from your body, occupational
user, or the general public.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHG 5 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik LHG 5 Series

  • Page 1 Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the general public.
  • Page 2 Use the U bolt, to fix the unit to a pole/mast. More detailed instructions available on the product page on https://mikrotik.com/products/. Connecting  Open the Ethernet door to connect your PC or LAN cable to the Ethernet port, connect the other end of the Ethernet cable to a PoE injector;...
  • Page 3 Buttons and jumpers The reset button has three functions: • Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds). • Keep holding for 5 more seconds, LED turns solid, release now to turn on CAPs mode (total 10 seconds).
  • Page 4  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
  • Page 5 через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке. Для получения подробных сведений о гарантийном обслуживании обратитесь к продавцу.
  • Page 6 País De Origen: Letonia; Lituania; China (Republica Popular); Estados Unidos De America; Mexico. Por favor contacte a su distribuidor local para preguntas regionales específicas. La lista de importadores se puede encontrar en nuestra página de inicio – https://mikrotik.com/buy/latinamerica/mexico. The National Commission for the State Regulation of Communications and Informatization by Ukraine Виробник: Mikrotikls SIA, Brivibas gatve 214i Рига, Латвія, LV1039.
  • Page 7 Hereby, Mikrotīkls SIA declares that the radio equipment type RBLHG-5HPnD-XL is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/products Frequency bands terms of use Frequency range (for...
  • Page 8 WLAN conformément aux réglementations ETSI. Pour plus d'informations, voir la déclaration de conformité ci-dessus / Questo dispositivo MikroTik è conforme ai limiti massimi di potenza di trasmissione WLAN in conformità con le normative ETSI. Per ulteriori informazioni, consultare la dichiarazione di conformità...
