BaseBox-series
This User Manual covers BaseBox models:
OUT).

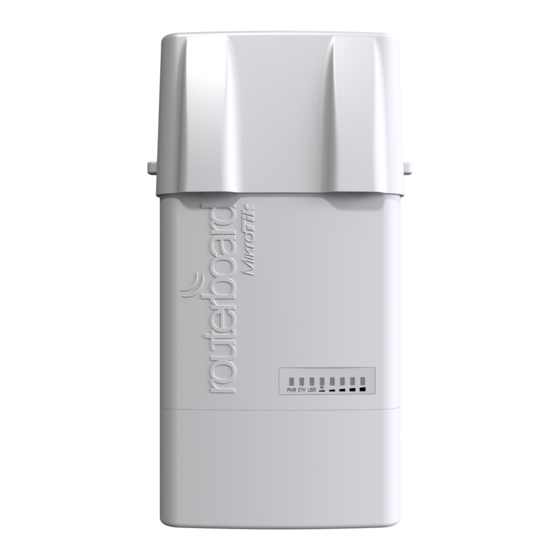

The Basebox is a solid and weatherproof outdoor device based on the RB912 wireless router model. It has high power wireless and one Gigabit Ethernet
connector, which supports MDI-X auto-detection. The device has two RPSMA connectors for connecting external antennas. The device is packaged with a
power adapter, a PoE injector, and two mounting loops. Extra places for more RP-SMA connectors are available on the unit in this case.
First use
1.
Choose your powering solution, please see the
2.
Remove the lid, and connect the antenna to the RP-SMA connectors. Bend the cable with a large radius, so that it will be able to exit through the
cable openings in the bottom of the lid. Put the lid back, with the small arrow to the front of the case.
3.
Open the device bottom door, to reveal the Ethernet connector.
4.
Connect your direct input power jack if not using POE, to start up the device.
5.
Connect your Ethernet cable to the Gigabit Ethernet port.
6.
The device will boot up and after a short beep Wireless network will be available for connecting.
7.
Open network connections on your pc, mobile phone, or other device and search for MikroTik wireless network and connect to it.
8.
Once connected to the wireless network, open
default, you will be logged in automatically.
9.
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability.
10.
Choose your country, to apply country regulation settings, and set up your password on the screen that loads.
Mounting

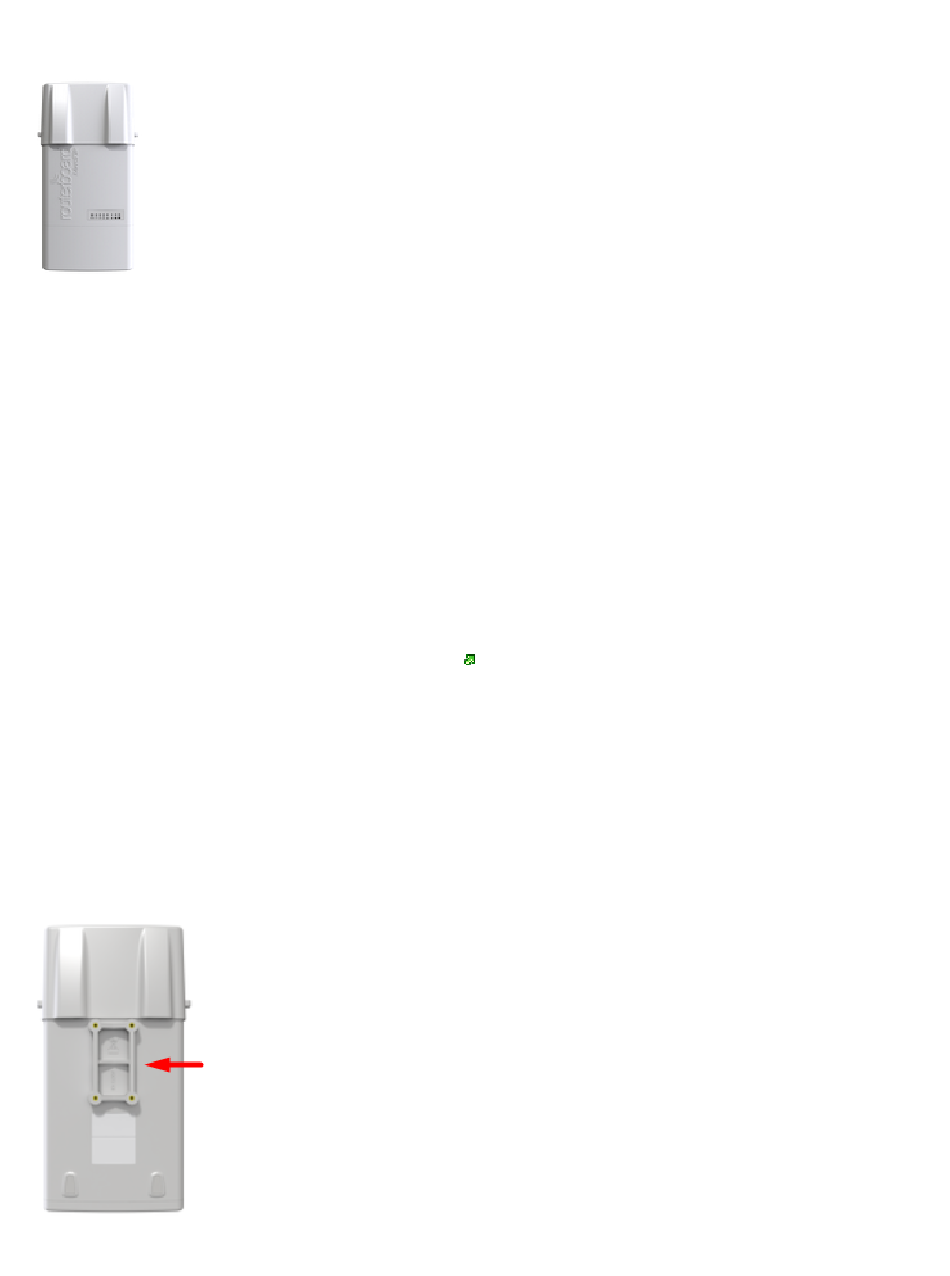

The device can be mounted in several ways: wall, ceiling, pole. To tighten the device to a pole, use the provided metal hose clamp.
Guide the loop around the device through the provided holes, and around the pole where it will be mounted, or use a DIN mount to attach the device to a
rail:
BaseBox 2(RB912UAG-2HPnD-OUT), BaseBox 5(RB912UAG-5HPnD-OUT), BaseBox 6 (RB912UAG-6HPnD-
BaseBox-series#Powering
https://192.168.88.1
section for possibilities.
in your web browser to start
configuration, since there is no password by
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MikroTik BaseBox Series
Summary of Contents for MikroTik BaseBox Series
- Page 1 The device will boot up and after a short beep Wireless network will be available for connecting. Open network connections on your pc, mobile phone, or other device and search for MikroTik wireless network and connect to it. Once connected to the wireless network, open https://192.168.88.1...
- Page 2 You should avoid connecting a loose Ethernet cable to the Ethernet port, secure the cable to a wall or the pole, so that the cable weight is not pulling the port. It is recommended to secure the Ethernet cable less than 2m from the device. This is to ensure that the cable doesn't damage the port by its weight, or doesn't fall out.
- Page 3 Open Ethernet port cover and withdraw it from the base of the device; Unscrew the antenna connector; Withdraw the PCB plate from the base cover; Install your modem and reassemble. Reset button The reset button has three functions: Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds). Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode.
- Page 4 *DIN mount includes four screws to attach it to the back of the device. Safety Notice Electric shock hazard. This equipment is to be serviced by trained personnel only. This is a class A device, operating it near residential radio equipment could cause radio interference.
- Page 5 BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/53/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě...
- Page 6 ES Por la presente, Mikrotīkls SIA declara que el tipo de equipo radioeléctrico RouterBOARD es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: https://mikrotik.com/products ET Käesolevaga deklareerib Mikrotīkls SIA , et käesolev raadioseadme tüüp RouterBOARD vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil:...
- Page 7 * It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed! Note. The information contained here is subject to change. Please visit the product page on www.mikrotik.com...
- Page 8 producto. Más información en {_}{+}https://mt.lv/help-es+_ ET. Kasutusjuhend: Ühendage toiteadapter seadme sisselülitamiseks. Avatud 192.168.88.1 in veebilehitseja seadistada toodet. Rohkem teavet {_}{+}https:/ /mt.lv/help-et+_ FI. Käyttöohje: Kytke virtalähde päälle laitteen. Avaa 192.168.88.1 in selaimen määrittää tuotteen. Lisää tietoa {_}{+}https://mt.lv/help-fi+_ FR. Mode d'emploi: Connectez l'adaptateur d'alimentation pour allumer l'appareil. Ouvrez 192.168.88.1 dans un navigateur Web pour configurer le produit. Plus d'informations dans {_}{+}https://mt.lv/help-fr+_ HR.
