Flowserve Automax Aviator Installation, Operating, & Maintenance Instructions page 2

Flowserve Corporation
Flow Control Division
Automax Valve Automation Systems
Lubrication
All Aviator™ spool valves are pre-lubricated and
will operate dry (with no additional lubrication). The
use of lubricated air will not interfere with the
Aviator's functioning.
If air lubrication is used, the oils listed below are
popular, easily obtainable fluids that are

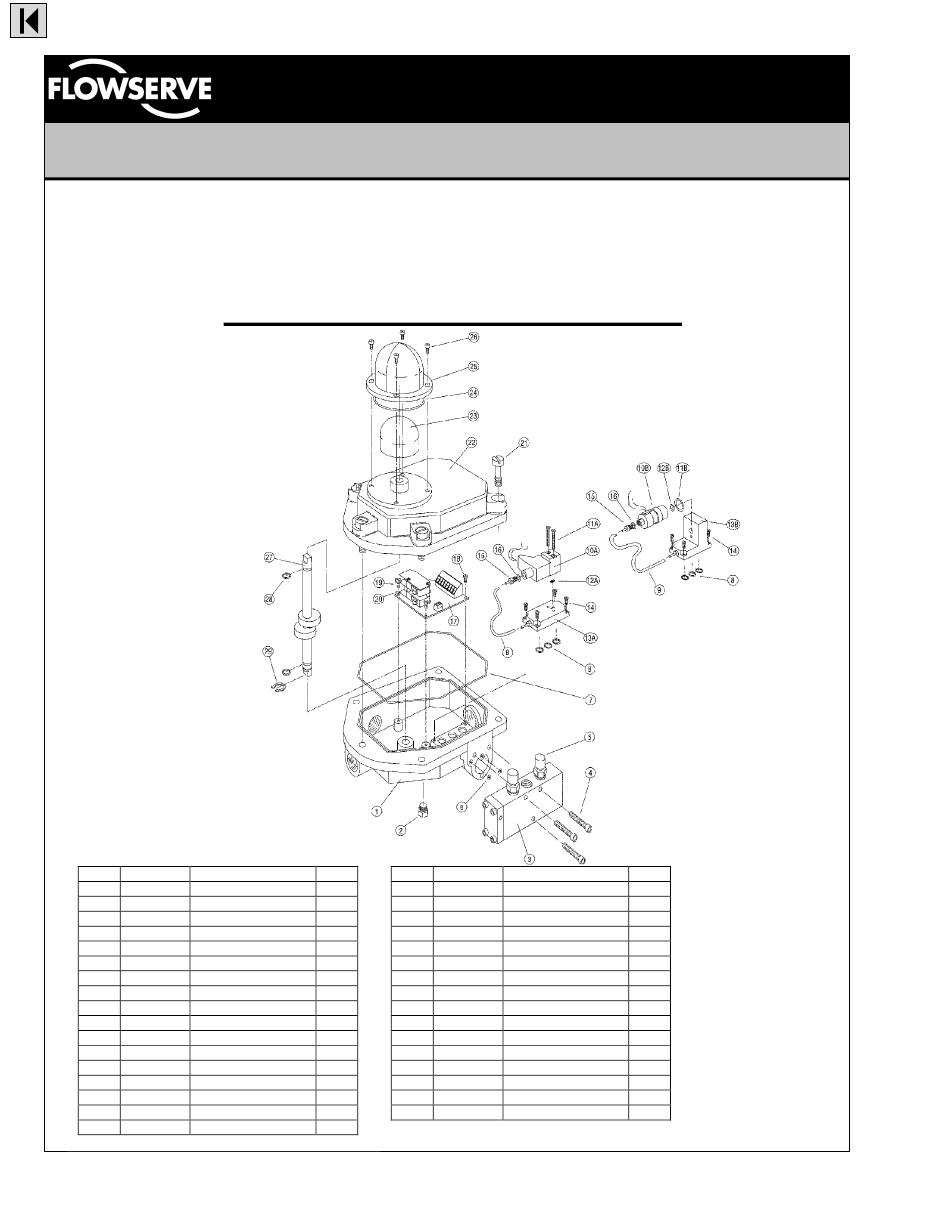

Bill of Material
Item Part # Description
1 XM0268 Housing Base
2 X00903 1/8" Muffler
3 X00878 Spool Valve
4 X00838 10-32 x 1 1/8 SHCS
5 1079352 Breather
6 X00892 O-Ring
7 X00814 O-Ring
8 X00779 O-Ring
9 X00837 1/8 x 2 Tubing
10A Varies 2 Watt Solenoid Pilot
11A 100158 4-40 x 1 PHS
12A X00893 O-Ring
13A XM0276 Manifold Block
10B Varies .67 Watt Solenoid Pilot
11B X00895 O-Ring
12B X00894 O-Ring
13B XM0292 Manifold Block
LML0002-0
©Flowserve Corporation
11444 Deerfield Road Phone: 513 489 7800
Cincinnati, Ohio 45242 Facsimile: 513 489 5243
www.flowserve.com Email: actuators@flowserve.com
Qty Item Part #
1 14 100167
1 15 X00410
1 16 X00410G
3 17 Varies
2 18 105915
2 19 103627
1 20 105626
3 21 X00801
1 22 XM0269
2 23 X00663
1 24 X00677
1 25 X00662
1 26 X00676
1 27 Varies
1 28 103603
1 29 101810
1
Automax Aviator
recommended for use with the Aviator™ ™ Spool
valve: Gulf Harmony 47, Mobil DTE Medium, Shell
Tellus 29, Texaco Rondo B, Sohivis 47 and Sunnis
921. Many other lubricants are acceptable providing
they do not contain detergents that will attack Buna
N or Viton Seals.
Description Qty
8-32 x ½ PHS 4
1/8" Tube Fittings 2
Gasket 2
Switch Card 1
#6-32 x ¼ PHS 2
Ground Screw 1
Cup Washer 1
5/16-18 bolts 5
Housing Cover 1
Rotor 1
O-Ring 1
Dome 1
#10-24 x ½ PHS 4
Shaft Assembly 1
O-Ring 2
Snap Ring 1
TM
Page 2 of 2
