Altronix Trove Installation Manual page 4

TCV2: Configuration of Altronix Power Supply, Sub-Assemblies and Openpath Modules
1. Push 5/16" pan head screws (provided) through the wholes in the backplane that match the pattern for Altronix Power Supply/
Charger(s) and/or sub-assemblies from the backside of backplane. Screw spacers onto screws.
Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 3, pg. 4).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 3a, pg. 4).
3. Mount appropriate Openpath boards into the correct positions by postioning pre-mounted spacers over appropriate holes on the
backplane and depressing down on board to secure spacer to the backplane (Fig. 3, pg. 4).
4. Fasten TCV2 backplane to Trove2 enclosure utilizing pan head screws (provided).
Access Controller Position Chart for the Following Openpath Modules:
Openpath
OP-ACC
OP-EX-4E
OP-EX-8E
OP-16EM

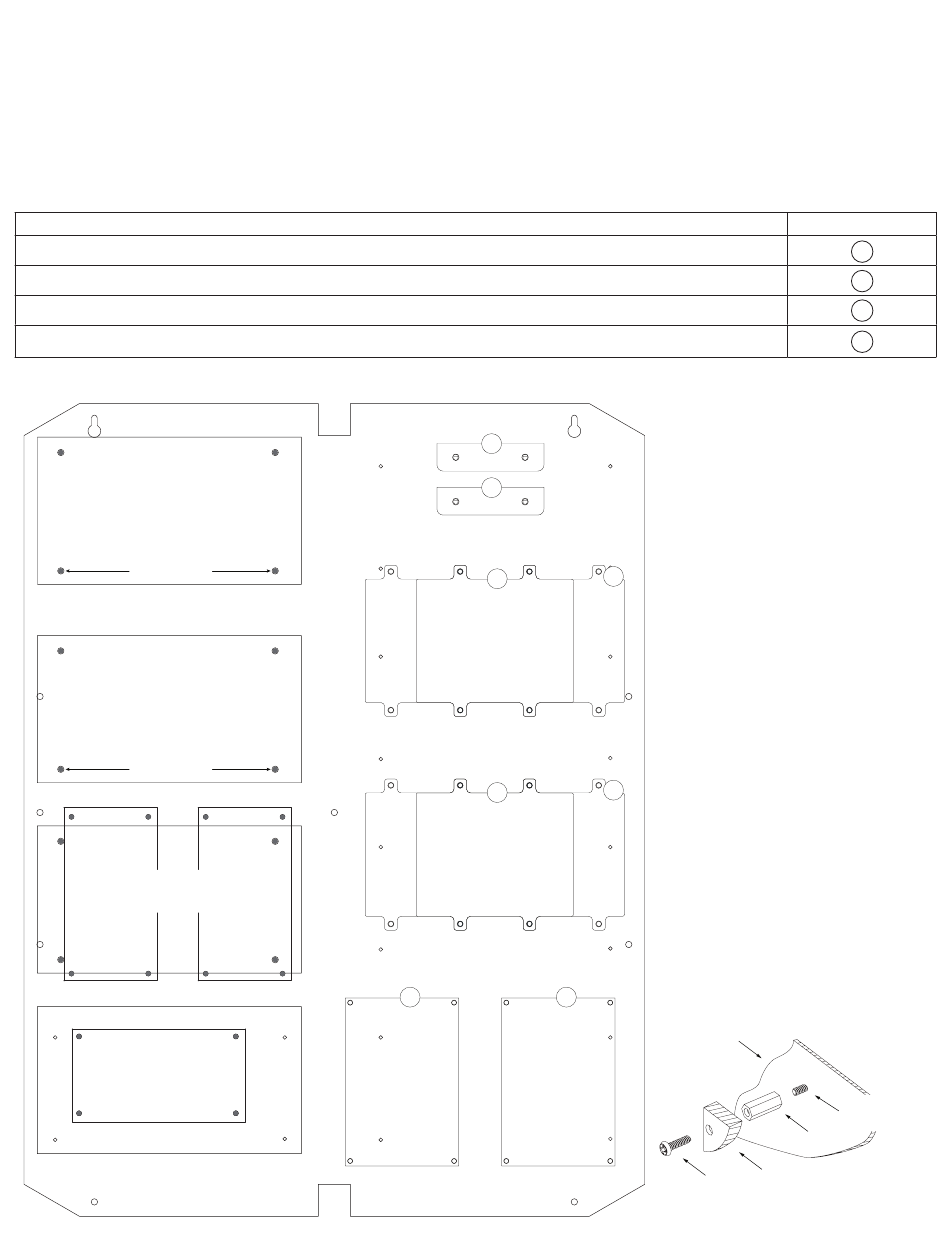

Fig. 3 - Trove2PH2/TCV2 Configurations
Altronix
Power Supply
Metal Spacer
Placement
Altronix
Power Supply
Metal Spacer
Placement
Altronix
Sub-Assemblies
Altronix
Sub-Assemby
- 4 -
A
A
B
B
D D
C
C
Backplane
Altronix
Sub-Assembly
Pan Head
Screw
Trove1PH1 / TC1 / Trove2PH2 / TCV2
Mounting Position
A
B
C
D
Fig. 3a
Pan Head Screw
(through backplane)
Spacer
