Altronix Trove Installation Manual page 3

TC1: Configuration of Altronix Power Supply, Sub-Assemblies and Openpath Modules
1. Push 5/16" pan head screws (provided) through the wholes in the backplane that match the pattern for Altronix Power Supply/
Charger and/or sub-assemblies from the backside of backplane. Screw spacers onto screws.
Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
2. Mount boards to spacers utilizing 5/16" pan head screws (provided) (Fig. 2a, pg. 3).
3. Mount appropriate Openpath boards into the correct positions by postioning pre-mounted spacers over appropriate holes on the
backplane and depressing down on board to secure spacer to the backplane (Fig. 2, pg. 3).
4. Fasten TC1 backplane to Trove1 enclosure utilizing pan head screws (provided).
Access Controller Position Chart for the Following Openpath Modules:
Openpath
OP-ACC
OP-EX-4E
OP-EX-8E
OP-16EM

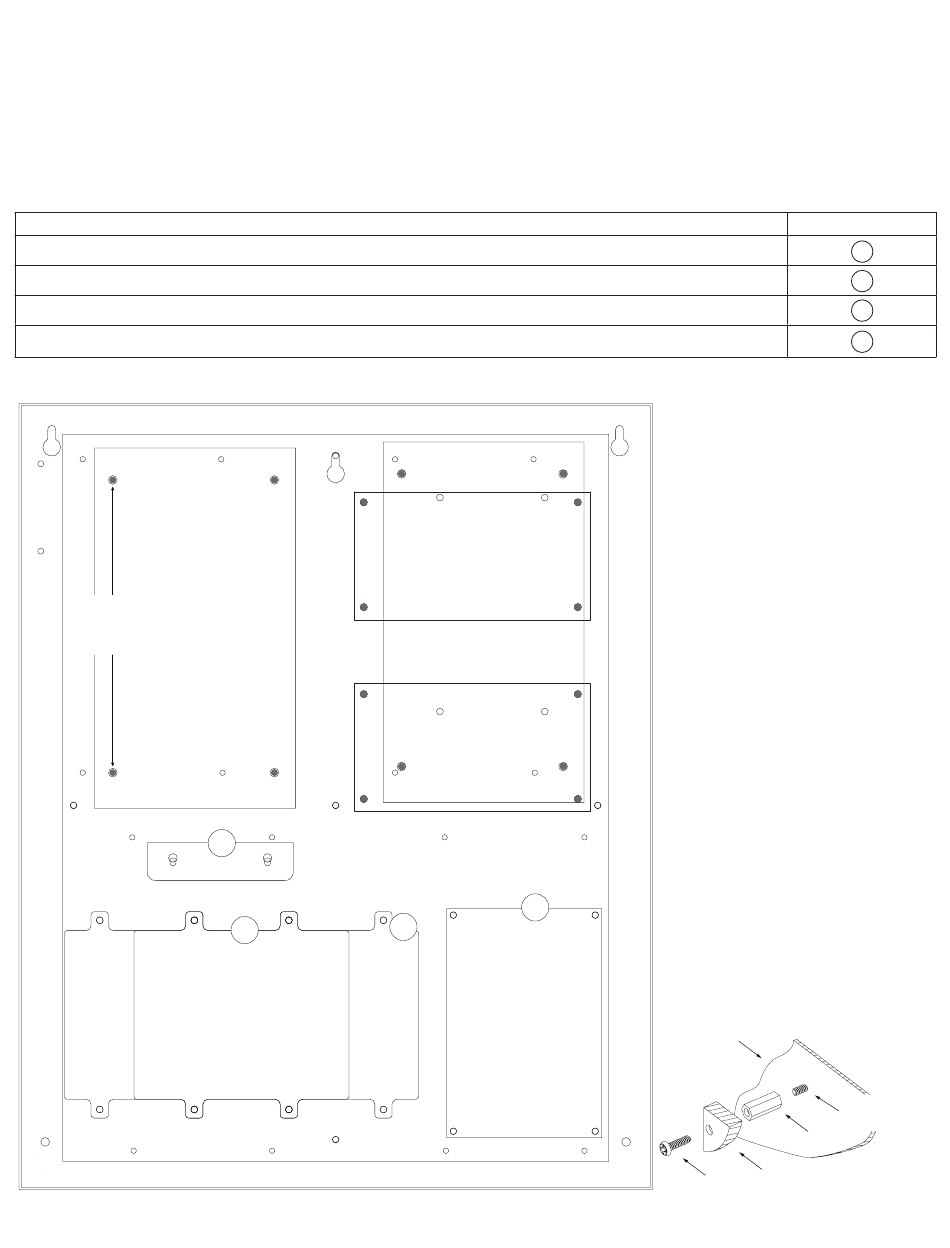

Fig. 2 - Trove1PH1/TC1 Configurations
Altronix
Metal
Power
Spacer
Supply
Placement
Trove1PH1 / TC1 / Trove2PH2 / TCV2
A
B
Altronix
Sub-Assemblies
D
C
Mounting Position
A
B
C
D
Backplane
Pan Head Screw
(through backplane)
Spacer
Altronix
Sub-Assembly
Pan Head
Screw
Fig. 2a
- 3 -
