Access & Power Integration
Trove1C1
- Trove1 enclosure with Altronix/CDVI backplane (TC1)
TC1
- Altronix/CDVI backplane only
Trove2CV2
- Trove2 enclosure with Altronix/CDVI backplane (TCV2)
TCV2
- Altronix/CDVI backplane only
Trove3CV3
- Trove3 enclosure with Altronix/CDVI backplane (TCV3)
TCV3
- Altronix/CDVI backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TCDVI011117
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix TROVE Trove1C1
Summary of Contents for Altronix TROVE Trove1C1
- Page 1 SIGNALING Access & Power Integration Trove1C1 - Trove1 enclosure with Altronix/CDVI backplane (TC1) - Altronix/CDVI backplane only Trove2CV2 - Trove2 enclosure with Altronix/CDVI backplane (TCV2) TCV2 - Altronix/CDVI backplane only Trove3CV3 - Trove3 enclosure with Altronix/CDVI backplane (TCV3) TCV3 - Altronix/CDVI backplane only Installation Guide More than just power.™...
-
Page 2: Specifications

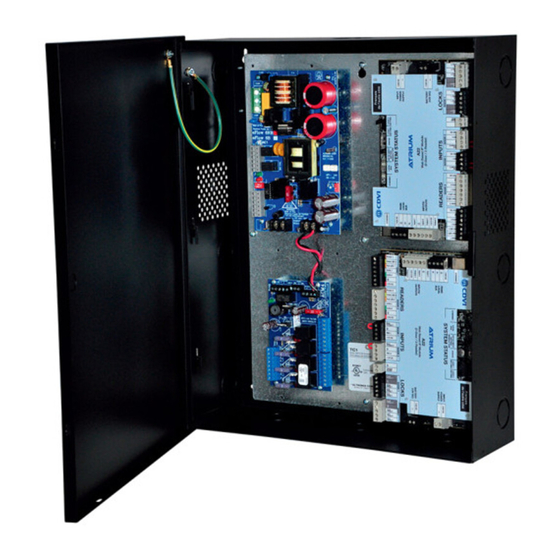

Overview: Trove1C1, Trove2CV2 and Trove3CV3 accommodate various combinations of CDVI boards with or without Altronix power supplies and accessories for access control systems. Specifications: • 16 Gauge backplane and enclosure with ample knockouts for convenient access. Trove1C1 Trove2CV2 Trove3CV3 Trove1 enclosure with... - Page 3 Sub-Assembly Boards and CDVI Modules Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 2, pg. 3). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 2, pg. 3).
- Page 4 Sub-Assembly Boards and CDVI Modules Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 3, pg. 4). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 3, pg. 4).
- Page 5 Sub-Assembly Boards and CDVI Modules Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 4, pg. 5). Fasten metal spacers in the correct locations to provide proper grounding, see below (Fig. 4, pg. 5).
- Page 6 Notes: - 6 - Trove / CDVI...
- Page 7 TC1 Dimensions 16.625” x 12.5” x 0.3125” (422.3mm x 317.5mm x 7.9mm) 12.5” (317.5mm) 0.5” (12.7mm) 0.5” (12.7mm) 6.25” (158.75mm) Trove / CDVI - 7 -...
- Page 8 Trove1C1 Enclosure Dimensions (H x W x D): 18” x 14.5” x 4.625” (457mm x 368mm x 118mm) 14.5” (321.3mm) 7.25” (184.2mm) 1.45” (36.8mm) 1.95” (49.5mm) 4.5” (114.3mm) 13.0” (330.2mm) 1.25” (31.8mm) 1.25” (31.8mm) 1.5” (38.1mm) 1.5” (38.1mm) 0.6” (15.2mm) 0.57”...
- Page 9 TCV2 Dimensions 25.375” x 19.375” x 0.3125” (644.5mm x 482.6mm x 7.9mm). 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) Trove / CDVI - 9 -...
- Page 10 Trove2CV2 Enclosure Dimensions (H x W x D): 27.25” x 21.75” x 6.5” (692.15mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77” 1.125” (28.3mm) (45mm) 2.415”...
- Page 11 TCV3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 2.5” (63.5mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) Trove / CDVI - 11 -...
- Page 12 2” (50.8mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. MEMBER IITrove / CDVI K04S - 12 -...
