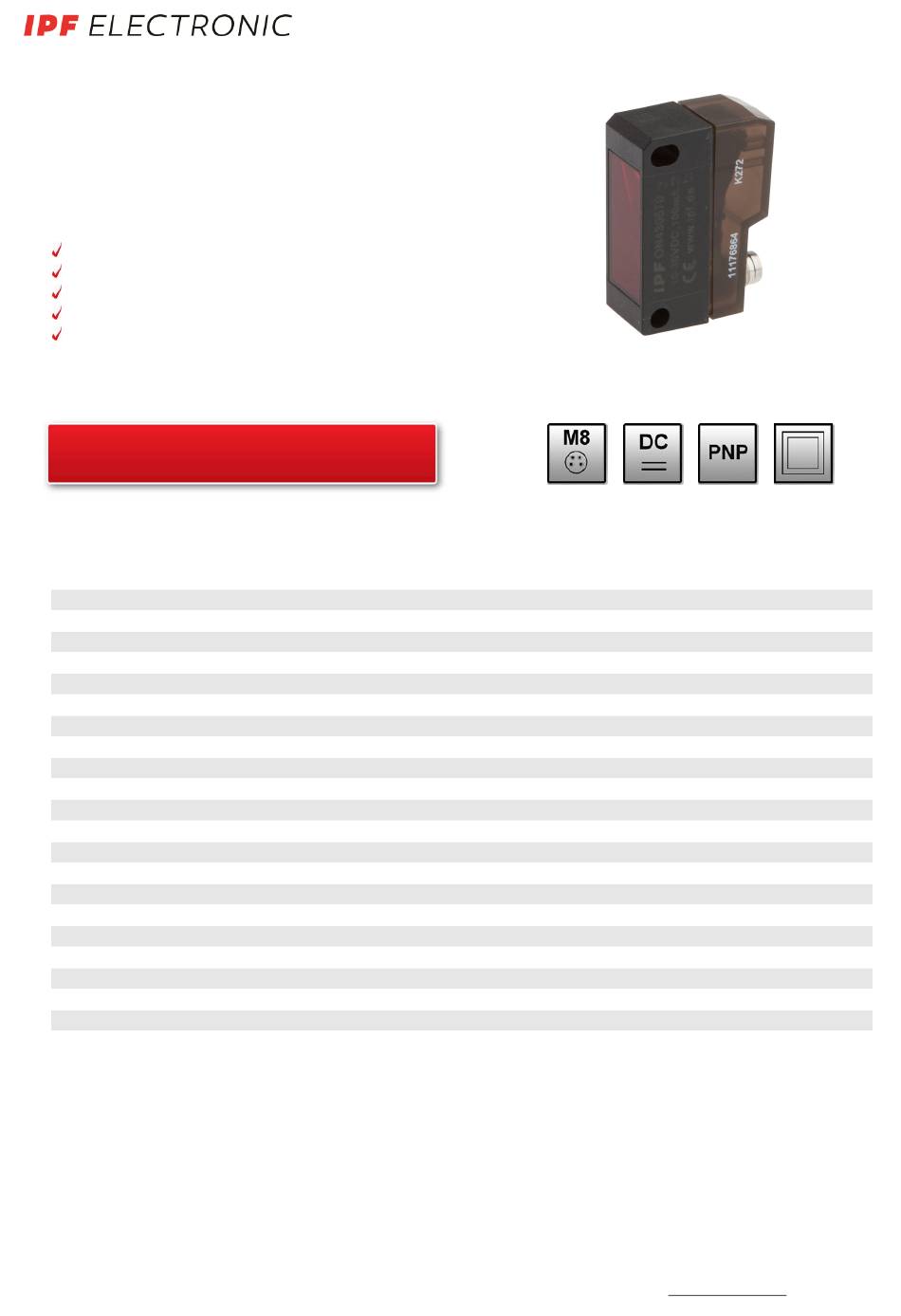

ipf electronic ON430570 Manual

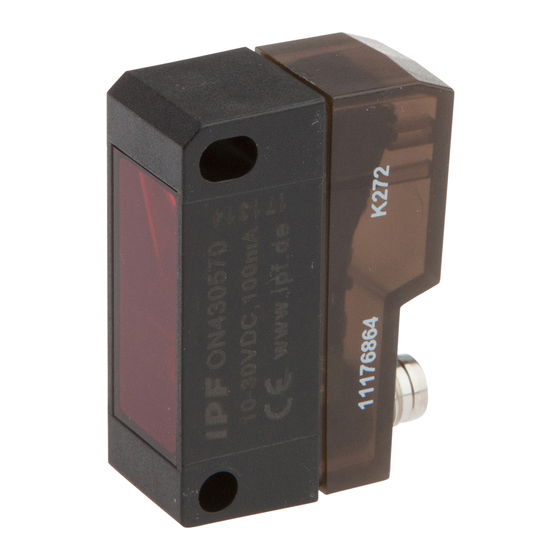

ON430570
operating distance
robust plastic housing, compact design
Teach in-based setting
LED display for fine adjustment
reduction in the level of reciprocal optical interference
connection with 4-pin M8-connector
new: works like a retro-reflective
sensor - but without a reflector

Technical data

version
background position (Sde)
detection range (Sa)
operating voltage U
B
current consumption (w/o load)
output current (max. load)
output signal
voltage drop (max. load)
reaction- /decay time
sampling frequency
short-circut protection
reverse polarity protection
display (signal)
display (status) / setting control
transmitting element
light spot size
housing material
front screen material
system of protection
operating temperature
connection
max. tightening torque

description:

These completely new through-beam sensors work according to the principle established with the retro-reflective
sensor. With these devices however, no retro-reflector is used. Any flat surface can be used as a reflector, e.g. the wall
of a piece of machinery.
This is `teached in' as a background item, via the Teach-In line (white wire, PIN 2). Each object that is located between
the sensor and background position is detected. This induces a change to the signal at the switch output. The system is
highly nonsensitive to soiling, however the background should not change whilst the device is running.
ipf electronic gmbh • Rosmarter Allee 14 • 58762 Altena
800mm
object recognition
50 ... 800mm
96% of Sde
10 ... 30V DC
≤ 35mA
≤ 100mA
push-pull, no/nc
≤ 2V DC
≤ 1.8msec
≤ 270Hz
+
+
green LED
red LED
red LED, 660nm, pulsed
Ø 15mm at 800mm
plastic (ASA-MABS)
PMMA
IP67 (EN 60529)
-30°C ... +60°C
M8-connector, 4-pin
0.8Nm
