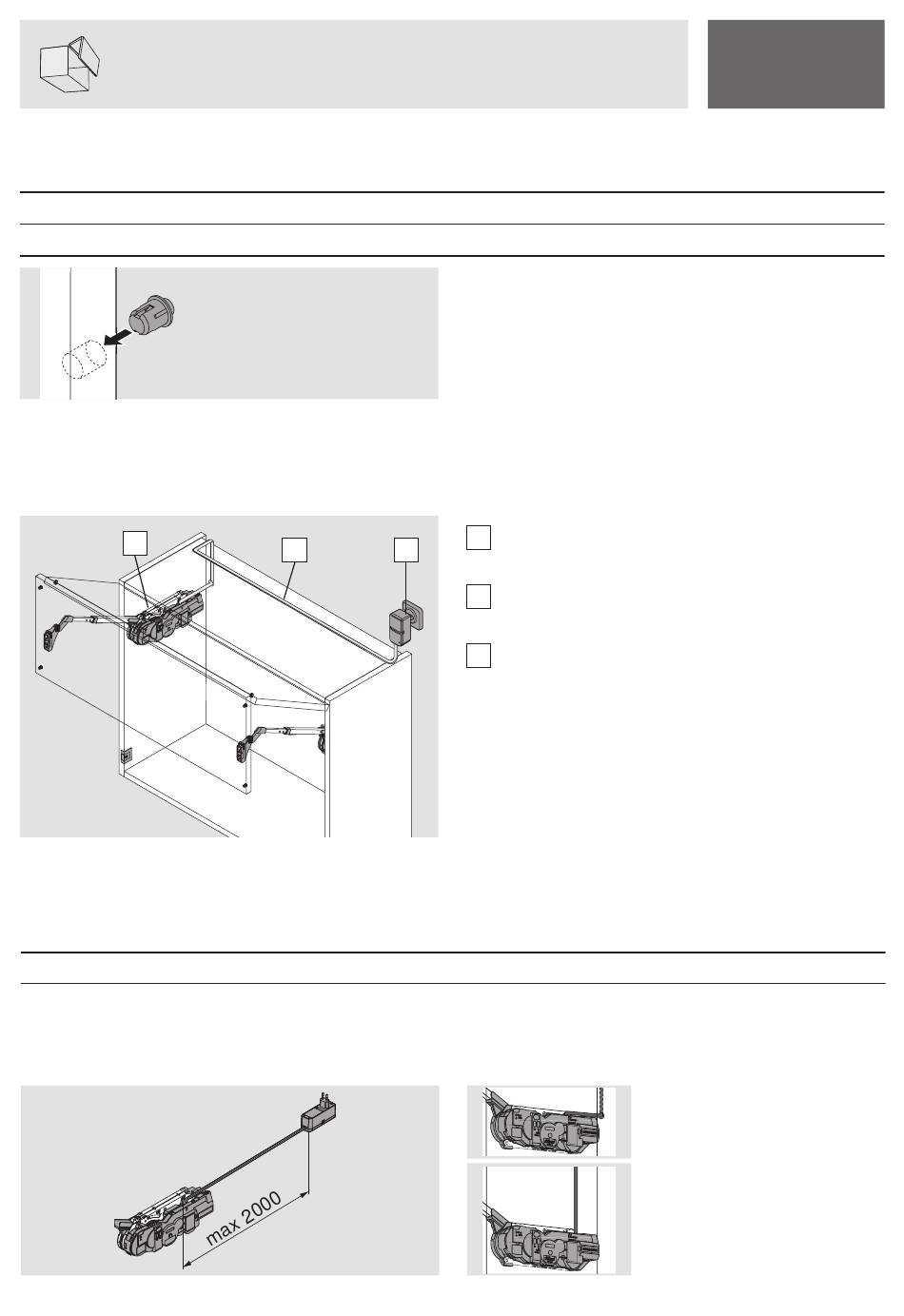

Blum distance bumper

NOTE
➢ Do not glue the Blum distance bumper

Cabling overview drawing

3

Cable diagram

NOTE
➢ Only one drive unit may be connected per plug-in transformer�
➢ The total cable length of 2 metres must not be exceeded�
SERVO-DRIVE for AVENTOS
2 1
Assembly in the front
Aluminium frame: assembly in the cabinet side�
1
Blum plug-in transformer with LED display
2 Distribution cable
3 Drive unit
EN
Back cabling
Upper cabling
11
