SERVO-DRIVE uno
EN
www.blum.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SERVO-DRIVE uno and is the answer not in the manual?

Questions and answers

Related Manuals for BLUM SERVO-DRIVE uno

Summary of Contents for BLUM SERVO-DRIVE uno

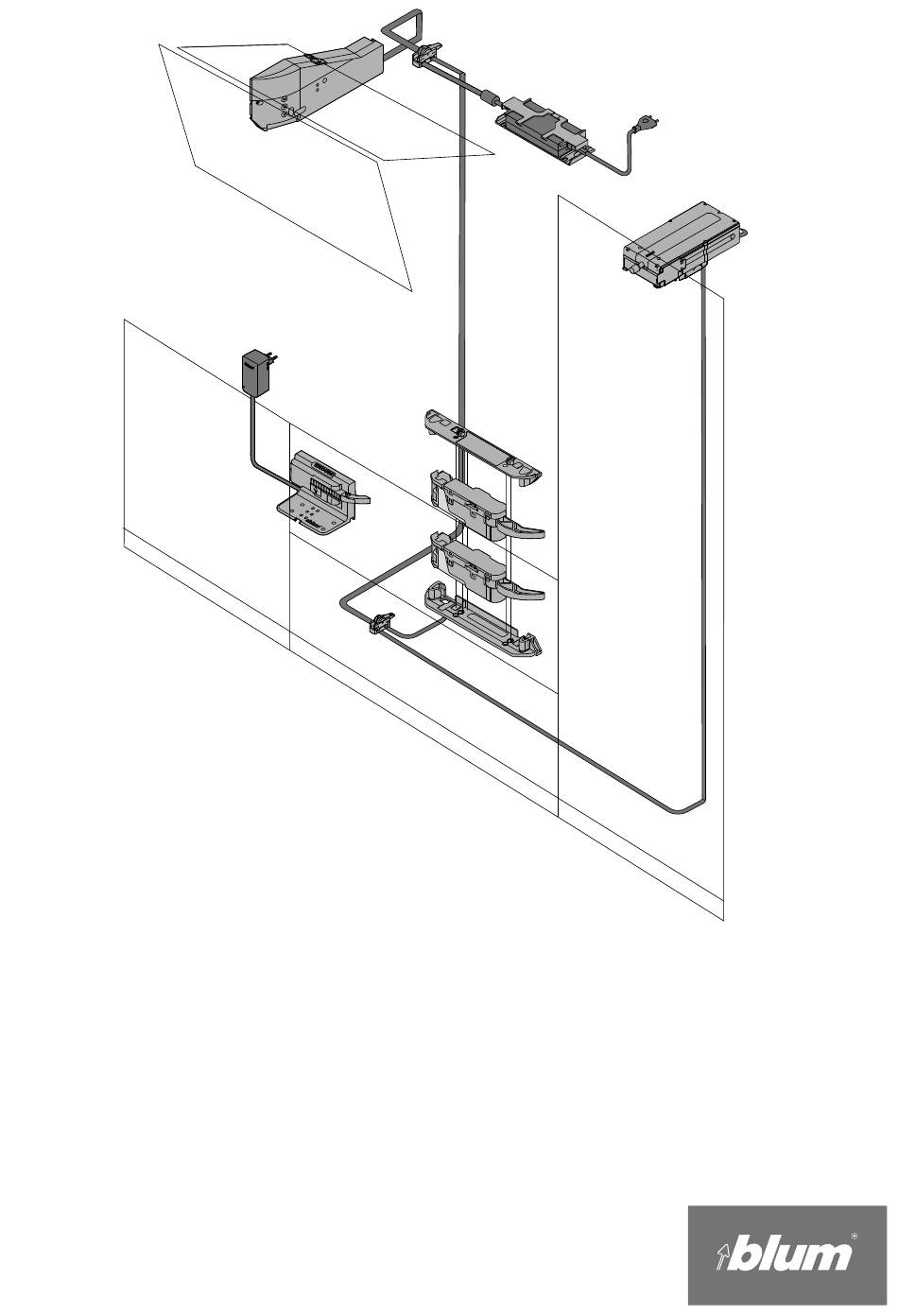

  • Page 1 SERVO-DRIVE uno www.blum.com...

  • Page 2: Table Of Contents

    Technical data ............................14 About these instructions Thank you for your purchase. SERVO-DRIVE, the electrical motion support system by Julius Blum GmbH, is a high-quality product that simplifies everyday kitchen tasks. To safely enjoy the comfort of SERVO-DRIVE, please note the following: ➢...

  • Page 3: Warning Signs And Danger Symbols

    • The furniture must be firmly secured to the wall so that it cannot topple over. Technical data specifications can be found in the Blum sales documentation. For more information, please see your distributor. Julius Blum GmbH is not liable for any other use.

  • Page 4: Safety

    Nevertheless, there will still be certain residual risks if the information contained in this instruction leaflet is not observed. Please be aware that Julius Blum GmbH is not responsible for incidental or consequential damages that may arise due to non-compliance with this instruction leaflet.
  • Page 5 • Only qualified specialists may install or replace SERVO-DRIVE components, modify the position of the SERVO-DRIVE transformer or modify the cabling. • Please make sure that the Blum distance bumper is attached to the front. NOTE To ensure that drawers cannot be activated unintentionally, we rec- ommended connecting the SERVO-DRIVE transformer to a switched outlet.
  • Page 6 SERVO-DRIVE uno Instruction leaflet SERVO-DRIVE transformer safety distance NOTE A safety distance of 30 mm must be maintained for air circulation; other- wise, there is a risk that the SERVO-DRIVE transformer could overheat. Children WARNING Opening drawers may pose a risk of injury to children! ➢...
  • Page 7 SERVO-DRIVE uno Instruction leaflet Cabinet care and cleaning WARNING Danger of death from electric shock! There is a danger of electric shock if fluids penetrate the SERVO-DRIVE transformer. ➢ Before cleaning the front, turn off the switched outlet to which the SERVO-DRIVE transformer is connected.
  • Page 8 SERVO-DRIVE uno Instruction leaflet SERVO-DRIVE transformers SERVO-DRIVE transformers provide power to the drive unit. SERVO-DRIVE transformer function can be checked via the operating mode indicator (LED). Operating mode display (LED) Serial tag NOTE ➢ Improper use may cause SERVO-DRIVE for pull-out systems to wear prematurely! ➢...
  • Page 9 SERVO-DRIVE uno Instruction leaflet...

  • Page 10: Servo-Drive Uno

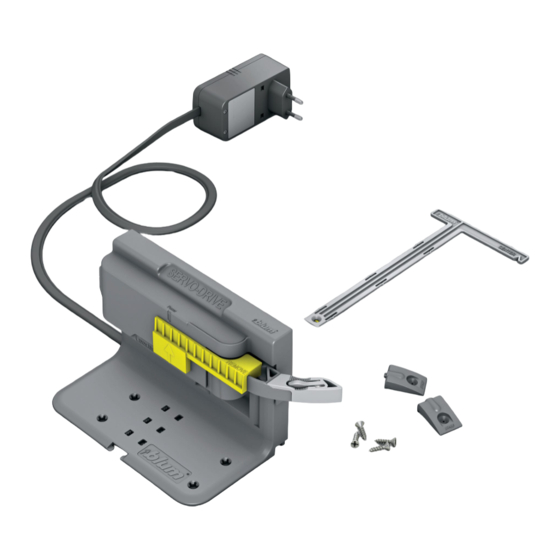

    SERVO-DRIVE uno Instruction leaflet SERVO-DRIVE uno SERVO-DRIVE uno supports the opening of drawers. Orientation diagram: bottom mount waste bin solutions SERVO-DRIVE unit pre-mounted: Attachment bracket Drive unit Transport protection Protection against dripping water Blum transformer including cable Assembly device Blum-Distance bumper SERVO-DRIVE uno for TANDEMBOX...
  • Page 11 Leaning on the drawer, for example, will not open it. The following parameters must be observed to ensure the error-free functioning of SERVO-DRIVE: • Blum distance bumpers must be attached to the front to ensure the required trigge- ring signal (2 mm) between the pull-out unit and the cabinet.

  • Page 12: Simplified Eu Declaration Of Conformity

    Julius Blum GmbH hereby declares that the radio equipment types 23P5020 and Z10C5007 conform to the Directive 2014/53/EU. Julius Blum GmbH hereby declares that the electrical and electronic article types Z10ZE000 and Z10ZC000 conform to the Directive 2014/30/EU. Julius Blum GmbH hereby declares that the Blum transformer types Z10NA300, Z10NA40x*, Z10NE030 and Z10NE040 conform to the directive 2014/35/EU and Directive 2014/30/EU.

  • Page 13: Disposing Of Electrical And Electronic Appliances

    Electrical and electronic appliances must not be disposed of with household waste at the end of their service life. Ask your local authority for information on how to proceed. Blum electrical and electronic appliances meet the requirements of the WEEE Directive 2012/19/EU.

  • Page 14: Technical Data

    The appliances must only be used in dry, closed rooms. All SERVO-DRIVE appliances are of protec- tion class III and must only be supplied with safety extra-low voltage (SELV). They are only to be used with the transformers provided by Blum. SERVO-DRIVE plug-in transformer Z10NA300 Input voltage: ....................
  • Page 15 SERVO-DRIVE uno Instruction leaflet SERVO-DRIVE plug-in transformer Z10NA40x* Input voltage: ....................100–240 V AC / 50–60 Hz Input current: ..........................2.0 A Output voltage: ........................24.0 V DC Output current: ..........................1.0 A Output power: ..........................24.0 W Average active efficiency: ......................≥ 86.4 % Efficiency at low load (10%): ....................
  • Page 16 Blum partners worldwide can be found at: www.blum.com/addresses Julius Blum GmbH 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-mail: info@blum.com www.blum.com Our sites in Austria, Poland and China are certified to the international standards mentioned below.
