AVENTOS HF

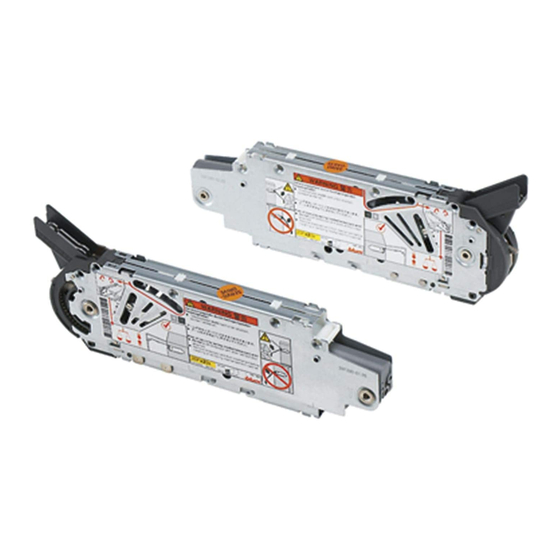

Lift mechanism set
Cover set
Telescopic arm set
Narrow aluminum door hardware set
72T550A.TL▀—▀CLIP▀top▀free▀swing▀narrow▀alum.▀top▀door▀hinge▀(qty▀2)
▀
▀
78Z550AT▀—▀CLIP▀top▀narrow▀aluminum▀bottom▀door▀hinge▀(qty▀2)
▀
▀
175H3100▀—▀Top▀door▀mounting▀plate▀(qty▀2)
▀
▀
175H5A00▀—▀Bottom▀door▀mounting▀plate▀(qty▀2)
▀
▀
175H5B00▀—▀Telescopic▀arm▀mounting▀plate▀(qty▀2)
▀
▀
669.110▀—▀▀Aluminum▀screw▀for▀the▀bottom▀door▀mounting▀plate,▀bottom▀hinge,▀▀
▀
▀
top▀hinge▀and▀telescopic▀arm▀mounting▀plate▀(qty▀18)
NOTE:
Three▀hinges▀and▀mounting▀plates▀are▀required▀for▀cabinet▀widths▀over▀1219▀(48")▀or▀combined▀▀
door▀weight▀of▀26.5▀lb▀
Narrow▀aluminum▀door▀hardware▀set▀▀
Installation▀screw▀for▀top▀mounting▀plate
Narrow aluminum
frame door application
Lift▀mechanism▀(qty▀2)
▀
▀
#7▀x▀35▀mm▀(1-3/8")▀wood▀screw▀(qty▀8)
▀
▀
Power▀factor▀
85▀▀ —▀▀230▀(1▀lift▀mechanism▀req.)
231▀ —▀▀470
471▀ —▀▀880
780▀ —▀▀1440
1401▀—▀▀2300▀(3▀lift▀mechanisms▀req.)
Right▀and▀left▀cover▀plate
▀
▀
Non-handed▀cover▀cap▀(qty▀2)
▀
▀
Cover▀set
Telescopic▀arm▀(qty▀2)
▀
▀
Cabinet▀heights
479▀(18-7/8")▀ —▀ 558▀(22")
558▀(22")▀
—▀ 686▀(27")
686▀(27")▀
—▀ 889▀(35")
889▀(35")▀
—▀ 1067▀(42")
Subject to technical modifications without notice. © 2018
Part▀no.
20F2200.N5
20F2200.N5
20F2500.N5
20F2800.N5
20F2800.N5
▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀
▀ Part▀no.
20F8000.NA
Part▀no.
20F3200.01
20F3500.01
20F3800.01
20F3900.01
Part▀no.
78Z550ATA6
606N or 606P
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVENTOS HF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BLUM AVENTOS HF

Summary of Contents for BLUM AVENTOS HF

  • Page 1 AVENTOS HF Narrow aluminum frame door application Lift mechanism set Lift▀mechanism▀(qty▀2) ▀ ▀ #7▀x▀35▀mm▀(1-3/8”)▀wood▀screw▀(qty▀8) ▀ ▀ Power▀factor▀ Part▀no. 85▀▀ —▀▀230▀(1▀lift▀mechanism▀req.) 20F2200.N5 231▀ —▀▀470 20F2200.N5 471▀ —▀▀880 20F2500.N5 780▀ —▀▀1440 20F2800.N5 20F2800.N5 1401▀—▀▀2300▀(3▀lift▀mechanisms▀req.) Cover set Right▀and▀left▀cover▀plate ▀ ▀ ▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀▀ Non-handed▀cover▀cap▀(qty▀2) ▀...
  • Page 2 Assembly WARNING Risk▀of▀injury▀from▀spring-loaded▀arm Do▀not▀push▀arm▀assembly▀down▀or▀leave▀in▀the▀down▀position ▀ ▀ Remove▀mechanism▀before▀installing▀or▀removing▀cabinet ▀ ▀ Locating pin locations Ø5 TR▀=▀Top▀reveal TDH▀=▀Top▀door▀ht. Top▀door▀height▀ (TDH) TDH x .6 - 28 + TR 231 to 271 TDH x .6 - 57 + TR 272 to 531 Part▀no.▀ 65.1051.02 ▀▀Universal▀individual▀template▀is▀available▀for▀pre-boring▀5▀mm▀locating▀pins Subject to technical modifications without notice.
  • Page 3 Attach the lift mechanism Align▀the▀lift▀mechanism▀in▀the▀cabinet▀using▀the▀5 mm▀locator▀pins▀and▀attach▀the▀mechanism▀with▀the▀four▀ wood▀screws▀provided. 5 min. Ø5 ▀▀ #7▀x▀35▀mm▀(1-3/8")▀wood▀screws▀(qty▀4) Attach the telescopic arms WARNING: Risk of injury from spring loaded arm. Attach▀ telescopic▀ arms▀ by▀ clipping▀ them▀on▀in▀the▀fully▀upright▀position. Subject to technical modifications without notice. © 2018...
  • Page 4 Assembly Top door hinge planning 1. 7 Part▀no.▀ 72T550A Aluminum▀door▀hinge 175H3100 In-line▀mounting▀plate Bottom door hinge planning Part▀no.▀ Aluminum▀door▀bottom▀hinge 78Z550AT Bottom▀door▀mounting▀plate 175H5A00 Subject to technical modifications without notice. © 2018...

  • Page 5: Frame Preparation

    Frame preparation 1 1 . Bottom door planning Top▀door▀ height▀(TDH) 231▀to▀271 TDH x .5 + 70 272▀to▀531 TDH x .5 + 47 NOTE: 3▀hinges▀are▀ required▀for▀cabinet▀width▀ over▀1219 mm (48")▀or▀26.5▀ lb.▀combined▀door▀weight Part▀no.▀ Telescopic▀arm▀mounting▀plate 175H5B00 Subject to technical modifications without notice. © 2018...
  • Page 6 Assembly Attach the top door to the cabinet Determine▀ the▀ locations▀ of▀ mounting▀ plates▀ and▀ hinges▀ and▀ attach▀ the▀ hardware▀ to▀ cabinet▀doors.▀Attach▀top▀door▀ to▀the▀cabinet. Attach the bottom door Attach▀bottom▀door▀to▀the▀top▀door▀and▀ attach▀the▀telescopic▀arms. Subject to technical modifications without notice. © 2018...
  • Page 7 Finalize the tension adjustments Use▀#2x2▀POZI▀bit Close▀and▀flush▀doors▀to▀cabinet.▀Open▀and▀close▀door▀to▀test▀closing▀force.▀Open▀door▀ and▀adjust▀tension▀screws▀on▀both▀lift▀mechanisms▀with▀a▀power▀drill.▀Test▀door▀again▀ and▀repeat▀until▀desired▀function▀is▀achieved. Tension▀adjustment▀should▀be▀the▀same▀on▀both▀lift▀mechanisms. Finalizing the door adjustments ±▀3▀mm ±▀2▀mm +▀3/-▀2▀mm ±▀2.5▀mm ±▀2▀mm ±▀2▀mm 1.▀▀Adjust▀each▀top▀door▀hinge▀and▀mounting▀plate▀ 2.▀▀Adjust▀each▀bottom▀door▀hinge▀and▀mounting▀ to▀properly▀align▀the▀top▀door▀to▀the▀cabinet. plate▀to▀properly▀align▀doors▀to▀the▀cabinet▀and▀ to▀the▀top▀door. NOTE:▀Although▀not▀illustrated▀here,▀telescopic▀arm▀mounting▀plates▀can▀also▀be▀adjusted▀horizontally▀±▀2▀ mm▀if▀needed. Subject to technical modifications without notice. © 2018...
  • Page 8 Assembly Adjust and lock telescopic arms Open▀door▀ enough▀to▀ lock▀levers 1.▀Close▀and▀flush▀doors▀to▀cabinet.▀While▀ 2.▀Slightly▀ open▀ door▀ and▀ lock▀ the▀ pressing▀on▀the▀bottom▀of▀the▀top▀door,▀pull▀ telescopic▀arms▀into▀position▀using▀the▀ the▀bottom▀door▀open▀one▀inch.▀ levers▀as▀shown.▀ Attach cover caps Attach▀the▀left▀and▀right▀cover▀plates▀ to▀each▀lift▀mechanism▀then▀attach▀the▀ symmetrical▀cover▀caps. Subject to technical modifications without notice. © 2018...
  • Page 9 Removal WARNING Risk▀of▀injury▀from▀spring-loaded▀arm Do▀not▀push▀arm▀assembly▀down▀or▀leave▀in▀the▀down▀position ▀ ▀ Remove▀mechanism▀before▀installing▀or▀removing▀cabinet ▀ ▀ Removing the covers Removing the door Release▀both▀arms▀and▀gently▀rest▀ the▀top▀door▀on▀the▀loose▀arms.▀The▀ tension▀will▀hold▀the▀doors▀up▀for▀the▀ next▀step. Subject to technical modifications without notice. © 2018...
  • Page 10 Removing the doors 1.▀Hold▀the▀bottom▀door▀while▀unclipping▀ 2.▀ Hold▀ the▀ top▀ door▀ while▀ detaching▀ the▀bottom▀hinge. the▀top▀▀hinges.▀Simply▀unclip▀them▀if▀ using▀the▀CLIP▀top▀hinges▀or▀unscrew▀ them▀if▀using▀COMPACT. Removing the telescopic arms Using▀a▀screwdriver,▀depress▀the▀ If▀transporting▀the▀cabinet▀to▀the▀jobsite,▀ release▀tabs▀to▀remove▀telescopic▀arms. stop▀here.▀Lift▀mechanisms▀can▀stay▀inside▀ the▀cabinet▀for▀easy▀transport. Subject to technical modifications without notice. © 2018...

  • Page 11: Other Information

    .063 .094 .125 .156 .188 .219 .281 .313 .344 .375 .406 .438 .469 2▀ .531 13.5 .563 .594 .625 .656 .688 17.5 .719 .781 .813 20.5 .844 .875 Blum,▀ Inc. .906 800-438-6788 sales.us@blum.com .938 blum.com .969 24.5 25.4 Subject▀to▀technical▀modifications▀without▀notice.▀©▀2018 INST-AVT03-04.15...
