SERVO-DRIVE supports the opening and closing of lift systems and may only be used under the following conditions: • in dry, enclosed rooms • in combination with AVENTOS lift systems from Julius Blum GmbH within the permitted technical specifications • in combination with a Blum plug-in transformer�...
SERVO-DRIVE complies with current safety standards� Nevertheless, there are certain risk factors if these installation instruc- tions are not followed� Please be aware that Julius Blum GmbH is not responsible for incidental or consequential damages that may arise if these installation instructions are not followed�...
Page 5
• Maintain the safety distances to the Blum plug-in transformer that are listed in the installation instructions� • Make sure that there can be no ingress of moisture into the Blum plug-in transformer and drive unit� • Before starting repair or maintenance work, switch off the outlet to which the Blum plug-in transformer is connected or pull out the mains plug�...
• Only use original spare parts from Julius Blum GmbH� • Blum components designed for this purpose are the only devices that should be connected to the Blum plug-in transformer� • The cable from the plug-in transformer to the drive unit may not be extended�...
Blum plug-in transformer safety distance NOTE A safety distance of 30 mm must be maintained for air circulation; otherwise, there is a risk that the Blum plug-in transformer could overheat� ➢ The dimensions in the drawing take into account the safety distance�...

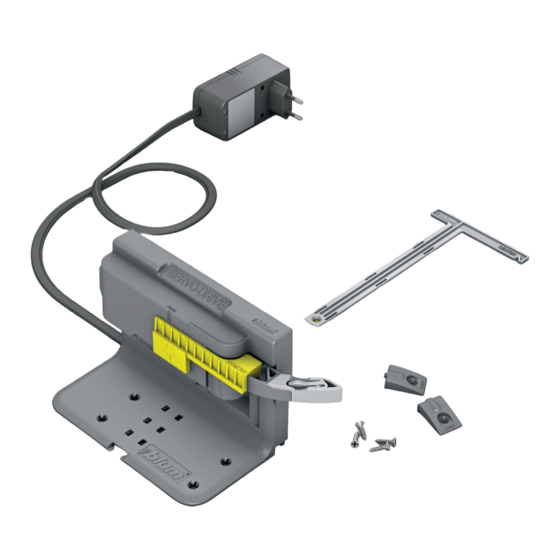

Overview drawing Lift mechanism Telescopic arm or lever arm Drive unit with LED display Cover cap SERVO-DRIVE switch with battery display Blum plug-in transformer with LED display Blum distance bumper Front Cabinet Function Electric motion support system The SERVO-DRIVE switch triggers the automatic opening and closing action of SERVO-DRIVE for AVENTOS�...
SERVO-DRIVE for AVENTOS Distribution cable assembly and connecting node assembly AVENTOS HF / HS / HL / HK ✓ ✓ Drive unit adjustment AVENTOS HF / HS / HL AVENTOS HK Drive unit assembly NOTE ➢ Before SERVO-DRIVE for AVENTOS assembly, the lift mechanisms must be set so that the front remains open in different positions�...
AVENTOS HF / HS / HL NOTE ✓ ➢ The drive unit can only be locked when the orange slide is no longer visible in the view window� AVENTOS HK NOTE The drive unit can only be locked when the drive unit is inserted completely into the lift mechanism� SERVO-DRIVE switch assembly...
Blum distance bumper NOTE ➢ Do not glue the Blum distance bumper Assembly in the front Aluminium frame: assembly in the cabinet side� Cabling overview drawing Blum plug-in transformer with LED display Distribution cable Drive unit Cable diagram NOTE ➢ Only one drive unit may be connected per plug-in transformer�...
Start-up E-training Lights up continuously Flashes Activating the SERVO-DRIVE switch Setting up the wireless connection between the SERVO-DRIVE switch and the drive unit� The SERVO-DRIVE switch can be activated with only one drive unit� Press the <SWITCH> button until the LED display flashes green� Press the SERVO-DRIVE switch until the LED display lights up green continuously�...
Page 13
Operation Lights up continuously Flashes Carrying out reference run The drive unit recognises the required parameters using the refe- rence run� Reference run is required: LED flashes Close the front manually Press on front: the reference run starts automatically Front opens and closes twice automatically: under no circumstances should you try to manually interrupt or stop the procedure�...
Page 14
E-training Lights up continuously Flashes Activating synchronisation Up to three drive units can be synchronised allowing them to move simultaneously� This function is required for several cabinets with a uniform front� Activating the SERVO-DRIVE switch → see A 1–3� Press the <SYNC> button for the first drive unit until the LED display flashes green�...
Page 15
E-training Lights up continuously Flashes Activating collision avoidance To avoid the collision of fronts, drive units (max� 6) are linked so that only one front can be opened at a time� A front is prevented from opening as long as a linked front remains open� Activating the SERVO-DRIVE switch →...
Reset Motion Resets the reference run and enables a new reference run to be started� Press the <Reset Motion> button using a pen (for at least 3 seconds) until the LED display flashes quickly� Reset Wireless Deactivates all functions: all activated SERVO-DRIVE switches of the respective drive unit are deactivated�...
SERVO-DRIVE for AVENTOS WARNING Danger of electric shock ➢ Before starting repair or maintenance work, switch off the outlet to which the Blum plug-in transformer is connected or pull out the mains plug� Removal Distribution cable...
Page 18
Julius Blum GmbH Beschlägefabrik 6973 Höchst, Austria Tel.: +43 5578 705-0 Fax: +43 5578 705-44 E-Mail: info@blum.com www.blum.com...
