Summary of Contents for VIRTUFIT Easy Fit

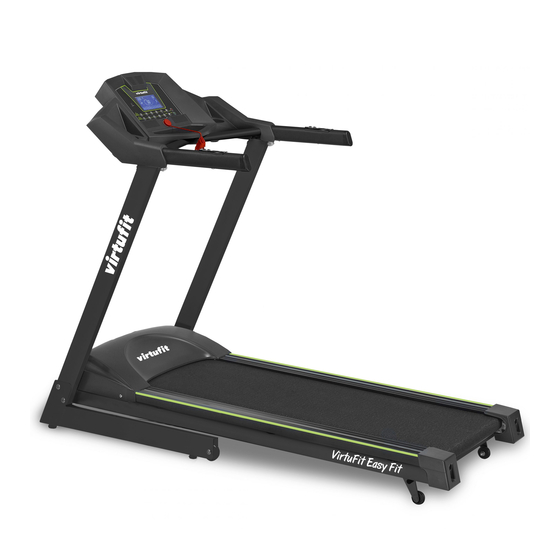

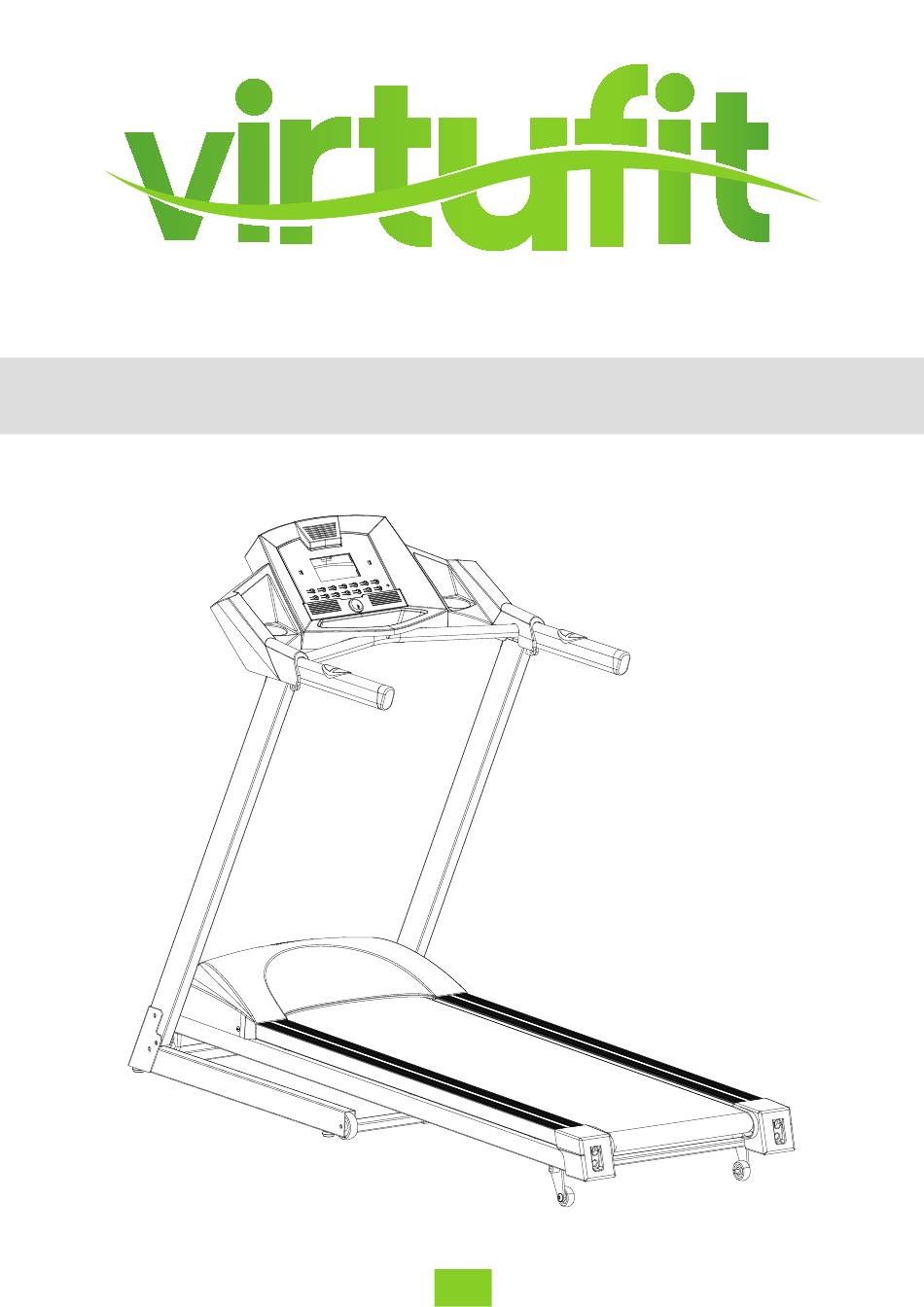

- Page 1 Easy Fit Treadmill User manual all the screw well.
- Page 2 TRAIN ON HEARTRATE 15 - 16 MAINTENANCE MAINTENANCE 17 - 18 TROUBLE SHOOTING TROUBLE SHOOTING 19 - 23 CONTROL PANEL CONTROL PANEL EXPLODED DRAWING EXPLODED DRAWING 25 - 26 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Easy Fit Treadmill...
- Page 3 0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Easy Fit Treadmill...
- Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Easy Fit Treadmill...
- Page 5 Main Main Main Part Part Part Part Console Motor Motor cover Running belt Running deck Side rail Rear cover (left) & (right) Motor belt Front roller Rear roller VirtuFit Easy Fit Treadmill Treadmill Treadmill instruction instruction Treadmill Treadmill instruction instruction...
- Page 6 Horsepower 1.0 13Km/h Speed ASSEMBLY INSTRUCTIONS Hardware Hardware pack pack Hardware Hardware pack pack 1pcs Allen socket head full thread screw Allen wrench 4pcs M8*15 Allen C.K.S.half thread 2pcs screw M8*40*20 L Allen wrench 1pcs VirtuFit Easy Fit Treadmill...
- Page 7 Use the M8*15 bar, lift up the upright post slowly (as below) . And put screw M8X40 in the left and right side. Put screw M8x15 to the rear side. Tight the screw well. VirtuFit Easy Fit Treadmill...
- Page 8 ASSEMBLY INSTRUCTIONS omputer to utmost as below. Use the M8 STEP 2 • Lift up the computer to utmost as below. Use the M8*15 to fix the computer on the upright post . the screw well. VirtuFit Easy Fit Treadmill...
- Page 9 ASSEMBLY INSTRUCTIONS all the screw well. STEP 3 • Tighten all the screw well. VirtuFit Easy Fit Treadmill...
- Page 10 SAFETY KEY • Install the safety key in the console. When you start walking, attach the safety key to your clothing. Pull at one emergency on the key safety lanyard and the treadmill will stop immediately. VirtuFit Easy Fit Treadmill...
- Page 11 1. Place one hand on handle bar, use the other to push top of the running deck forward. 2. Press one foot on the middle section of the cylinder to dis-engage the locking mechanism. 3. Allow deck to begin slowly dropping before releasing hands. VirtuFit Easy Fit Treadmill...
- Page 12 The treadmill can be moved around in house safely in its fold-up position by using the transport wheels. Firmly hold onto handle bars with both hands, pull the treadmill towards you, then portable on wheels, drag or push slowly. VirtuFit Easy Fit Treadmill...
- Page 13 (B02) if the ground is uneven; Turn the foot pad (B02) to the left side by cross solid wrench (B08) will increase the height and turn to the right side will decrease the height. VirtuFit Easy Fit Treadmill...
- Page 14 HAND PULSE SENSORS Hand pulse sensors This VirtuFit fitness equipment is provided with hand pulse sensors for measuring the heart rate. The hand pulse sensors are located on the handlebars. The hand pulse sensors are only working if they are touched both at the same time for a couple of seconds.
- Page 15 Be sure to clean the exposed area of the belt and the foot rails of the treadmill on both sides. In addition, wear clean shoes to reduce the risk of contamination of the treadmill. Remove the hood at least once a year to vacuum underneath. For more information: www.virtufit.nl/service/faq/#toggle-id-1 VirtuFit Easy Fit Treadmill...
- Page 16 Avoid making the belt too tight as this may damage it. NOTE: Any repair must be done by a professional technician unless otherwise specified by the supplier or manufacturer. VirtuFit Easy Fit Treadmill...
- Page 17 Safety key fall off: Put well the safety key. • The electronic system problem: Ask for the after sale service. Key defected • Key is damaged: Change key. • Key can not work: Change key board and wire. Change pcb board. Change computer. VirtuFit Easy Fit Treadmill...
- Page 18 2. Change the console. 2. Console circuitry defected. CONSOLE 1. The screw on the pcb is loose. 1. Tight well the screw. SHORT OF 2. Console defected. 2. Change the console. DISPLAY VirtuFit Easy Fit Treadmill...
- Page 19 Display the calories numerical value ,the value when under the body fat test CALORIES program. Display the pulse numerical value when testing the heart rate. And display incline PULSE numerical value when press the quick incline key. VirtuFit Easy Fit Treadmill...
- Page 20 Decrease the speed when running. Decrease the parameter under the body ‘-’ fat testing. QUICK When the treadmill is running, select the quick speed key 2, 4, 5, 6, 7, 9,11, 13 you SPEED want by pressing the quick speed key. VirtuFit Easy Fit Treadmill...
- Page 21 A certain distance is covered. When the desired distance is selected, the window will flash. Press + to select the desired distance. The range is 1.0 - 99.0 KM. The default distance is set to 1.0 KM. VirtuFit Easy Fit Treadmill...
- Page 22 Displayed when the workout is complete, then the treadmill will advance to body fat function. Keep both hands on the sensors on the handle, hold for 8 seconds, after these 8 seconds the screen will show your BMI. VirtuFit Easy Fit Treadmill...
- Page 23 CONTROL PANEL VirtuFit Easy Fit Treadmill...
- Page 24 EXPLODED DRAWING EXPLODED EXPLODED EXPLODED EXPLODED DRAWING DRAWING DRAWING DRAWING VirtuFit Easy Fit Treadmill...
- Page 25 Handle pulse Allen C.K.S.thread screw M8×40×20 Power wire L-500 (red/black) Allen C.K.S. thread screw M8×15 Pcb of Safety key Philips C.K.S. thread screw M5×10 Speed sensor Square cushion Speed sensor bracket Allen C.K.S. thread screw M8~20 VirtuFit Easy Fit Treadmill...
- Page 26 Allen socket thread screw M8~15 Philips C.K.S. thread screw M4~6 Philips self-tapping screw ST3~10 Philips self-tapping screw ST4~50 Allen socket thread screw M8~15 Flat washer Φ4.5 × Φ12 × t1.0 Plastic flat Φ18 × Φ10.5 × t2.0 VirtuFit Easy Fit Treadmill...
- Page 27 The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Easy Fit Treadmill...
- Page 28 For questions or missing parts please contact your dealer.
