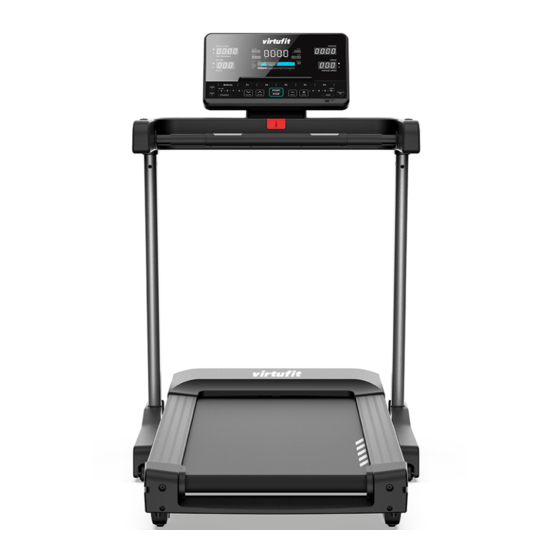

Elite Comfort Treadmill
User manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Comfort and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIRTUFIT Elite Comfort

Summary of Contents for VIRTUFIT Elite Comfort

  • Page 1 Elite Comfort Treadmill User manual...
  • Page 2 19 - 20 TROUBLE SHOOTING TROUBLE SHOOTING 21 - 32 CONTROL PANEL CONTROL PANEL APP INSTRUCTIONS APP INSTRUCTIONS 34 - 35 EXPLODED DRAWING EXPLODED DRAWING 36 - 38 PARTS LIST PARTS LIST TRAINING INSTRUCTIONS TRAINING INSTRUCTIONS VirtuFit Elite Comfort Treadmill...

  • Page 3: Safety Instructions

    0.5 metres of free space all around it. – Before using the device, check that the nuts and bolts are securely tightened. – The safety of the device can only be maintained if it is regularly examined for damage and/or wear and tear. VirtuFit Elite Comfort Treadmill...
  • Page 4 – Maintenance assembly and repair work not carried out by an official dealer. – In the event of improper use, neglect and / or poor maintenance. – Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Elite Comfort Treadmill...

  • Page 5: Assembly Tools

    TOOLKIT When you open the carton, and you will find the below parts in the carton. DESCRIPTION DESCRIPTION Mainframe Left bottom cover Display support frame Rightbottom cover Display Power wire Safety key MP3 wire ASSEMBLY TOOLS VirtuFit Elite Comfort Treadmill...
  • Page 6 In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Open the packaging and place the main frame (A) on the floor. NOTE: Do not remove the belt around the treadmill (P) until the treadmill is powered. VirtuFit Elite Comfort Treadmill...
  • Page 7 Lift the left and right uprights (T07, T08) upright in the direction of the arrow. • Use Allen key 5 (B10) and the M8 * 15 bolt (D11) and lock washer (D31). Assemble the left and right upright (A07, A08) to the main frame (A). VirtuFit Elite Comfort Treadmill...
  • Page 8 Connect the top wire of the display (E19) to the bottom wire (E20). • Use Allen key 5 (B10) and the M8 * 15 bolt (D11) and lock washer (D31). • Install console B in the left and right upright upright (A07, A08). VirtuFit Elite Comfort Treadmill...
  • Page 9 Attach the display C to console B. And connect wire 1 to wire 2. • Use Allen key (B09) and spring washer (D32) and lock washer (D35). Assemble display C. • Use a Phillips screwdriver (B08) and attach the protective cap (C10) to it display in console B. VirtuFit Elite Comfort Treadmill...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 5 • Cut the packing tape (P). VirtuFit Elite Comfort Treadmill...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP 6 • Using the hex key 5 (B10), loosen the M8 * 15 bolt to remove the f-module. VirtuFit Elite Comfort Treadmill...
  • Page 12 • After using the treadmill, turn off the power switch (on / off ). In addition, do not use the emergency stop unnecessary, only in an emergency. In this way, the circuit board is least loaded. VirtuFit Elite Comfort Treadmill...
  • Page 13 Install the safety key D in the console. • When you start walking, attach the safety key D to your clothes. Pull at one emergency on the key safety cord and the walking belt will stop immediately. VirtuFit Elite Comfort Treadmill...

  • Page 14: Folding Instructions

    Push the treadmill up until you hear a click from the gas spring. Note: Do not fold the treadmill while it is still in use. NOTE: Do not fold the treadmill while it is in use. VirtuFit Elite Comfort Treadmill...

  • Page 15: Moving The Treadmill

    (K). When the lowest point is reached with (K), the wheels of the treadmill can be used. To move the treadmill, hold the treadmill at position K and lift the treadmill so that it can roll on the ground with the wheels. VirtuFit Elite Comfort Treadmill...

  • Page 16: Leveling Adjustment

    (B02) if the ground is uneven; Turn the foot pad (B02) to the left side by cross solid wrench (B08) will increase the height and turn to the right side will decrease the height. VirtuFit Elite Comfort Treadmill...

  • Page 17: Daily Maintenance

    Cleaning: Wipe away the dust on the belt, running board and side footboard as excess dust may increase the frictional on the belt and cause damage to the machine. It is recommended to clean the machine once a month. VirtuFit Elite Comfort Treadmill...
  • Page 18 Avoid making the belt too tight as this may damage it. NOTE: Any repair must be done by a professional technician unless otherwise specified by the supplier or manufacturer. VirtuFit Elite Comfort Treadmill...

  • Page 19: Troubleshooting

    Adjust or lubricate the treadmill with a little oil. • Check the engine for a distinct odor or overload noise. If so replace than the engine. • Check the control board; replace it if necessary. VirtuFit Elite Comfort Treadmill...
  • Page 20 Check the wire from the control panel to the display, if the wire is broken, change it than for a new one. • Check the electronic parts of the display, replace for a new display like this is out of order. • A new control panel. VirtuFit Elite Comfort Treadmill...

  • Page 21: Control Panel

    5 seconds to calculate and display the runner’s heart PULSE beats per minute, the display range is 50-200 beats/min (This data is just for reference, and cannot be used as the medical data). SPEED Displaythe running speed. The speed range is 0.8—20km/h. VirtuFit Elite Comfort Treadmill...
  • Page 22 Display TIME, DISTANCE, SPEED,CALORIES and PULSE in turns with pressing SQUARE DISPLAY-ALT button. Display “FAT” in FAT mode. WINDOW HEART Display heart rate progress. Heart rate progress include Warm up, moderate, high RATE and maximum four stage. VirtuFit Elite Comfort Treadmill...
  • Page 23 0.1 sectionper time. When you press “-INCLINE+” key lasting for 0.5 sec the incline data will change continuously. INCLINE Incline quick buttons, press to choose incline section. 3 5 7 9 SPEED Speed quick buttons, press to choose speed. 4 6 8 10 VirtuFit Elite Comfort Treadmill...
  • Page 24 SPEED+” or “–INCLINE+” to set the target steps. Steps setting range is 100-999000. 6. Press “START” to exercise after setting the countdown data. During exercise you can press “-SPEED+”or “-INCLINE+” to adjust the speed or incline. Press “STOP” key to stop the treadmill. VirtuFit Elite Comfort Treadmill...
  • Page 25 Time interval for each section= setting time/16 SECTION PROGRAM SPEED (MANUAL) INCLINE SPEED (CLIBM) INCLINE SPEED (INTERVAL) INCLINE SPEED ( LOSE WEIGHT) INCLINE SPEED (WALK) INCLINE SPEED P5 （ RUN ） INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE VirtuFit Elite Comfort Treadmill...
  • Page 26 CONTROL PANEL SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE VirtuFit Elite Comfort Treadmill...
  • Page 27 Each program is divided into 16 time periods. When setting, the SPEED, INCLINE and TIME of the 16 time periods should be set before pressing “start” button to start the treadmill. HRC PROGRAMMA DEFAULT DEFAULT SEFAULT VirtuFit Elite Comfort Treadmill...
  • Page 28 All the setting data is for single use, when finish running, the date will swept off. 7. You can adjust the incline and speed during exercise by“-SPEED+” and “-INCLINE+”. But the system will change the speed and incline automatically according to the target heart rate. VirtuFit Elite Comfort Treadmill...
  • Page 29 9. The best body fat index is between 20 and 25. If the index less than 19 it means you are underweight; if the index between 26 and 29 it means you are overweight. If more than 30 it means you are too fat (the following data is only for reference,please don’t use as medical purpose). VirtuFit Elite Comfort Treadmill...
  • Page 30 4. Press “MODE” enter FA-3 to input height by “-SPEED+” (height range: 100 to 200 cm). 5. Press “MODE” enter FA-4 to input weight by “-SPEED+” (weight range: 20to 150KG). 6. Press “MODE” for three seconds to keep the data VirtuFit Elite Comfort Treadmill...
  • Page 31 HIGH -- High intensity, suitable for cardiovascular regulation 85% above the limit MAXIMUM ATTENTION: Your heart rate should not exceed 85% of your maximum heart rate and should not enter the maximum. If you do, please reduce your workout intensity. VirtuFit Elite Comfort Treadmill...

  • Page 32: Usb Charging

    3. If there is something wrong with the machine, please connect the retailer as soon as possible. It`s not allowed to repair the equipment by layperson. 4. You can pull off the plug from the socket anytime, and this will not do damage to the treadmill. VirtuFit Elite Comfort Treadmill...

  • Page 33: App Instructions

    ZWIFT APP STORE GOOGLE PLAY USER MANUAL ZWIFT ZWIFT ZWIFT FITSHOW APP STORE GOOGLE PLAY USER MANUAL FITSHOW FITSHOW FITSHOW VirtuFit Elite Comfort Treadmill...

  • Page 34: Exploded Drawing

    EXPLODED DRAWING VirtuFit Elite Comfort Treadmill...
  • Page 35 EXPLODED DRAWING VirtuFit Elite Comfort Treadmill...
  • Page 36 C37 Plain foot pad C07 Right bottom cover C38 Cylinder cushion pad C08 Console top cover C39 Adjustable foot pad C09 Console bottom cover C40 Safety key jack C10 Console rear cover C41 Safety key clip VirtuFit Elite Comfort Treadmill...
  • Page 37 D17 Bolt E06 Magnetic ring D18 Bolt E07 Magnetic core D19 Bolt E08 Power cable D20 Screw E09 AC single wire D21 Screw E10 AC single wire D22 Screw E11 AC single wire D23 Screw Earthed wire VirtuFit Elite Comfort Treadmill...
  • Page 38 E28 Speed shortcut middle wire E29 Speed shortcutbottom wire E30 Incline shortcut upper wire E31 Incline shortcut middle wire E32 Incline shortcut bottom wire E33 Magnet sensor E34 Speaker E35 MP3 connection wire E36 USB module USB connection wire VirtuFit Elite Comfort Treadmill...

  • Page 39: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Elite Comfort Treadmill...
  • Page 40 For questions or missing parts please contact your dealer.
