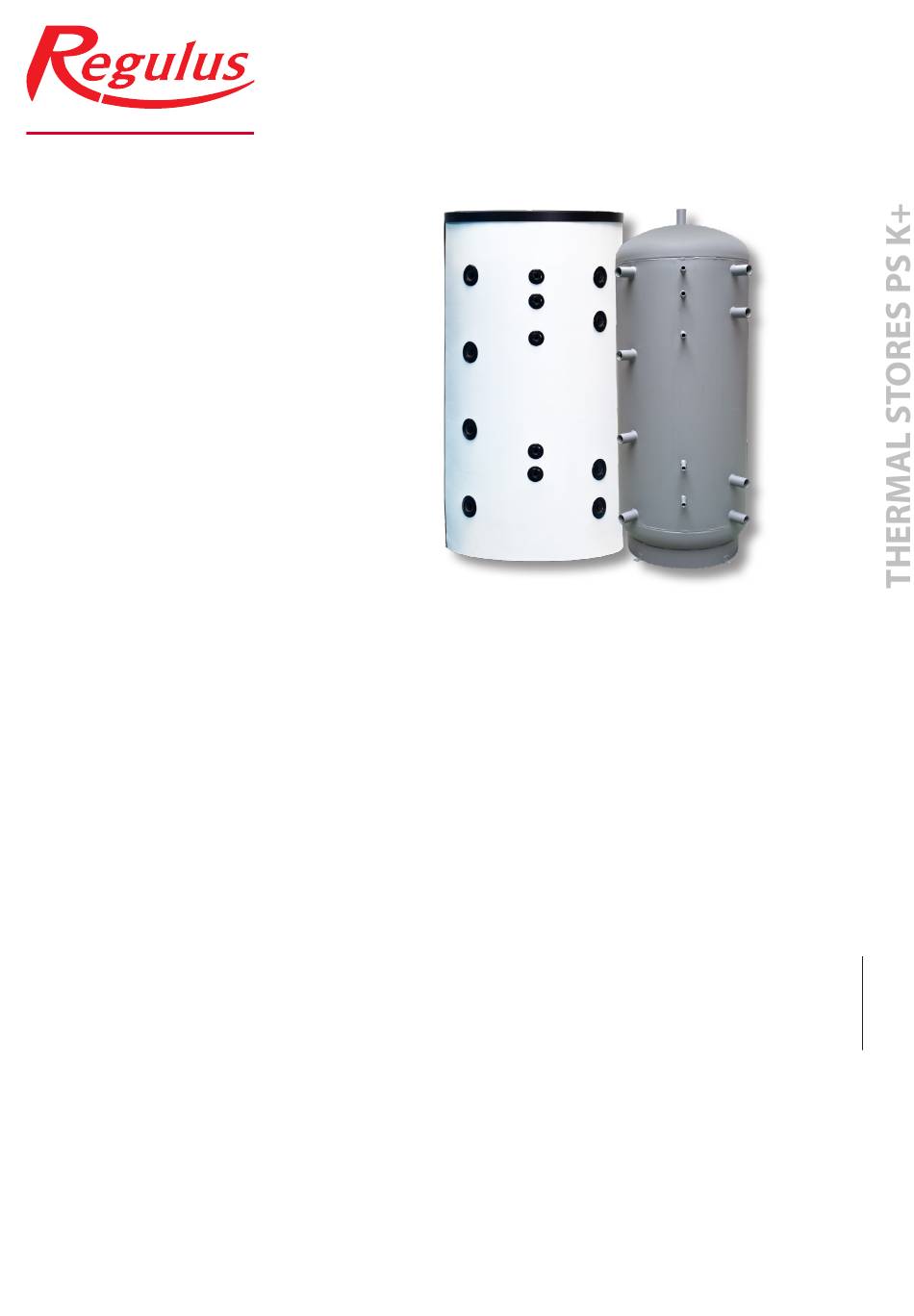

- Page 1 Installation and Operation Manual THERMAL STORES PS 400 K+, PS 500 K+, PS 600 K+, PS 700 K+, PS 900 K+ and PS 1100 K+ THERMAL STORES PS K+...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ..........................1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing............................... 2 General Information ............................3 Technical Data and Dimensions ........................4 Operation................................ 5 Examples of ports allocation ........................6 Installation and Commissioning ......................... -
Page 3: Description

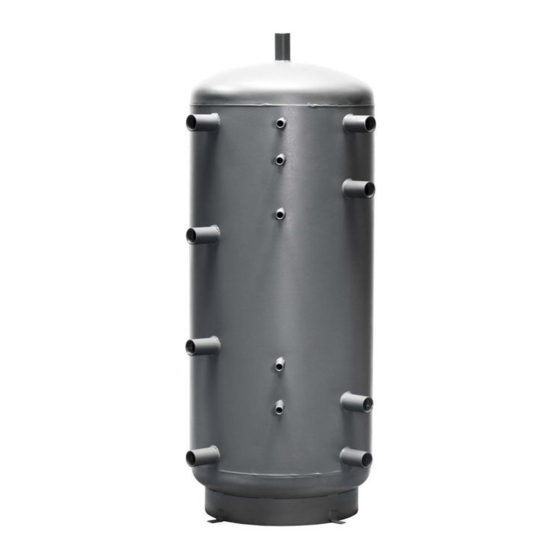

1 - Description PS K+ Thermal Stores are intended for storing and subsequent distribution of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric boilers etc. No heating coils can be installed into these tanks, just an el. heating rod. -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions 400 K+ 500 K+ 600 K+ 700 K+ 900 K+ 1100 K+ pos. connection height [mm] heat sources G6/4" F 1365 1375 1385 1395 1415 1435 G6/4" F heating system G6/4" F 1665 1685 1705 1725 1765... -
Page 5: Operation
4 - Operation In the thermal store, heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating elements. The thermal store shall be connected to a heat source through G 6/4” threaded fittings. Should the tank be connected to a solar system, this must be done via a heat exchanger because solar systems are not filled with heating water. - Page 6 Example II. Gas fired boiler and hydronic fireplace. boiler Example III. Heat pump and electric heating element. │...
-
Page 7: Installation And Commissioning
6 - Installation and Commissioning Installation shall meet valid rules and may be done by qualified staff only. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 8: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Instructions Product description Fleece thermal insulation with PU leather surface. Warning Insulation installation shall be done in two or three persons, depending on its size. The insulation must not be installed at temperatures below 20 °C. If this cannot be avoided, the insulation shall be pre-warmed in another room to at least 20 °C. - Page 9 Návod na instalaci měkké izolace s koženkovým povrchem 12/2015 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.cz | http://www.regulus.eu 143 00 Praha 4 E-mail: obchod@regulus.cz | E-mail: sales@regulus.eu ČESKÁ REPUBLIKA | CZECH REPUBLIC │...
-
Page 10: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packing shall be disposed of in compliance with the valid rules. - Page 11 │...
- Page 12 ©2019 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
