- Page 1 Installation and Operation Manual THERMAL STORES PS 100 IZ, PS 200 IZ PS 100 IZ, 200 IZ...
-
Page 2: Table Of Contents
CONTENTS 1 Description ............................1.1 Tank protection ........................1.2 Connection points on the tank ....................1.3 Packaging ..........................2 General Information .......................... 3 Technical Data and Dimensions ....................... 4 Operation ............................5 Example of Thermal Store Connections ..................6 Installation and Commissioning ...................... 6.1 Connection to sources of heat/cold.................. -
Page 3: Description

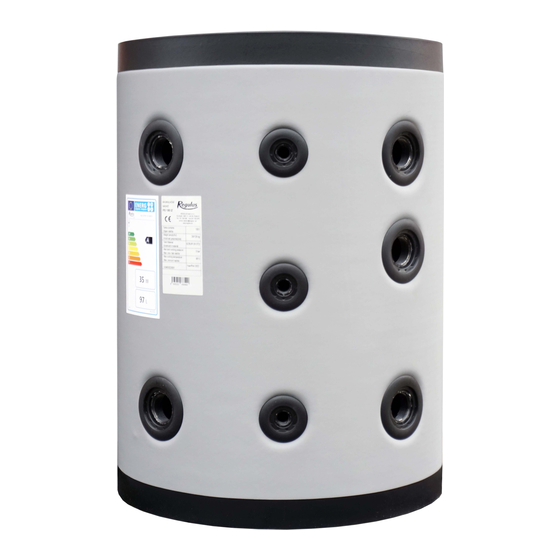

1 - Description These thermal stores are designed for storing and distribution of heat/cold. They are suitable as buffer tanks for inverter heat pumps to ensure sufficient water volume during evaporator defrosting. The tanks have four connections to connect sources of heat/cold and a heating/cooling system, two connections for universal inlets/ outlets, two connections for temperature sensors and one for a safety valve. -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions 3.1 - Regulus PS 100 IZ Technical Data Total tank volume 99 l Working temperature in tank 7–95 °C Max. pressure in tank 3 bar Tank diameter 450 mm Tank diameter with insulation 560 mm... - Page 5 3.2 - Regulus PS 200 IZ Technical Data Total tank volume 204 l Working temperature in tank 7–95 °C Max. pressure in tank 3 bar Tank diameter 450 mm Tank diameter with insulation 560 mm Tank overall height 1480 mm...
-
Page 6: Operation
4 - Operation The thermal store is suitable for storing and distribution of heat/cold and as a buffer tank for inverter heat pumps to ensure sufficient water volume during evaporator defrosting. 5 - Example of Thermal Store Connections 5.1 - With RegulusBOX │... - Page 7 5.2 - With el. heating elements │...
-
Page 8: Installation And Commissioning
It is recommended to add protective anti-corrosion fluid into the heating system. The respective item codes can be found in the Catalogue or at www.regulus.eu. 6.1 - Connection to sources of heat/cold Place the tank on the floor as close as possible to the source of heat /cold and level it.
