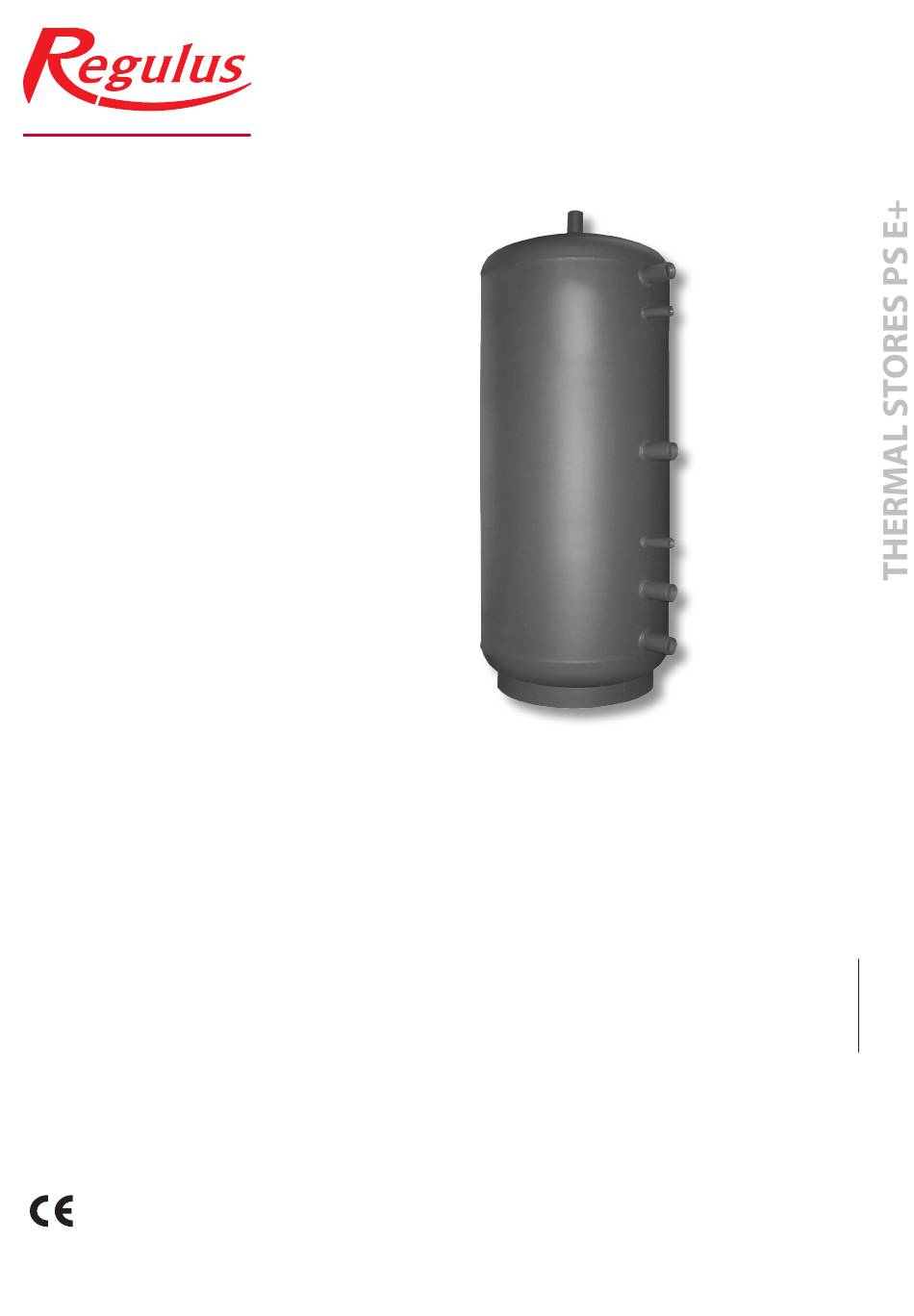

- Page 1 Installation and Operation Manual THERMAL STORES PS 500 E+, PS 750 E+, PS 1000 E+, PS 1100 E+ and PS 1250 E+ THERMAL STORES PS E+...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ..........................1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing............................... 2 General Information ............................3 Technical Data and Dimensions ........................4 Operation................................ 5 Typical Installation Examples ........................6 Installation and Commissioning ........................ -
Page 3: Description

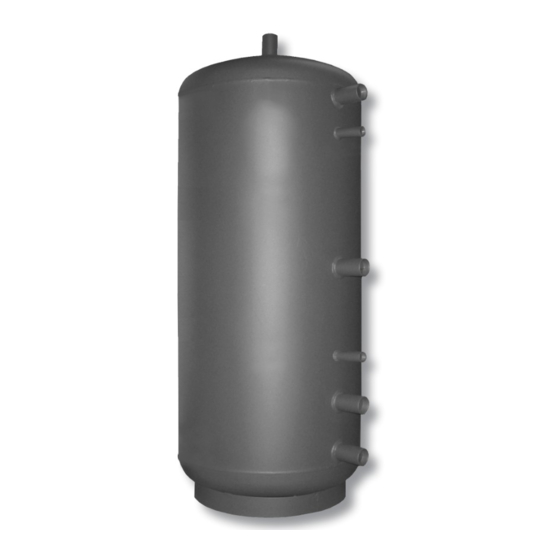

1 - Description PS E+ Accumulation Tanks are intended for accumulation and subsequent distribution of thermal energy from solid-fu- el fired boilers, heat pumps, solar collectors, electric boilers etc. No heating coils can be installed into these tanks, just an el. heating rod. Heating rods of 2-12 kW output can be installed directly into the 6/4” sleeves that are power supplied either with 230V or 3x230V/400V. -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions ØDe ØDi │... - Page 5 Code PS 500 E+ PS 750 E+ PS 1000 E+ PS 1100 E+ PS 1250 E+ Thermal Store Tank code 14 754 15 212 15 851 15 215 15 992 Insulation code (accessory) 16 330 16 338 16 344 16 347 16 351 Application Storing and subsequent distribution of heat from solid fuel boilers, heat pumps or other heat sources.
-
Page 6: Operation
4 - Operation In the accumulation tank heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating rods. The accumulation tank shall be connected to a heat source through G 6/4” threaded fittings. Should the tank be co- nnected to a solar system, this must be done via a heat exchanger because solar systems are not filled with heating water. -
Page 7: Installation And Commissioning
After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. MR-501/R or some other supplied by Regulus. Anti-corrosion protective liquid should be also used, e.g. MR-501/F or F1. -
Page 8: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Instructions Product description Fleece thermal insulation with PU leather surface. Warning Insulation installation shall be done in two or three persons, depending on its size. The zippered fleece insulation must not be installed at temperatures below 20°C. If this cannot be avoided, the insulation shall be pre-warmed in another room to at least 20°C. - Page 9 12/2015 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.cz | http://www.regulus.eu 143 00 Praha 4 E-mail: obchod@regulus.cz | E-mail: sales@regulus.eu ČESKÁ REPUBLIKA | CZECH REPUBLIC │...
-
Page 10: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packing shall be disposed of in compliance with the valid rules. - Page 12 ©2019 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
