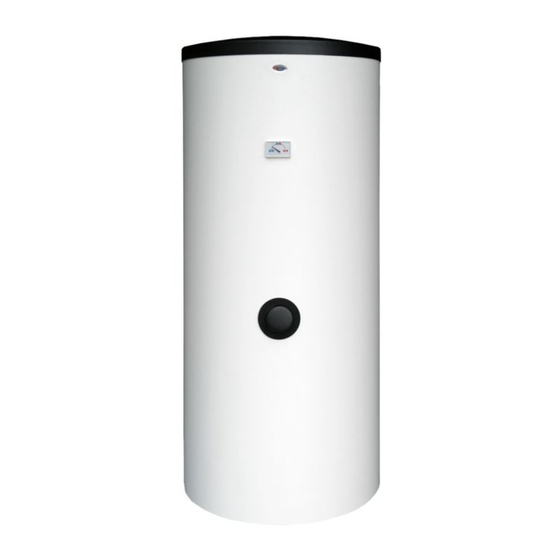

- Page 1 Installation and Operation Manual HOT WATER STORAGE TANKS RDC 160, RDC 200, RDC 250 and RDC 300 RDC 160 - 300...
-
Page 2: General Information
Tanks are supplied with a CFC-free hard polyurethane insulation 42 mm thick. (RDC 300 - 42 mm). The RDC 160, RDC 200 and RDC 250 models have a mantle of sheet metal, white painted. The RDC 300 tank has a surface of white PVC. Tanks are fitted with 3 height-adjustable legs enabling compensation of max. -
Page 3: Technical Data And Dimensions
Max. working pressure in HE 10 bar Tipping height 1230 mm Empty weight 70 kg Hot water heating from 10 °C to 45 °C at heating water inlet temp. 60 °C Heat exchanger 320 l/h (13 kW) REGULUS - RDC - www.regulus.eu │... - Page 4 Max. working pressure in HE 10 bar Tipping height 1500 mm Empty weight 97 kg Hot water heating from 10 °C to 45 °C at heating water inlet temp. 60 °C Heat exchanger 400 l/h (16 kW) REGULUS - RDC - www.regulus.eu │...
- Page 5 Max. working pressure in HE 10 bar Tipping height 1670 mm Empty weight 97 kg Hot water heating from 10 °C to 45 °C at heating water inlet temp. 60 °C Heat exchanger 590 l/h (24 kW) REGULUS - RDC - www.regulus.eu │...
- Page 6 Max. working pressure in HE 10 bar Tipping height 1890 mm Empty weight 114 kg Hot water heating from 10 °C to 45 °C at heating water inlet temp. 60 °C Heat exchanger 590 l/h (24 kW) REGULUS - RDC - www.regulus.eu │...
-
Page 7: Typical Installation Examples
DHW expansion vessel el. heating element cold water hot water hot water recirculation ball valve check valve automatic air vent valve pressure temperature relief valve REDV pressure reducing valve (optional) drain valve expansion vessel service valve REGULUS - RDC - www.regulus.eu │... -
Page 8: Installation And Commissioning
In order to prevent water loss, an expansion tank should be installed at the cold water inlet as well (8l volume for RDC 160, RDC 200 and RDC 250, 12l volume for RDC 300). Should the water be too hard, install a water softener before the tank. In case the water contains mechanical impurities, install a strainer. -
Page 9: Maintenance, Replacement Of Magnesium Anode Bar
This product is covered by warranty according to the conditions described in this Manual and according to the Warranty Certificate. A Warranty Certificate is an integral part of the supply. Tank transport or storing in a horizontal position is considered a warranty violation! REGULUS - RDC - www.regulus.eu │... - Page 12 - 10/2021 ©2021 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
