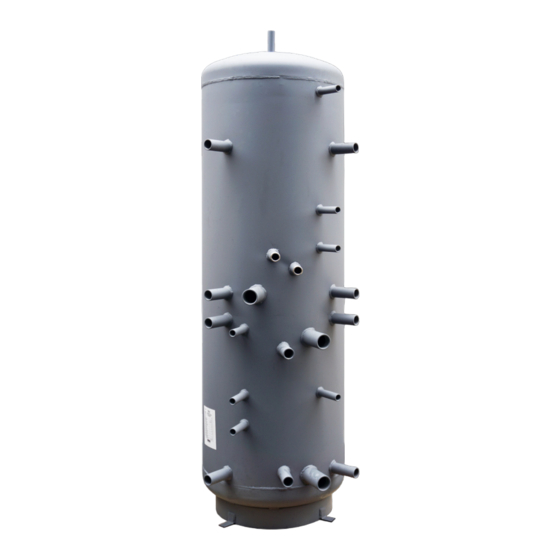

- Page 1 Installation and Operation Instructions THERMAL STORE with stainless-steel DHW tube heat exchanger HSK 400 PR+ HSK 400 PR+...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Packaging ............................2 General Information ............................3 Technical Data and Dimensions ........................4 Operation ................................ 5 Thermal Store Connection to a Heating System ..................6 Installation and Commissioning ........................ -
Page 3: Description
1 - Description HSK 400 PR+ Thermal Store is intended for storing and subsequent distribution of thermal energy of heating water. It is fitted with a stainless-steel tube DHW heat exchanger, permitting installation of electric heating elements and connection of other heat sources. For better thermal stratification of heating water, the tank is divided by a separating metal sheet. -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions main Features HSK 400 Pr+ Application Accumulation of thermal energy for space and DHW heating. Combination thermal store with DHW heating in an integrated stainless-steel heat exchanger, fitted with a tight separating metal Description plate that increases Seasonal coefficient of performance (SCOP) of a heat pump. -
Page 5: Operation
Dimensions CONNECTIONS Tipping height without insulation 1940 mm pos. description connection height [mm] Heat sources Incoming from heat source G 1“ 1780 Return to heat source G 1“ 1210 Incoming from heat source G 1“ 1420 Return to heat source G 1“... -
Page 6: Thermal Store Connection To A Heating System
5 - Thermal Store Connection to a Heating System Example I. Solar collectors + el. heating elements + solid fuel boiler + heat pump │... - Page 7 Example II. Solar collectors + gas-fired boiler + solid fuel boiler + heat pump │...
-
Page 8: Installation And Commissioning
6 - Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 9: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Product description Thermal insulation is a part of thermal stores, preventing heat loss. For easier handling, the insulation shall not be fitted on the tank until it reaches its definite place of installation. The thermal insulation is made of fleece, with a hard surface and a lock. - Page 10 │...
-
Page 11: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packaging shall be disposed of in compliance with the valid rules. - Page 12 ©2023 We reserve the right to errors, changes and improvements without prior notice.. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
