Summary of Contents for Regulus THERMAL STORE HSK 400 P+

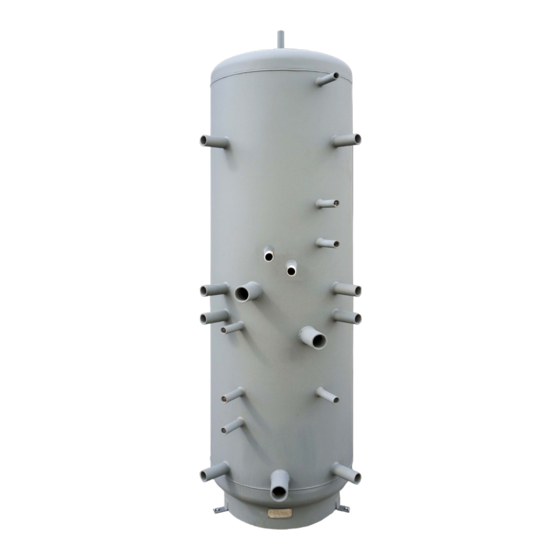

- Page 1 Installation and Operation Instructions THERMAL STORE with stainless-steel DHW tube heat exchanger HSK 400 P+ HSK 400 P+...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Packaging ............................2 General Information ............................3 Technical Data and Dimensions ........................4 Operation ................................ 5 Thermal Store Connection to a Heating System ..................6 Installation and Commissioning ........................ -
Page 3: Description
1 - Description HSK 400 P+ Thermal Stores are intended for storing and subsequent distribution of thermal energy of heating water. They are fitted with a stainless-steel tube DHW heat exchanger, permitting installation of electric heating elements and connection of other heat sources. For better thermal stratification of heating water, the tank is divided by a separating metal sheet. -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions Code HSK 400 P+ Thermal Store 19607 Insulation 19609 Energy Efficiency Data (as per EC Regulation No. 812/2013) HSK 400 P+ with insulation Energy efficiency class Standing loss 81 W Storage volume 408 l Technical Data Total tank volume 408 l... -
Page 5: Operation
Dimensions CONNECTIONS Tipping height without insulation 1905 mm pos. description connection height [mm] Heat sources Incoming from heat source G 1" 1780 Return to heat source G 1" 1210 Incoming from heat source G 1" 1420 Return to heat source G 1"... -
Page 6: Thermal Store Connection To A Heating System
5 - Thermal Store Connection to a Heating System Example I. Heat pump + el. heating element + fireplace + PV possible │... - Page 7 Example II. Heat pump + gas-fired boiler + fireplace + PV possible │...
-
Page 8: Installation And Commissioning
6 - Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 9: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Product description Thermal insulation is a part of thermal stores, preventing heat loss. For easier handling, the insulation shall not be fitted on the tank until it reaches its definite place of installation. Warning Insulation installation shall be done in two or three persons, depending on its size. - Page 10 │...
-
Page 11: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packaging shall be disposed of in compliance with the valid rules. - Page 12 ©2023 We reserve the right to errors, changes and improvements without prior notice.. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
