- Page 1 Installation and Operation Manual THERMAL STORES PS2F 300 N+, PS2F 500 N+, PS2F 800 N+, PS2F 1000 N+, PS2F 1500 N+ and PS2F 2000 N+ PS2F N+...
-
Page 2: Table Of Contents
CONTENTS 1 Description ..............................1.1 Models ..............................1.2 Tank protection ........................... 1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing ............................. 2 General Information ............................3 Technical Data and Dimensions ........................4 Operation ................................ 5 Examples of ports allocation ........................6 Installation and Commissioning ........................ -
Page 3: Description

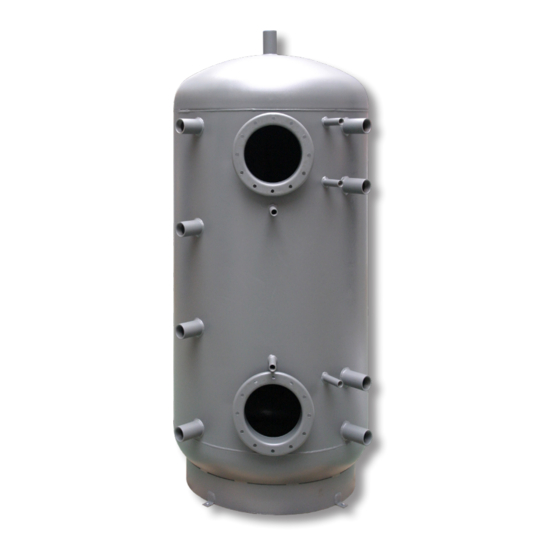

1 - Description PSWF N+ Thermal Stores are intended for storing and subsequent distribution of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric boilers etc. This thermal store shall be always connected to a sealed heating circuit. It is fitted with two flanges ready to receive suitably sized tube heat exchangers. Mating flanges for heat exchangers with either G 1”... -
Page 4: Technical Data And Dimensions
3 - Technical Data and Dimensions Dimensions ØD1 TAPPINGS pos. connection ØD Heat sources G 6/4" F G 6/4" F Heating system G 6/4" F G 6/4" F Control and safety G 1/2" F G 1/2" F G 1/2" F G 1/2"... -
Page 5: Operation
4 - Operation This thermal store is designed to accumulate heat and heat water for space heating in domestic or industrial applica- tions, however always in sealed pressure circuits with forced circulation. In the thermal store, heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating elements. - Page 6 Example II. Solar collectors and combi gas boiler. gas boiler with DHW tank Example III. Solar collectors, solid fuel boiler and el. heating elements. │...
-
Page 7: Installation And Commissioning
6 - Installation and Commissioning Installation shall meet valid rules and may be done by qualified staff only. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. -
Page 8: Installing Insulation On The Tank
7 - Installing Insulation on the Tank Instructions Product description Fleece thermal insulation with PU leather surface. Warning Insulation installation shall be done in two or three persons, depending on its size. The insulation must not be installed at temperatures below 20 °C. If this cannot be avoided, the insulation shall be pre-warmed in another room to at least 20 °C. - Page 9 Návod na instalaci měkké izolace s koženkovým povrchem Installation instructions for soft insulation with PU leather surface 12/2015 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.cz | http://www.regulus.eu 143 00 Praha 4 E-mail: obchod@regulus.cz | E-mail: sales@regulus.eu ČESKÁ REPUBLIKA | CZECH REPUBLIC │...
-
Page 10: Maintenance
8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packing shall be disposed of in compliance with the valid rules. - Page 11 │...
- Page 12 ©2019 We reserve the right to errors, changes and improvements without prior notice. REGULUS spol. s r.o. E-mail: sales@regulus.eu Web: www.regulus.eu...
