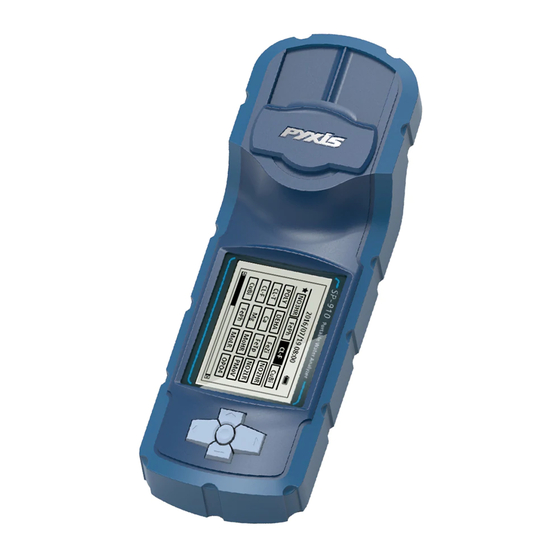

SP-910 Portable Water Analyzer
Operation Manual
Rev.B
© Pyxis Lab, Inc 2022
All Rights Reserved
Pyxis Lab, Inc
1729 Majestic Dr Suite 5
Lafayette, CO 80026 USA
www.pyxis-lab.com
service@pyxis-lab.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyxis SP-910

Summary of Contents for Pyxis SP-910

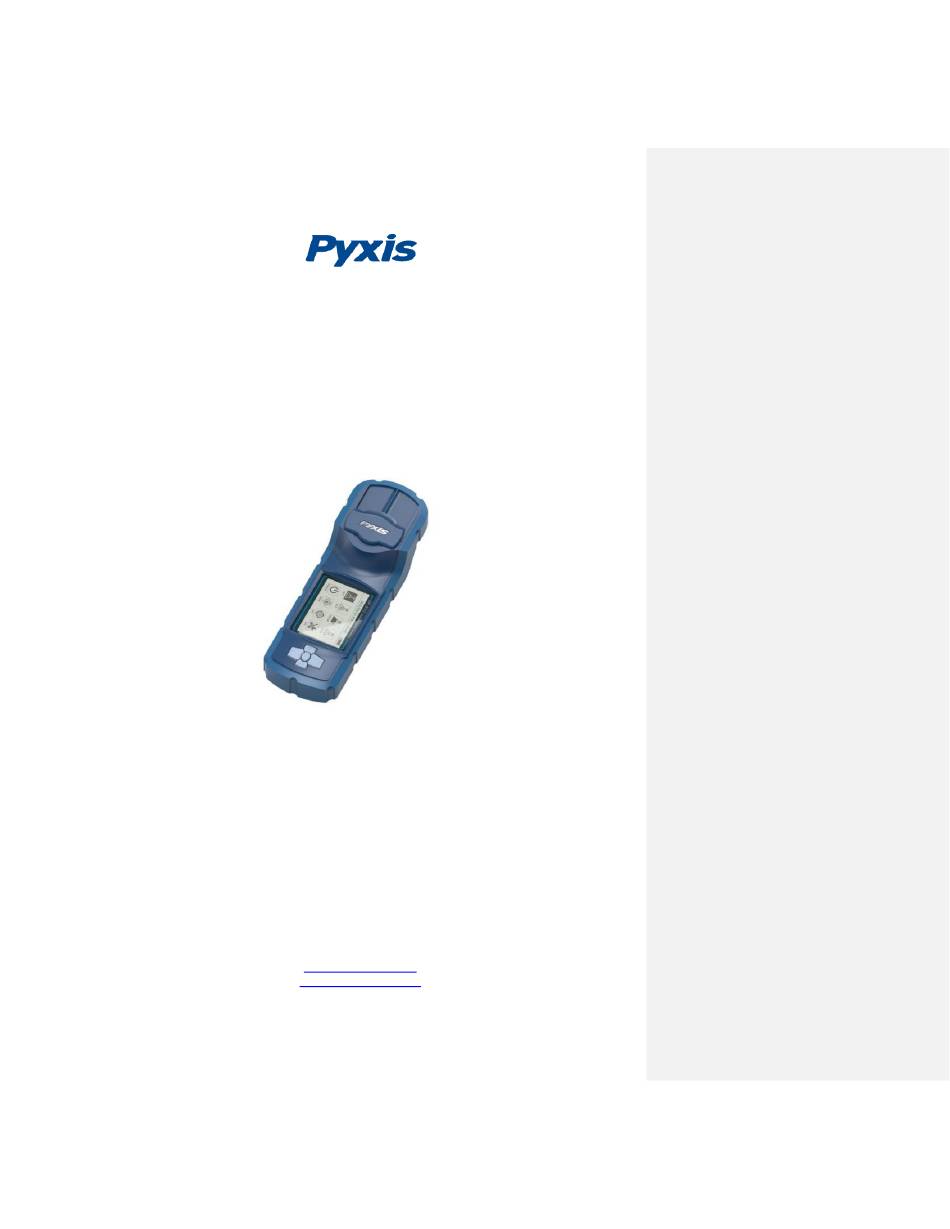

  • Page 1 SP-910 Portable Water Analyzer Operation Manual Rev.B © Pyxis Lab, Inc 2022 All Rights Reserved Pyxis Lab, Inc 1729 Majestic Dr Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com service@pyxis-lab.com...

  • Page 2: Table Of Contents

    2.2 Turning on the SP-910 ......................... 5 2.3 Main Page ............................6 2.4 Turning off the SP-910 ........................6 2.5 The SP-910 Auto Power off ......................... 6 2.6 Auto LCD Power Saving ........................7 3 PTSA Measurement ............................ 7 3.1 PTSA Measurement..........................7 3.2 PTSA calibration ..........................
  • Page 3 8.3.1 Upgrade Firmware ........................23 8.3.2 Setup Product..........................24 8.3.3 Add User Defined Colorimetric Methods ................... 25 8.3.4. Download Datalog ........................26 9 Calibrate a ST-500 with SP-910 ........................ 27 10 Maintenance ............................30 11 Troubleshooting ............................. 31 12 Appendix A............................. 32...
  • Page 4 A Repair Authorization Number (RA) must be obtained from the Technical Support (service@pyxis-lab.com) before any product can be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products to the customer. The customer shall pay freight charges for returning products to Pyxis. Any product returned to the...

  • Page 5: General Description

    1. Specifications are subject to change without notice with Pyxis’ continuous development. 2. The fluorescein range in earlier versions of the SP-910 may be only up to 20 ppb. To extend the upper limit to 600 ppb, please contact Pyxis customer support at service@pyxis-lab.com.

  • Page 6: Pyxis Major Features

    Main features include: ⚫ The SP-910 is pre-calibrated for measuring PTSA (pyrenetetrasulfonic acid) in the range of 0 to 300 ppb. The fluorescence PTSA measurement is automatically compensated for sample color and turbidity interference.

  • Page 7: Standard Accessories

    • 4 AA alkaline batteries • Commented [LR1]: 还有两个 25ml 的瓶子也是标配 MA-25 Instrument Manual, also available from www.pyxis-lab.com • COD 适配器也是标配 25 ml sample via (Part # MA-25) •25 ml sample via (Part # MA-25) •...
  • Page 8 Figure 2 Open and Close the Light Shield Cover Warning Magnetic sensitive devices, including but not limited to, credit cards, watches, hard disks, should be keep at a distance of at least 2 inches from the Light Shield Door to avoid possible damage and/or loss of information recorded.

  • Page 9: Start The Sp-910

    (NiCad) batteries or any AA-size lithium batteries. A set of batteries typically lasts for three months. When the batteries capacity is low, the SP-910 will prompt a LOW BATTERY warning. Replace all four batteries to resume operation of the SP-910 after the battery warning.

  • Page 10: Main Page

    System and diagnosis information, Bluetooth enabling 2.4 Turning off the SP-910 Turn the SP-910 off by navigating to Power icon and press the OK key. Alternatively, you can turn off the SP-910 by pressing OK key for 5 seconds in any menu.

  • Page 11: Auto Lcd Power Saving

    2. Place the sample vial into the sample vial compartment and slide the light shield cover to the closed position. 3. Press the M-P on the main page, The SP-910 will start to measure the PTSA concentration 4. The SP-910 will display the PTSA concentration in ppb as PTSA.

  • Page 12: Fluorescein Measurement

    2. Place the sample vial into the sample vial compartment and slide the light shield cover to the closed position. 3. Press the M-F on the main page, then press the OK button, The SP-910 will start to measure the fluorescein concentration in the sample.

  • Page 13: Fluorescein Calibration (Firmware Version Before V1.0R295)

    Figure 7. Fluorescein Measurement For best results, ensure that the sample vial is clean. Wipe off water on the outside wall of the sample vial using a lint-free tissue paper. Fill the sample vial to the 10 ml mark. If the sample contains air bubbles, tap the sample vial gently to remove the bubbles before placing the sample vial to sample vial compartm ent.

  • Page 14: Fluorescein Calibration (Firmware Version V1.0R295 And After)

    4.3 Fluorescein calibration (Firmware version v1.0r295 and after) Deionized water (DI) as the blank calibration solution, the 50 ppb fluorescein, the 250 ppb fluorescein and the 500 fluorescein calibration standard solutions are needed. 1. Press the CAL on the main page, then choose Fluorescein and press the OK key to launch the fluorescein calibration page.

  • Page 15: Colorimetric Measurement

    5 Colorimetric Measurement 5.1 Supported Methods A wide range of colorimetric methods is supported by the SP-910 analyzer and the number of them keeps increasing with continuous development of Pyxis. See corresponding Hach® methods in Appendix A. Table 2 List of Supported Colorimetric Methods...
  • Page 16 Abbreviated Method Name Description Range Method Name CODHR Oxygen Demand, Chemical (Reactor 1500 ppm Digestion 20 Minutes Method) , High range CODUH Oxygen Demand, Chemical (Reactor 15000 ppm Digestion 20 Minutes Method) ,Ultra-High Range CODUL Oxygen Demand, Chemical (Reactor 40 ppm Digestion 20 Minutes Method) ,Ultra-Low Range CLLR...
  • Page 17 Abbreviated Method Name Description Range Method Name H2O2 H2O2 Hydrogen peroxide,Iodimetry method 500 ppm H2O2L H2O2L Hydrogen peroxide, DPD method,Low Range 1.5 ppm Magnesium,Calmagite method 4 ppm as CaCO3 MnHR MnHigh Manganese,Periodate Oxidation method,High 20 ppm range MnLR MnLow Manganese,Periodate Oxidation method,Low 0.7 ppm range MoHR...

  • Page 18: Select A Method

    23 methods. Note: Methods shown in the method selection pages include Hach© equivalent methods and Pyxis specific advanced methods. The table in Appendix A provides a brief description of Pyxis method n ames...

  • Page 19: Single Timing Step Method

    Figure 13. Single Timer Method 5.4 Single-Vial Procedure 1. Place the sample vial filled with the water sample in the SP-910 sample vial compartment and Figure 13 press the ZERO button. The SP-910will display the page shown in 2.

  • Page 20: Multiple Timing Steps Method

    5.6 Multiple Timing Steps Method Some colorimetric methods have two or three timing steps. The SP-910 shows a count-down timer for the Figure 15 timing steps before the last timing step ( ).

  • Page 21: Advanced Methods

    Low range, direct reading chlorine dioxide, 0 to 35.0 ppm The maximum absorption bank of aqueous chlorine dioxide is around 360nm. The SP-910 has a 365nm UV LED and can be used to directly measure chlorine dioxide. It offers a much lower detection limit (0.2 ppm) than direct methods available from other portable colorimeters having only light sources in the visible range.

  • Page 22: Direct Reading Bleach Percent Method, 0 To 15

    Commented [LR3]: 目前有温度补偿关于漂水测试，要更新 这部分内容 The SP-910 has a 365nm UV LED and other deep blue LEDs that can be used to directly measure bleach concentration in the range of 0 to 15%. No reagent is required for the method and the displayed result is the sodium hypochlorite concentration in percentage.

  • Page 23: Slope Calibration

    The following steps are used to calibrate a method: Use a calibration standard of known concentration. Follow the steps required by the method and note the value reported by the SP-910. If the measured value differs from the known standard value, Press the CONFG button to launch the method configuration page.

  • Page 24: Resume To Default Calibration Parameters

    2. Insert the sample vial to the sample vial compartment. 3. Slide the light shield cover to the closed position. 4. Press the TURB on the main page, then press the OK key, The SP-910 will start to measure the turbidity in the sample.

  • Page 25: Absorbance Measurement

    10. Follow the message prompts, use the upper or down key to switch the standard between 100 NTU and 200 NTU. 11. Press the OK key to measure the selected standard. High range turbidity calibration is Figure 21 successful. ( 12.

  • Page 26: Bluetooth Interface

    Thus, for any colorimetric system, The SP-910 absorbance follows Lambert-Beer law. 8 Bluetooth Interface The SP-910 equipped with a Bluetooth interface, which allows a user to connect to SP-910 with a computer or a mobile device to do the following tasks: ⚫...

  • Page 27: Install Software

    Upgrade device firmware ⚫ Download saved datalog With the Bluetooth interface, the user can calibrate an inline fluorometer directly from SP-910 in the field. Below sections describe how to connect and communicate with your SP-910 via a computer and uPyxis apps.

  • Page 28: Setup Product

    8.3.2 Setup Product The SP-910 will display PTSA in ppb unit as the default in the PTSA measurement. A product name can be assigned to allow the SP-910 to display the product name instead of PTSA. The product/PTSA ratio can be set up according to Figure 25. For products containing 0.1% PTSA, the ratio is 1000, which means that 100 ppb PTSA equals to 100 ppm product.

  • Page 29: Add User Defined Colorimetric Methods

    Figure 25. Setup Product 8.3.3 Add User Defined Colorimetric Methods Click User Method tap and click Read from Device to read all current default or user defined methods into uPyxis. Select a method and clone a new method from the selected. The parameters in the method can be edited and are defined as: No.: a sequence number, the user does not need to enter Name: the method name...

  • Page 30: Download Datalog

    Click Datalog tap to open the datalog page. Click Read Datalog List to retrieve the datalog list from the SP-910 (Figure 28). Select a datalog entry from the list and then click Read Datalog to load the measurement values to uPyxis (Figure 29). The datalog can be saved as a CSV file.

  • Page 31: Calibrate A St-500 With Sp-910

    9 Calibrate a ST-500 with SP-910 The SP-910 can be used to verify the result of inline Pyxis ST-500 and other probes by measuring the sample water took from the inline probe sample line. The SP-910 can then be used to calibrate the inline...
  • Page 32 Once the connection is established, the SP-910 will read the latest reading from the connected ST-500 and display the reading as shown in Figure 32. Figure 32. Read Inline Device Use the SP-910 to measure the sample water by clicking Up key, as shown in Figure 33...
  • Page 33 Click OK key to send the calibration instruction to the ST-500 via Bluetooth connection. After that, the connected ST-500 will be calibrated to the value measured by the SP-910. The SP-910 will keep reading ST-500 every 4 seconds to verify if the calibration is successful. Please note that it takes about a minute for the ST-500 to approach to the calibrated reading.

  • Page 34: Maintenance

    Use a soft cloth or lint free paper tissue to clean the sample vial compartment periodically. Remove debris, scale, and deposit promptly. Although The SP-910 is protected from water damage, it is a good practice to avoid water entering the sample vial compartment and becoming trapping underneath the navigational control pad.

  • Page 35: Troubleshooting

    If an unspecific error occurs or the SP-910 cannot be turned on, reboot the instrument by taking a battery out of the battery holder and re-install the battery. If the SP-910 has been idle for more than two months and cannot be turned on, replace all four batteries with four new AA alkaline batteries.
  • Page 36 12 Appendix A. Pyxis Method and Hach® Method Number (PRMP) Cross Reference Abbreviated Hach Method Method Name Method Name Corresponding Hach © method Number Alumi Aluminon Method for Aluminum 8012 ALKLR Alkalinity Alkalinity, Total, Low Range ALKHR Alkalinity Alkalinity, Total, High Range...
  • Page 37 Abbreviated Hach Method Method Name Method Name Corresponding Hach © method Number CuBi Cu_Bicinch Copper, Bicinchoninate 8506 CuLR CuPorp Copper,Porphyrin method 8143 CYAN CYAN Turbidimetric method for cyanuric acid 8139 CYN-F Cyclohexylamine Cyclohexylamine,Fluorescent method DEHA, Iron Reduction Method for Oxygen DEHA DEHA Scavengers...
  • Page 38 Abbreviated Hach Method Method Name Method Name Corresponding Hach © method Number Chromotropic Acid Method Ozone ,DPD method Peroxyacetic , Iodimetry method Phosphorus, Reactive, Orthophosphate OPO4 OPO4 Ascorbic Acid 8048 OrgP Phosphonate Phosphonates, Persulfate UV Oxidation 8007 PAmi OPO4-Amino Phosphorus, Reactive, Amino Acid 8178 Phosphorus, Total (Test ‘N Tube Method) -LR P-TLR...
