Summary of Contents for Pyxis SP-395T

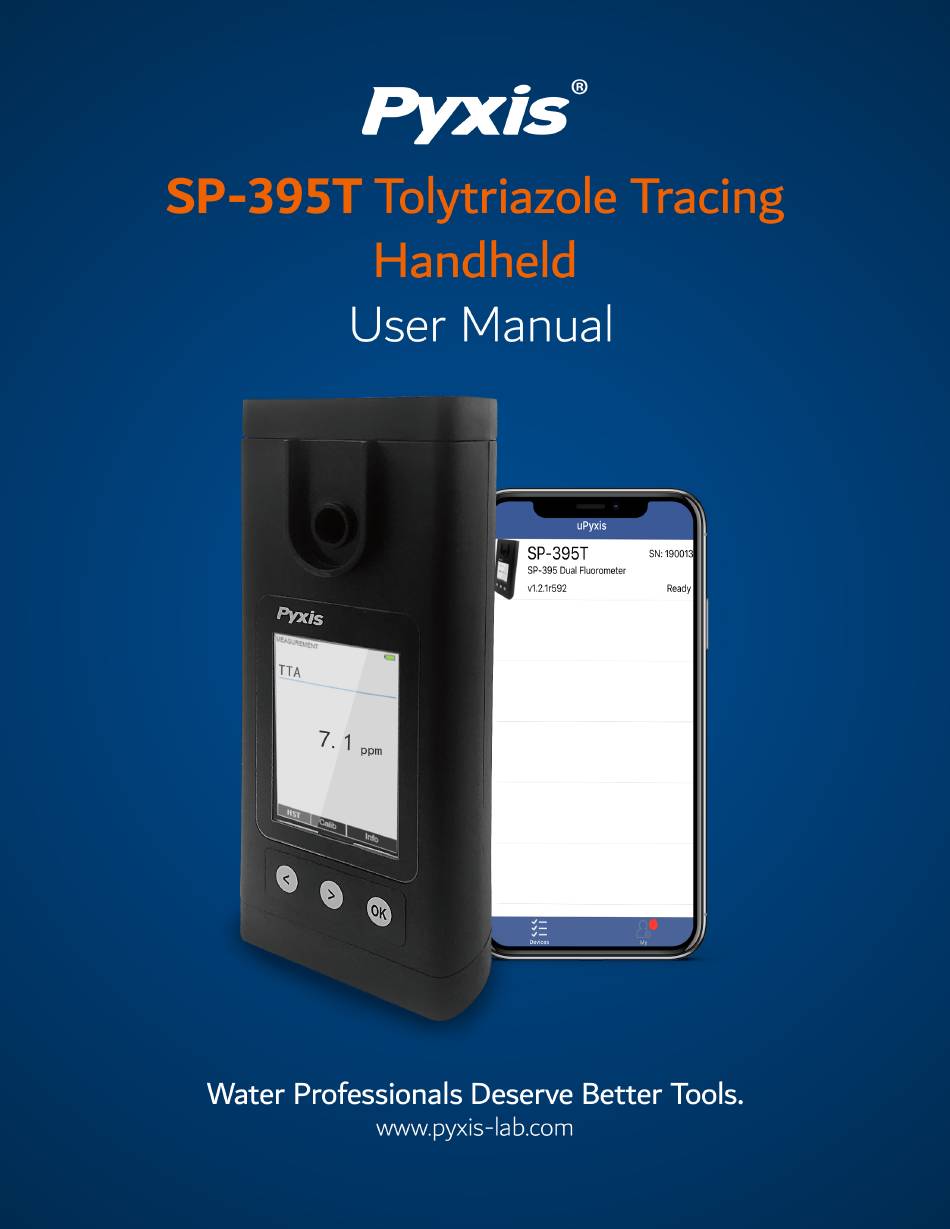

- Page 2 SP-395T TolyTriazole Tracing Handheld User Manual August 7, 2020 Rev. 1.40 Pyxis Lab, Inc. 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com © 2017 Pyxis Lab, Inc. Pyxis Lab Proprietary and Confidential...
-
Page 3: Table Of Contents
11.1 Maintenance Best Practices and Quick Tips ......11.2 Methods to Cleaning the SP-395T ...... - Page 4 Pyxis Lab, Inc. Standard Limited Warranty Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its option, repair or replace instrument components that prove to be defective with new or remanufactured components (i.e., equivalent to new).
-
Page 5: Introduction
1 Introduction The SP-395T handheld fluorometer is patented to Pyxis Lab Inc. and not offered anywhere else in the world. This device utilized UV light absorbance to detect TolyTriazole (TTA) content in water. The results are instantaneous and with proper application understanding, results are highly reliable. It is important to note that this technology is not wet chemistry testing for azole content and variations may be observed depending on the quality of the water sample. -
Page 6: Specifications
• 3 mL Transfer Pipet • User Manual available online at www.pyxis-lab.com/support.html 3.2 Optional Accessories The following optional accessories can be ordered from Pyxis Customer Service (order@pyxis-lab.com) or Pyxis eStore at https://pyxis-lab.com/shop/. Table 2. Accessory Name Pyxis Carrying Case for SP-395T 50725 Pyxis 1.0 ppm TTA Calibration Standard —... -
Page 7: Installation
The SP-395T battery compartment, shown in Figure 1, is on the back side of the instrument. Batteries are held in place by a cover secured with two Phillips-head screws. -

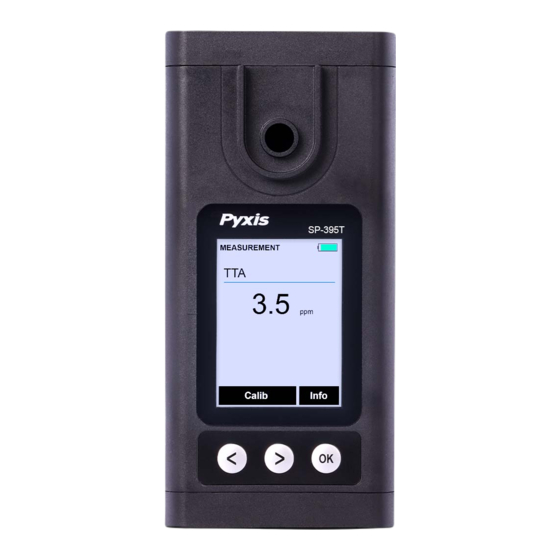

Page 8: Instrument Overview
5 Instrument Overview Figure 2. 5.1 Control Keys The SP-395T has three control keys, as shown in Figure 3. The left ( ), right ( ), and ok ( ) keys are used to launch actions indicated on the LCD display directly above the keys. The labels above the keys indicate the function associated with each key and functions can be changed in different operation modes. -
Page 9: Main Module On/Off
To turn off the SP-395T: Press and hold for about three seconds. Release when the LCD display turns off. The SP-395T turns itself off after 60 seconds without user interaction detected. This is done to conserve battery life. NOTE This auto-time off setting may be customized by the user as desired through the uPyxis®... -
Page 10: Calibration
7 Calibration TTA calibration for the SP-395T requires deionized (DI) water and a standard solution. TTA calibration uses either the 1 ppm or 2 ppm TTA standard solution (see the Optional Accessories section). 7.1 TTA Calibration 1. Rinse the sample cell three times with DI water. Fill the sample cell with DI water. -
Page 11: Device Information And Diagnosis
(Figure 8). The information has no use for normal operation, but instead is used for device troubleshooting. Provide an image of both the DEVICE INFORMATION screen and the SYSTEM DIAGNOSIS screen when you contact Pyxis (service@pyxis-lab.com) for troubleshooting your device or call +1 (866) 203-8397. Figure 7. -
Page 12: Sample Cell Cleanliness Check
The SP-395T is designed to provide reliable and accurate measurement on TTA. Heavy fouling will pre- vent the light from reaching the sensor, resulting in inaccurate readings. It is suggested that the SP-395T be checked for fouling and cleaned on a monthly basis. Heavily contaminated waters may require more frequent cleanings. -
Page 13: Bluetooth Connection To Devices
8.2 Bluetooth Connection to Devices The SP-395T uses a built-in Bluetooth Low Energy Connection (BTLE) to connect wirelessly to a smart phone via the uPyxis® Mobile App or to a computer via the included Bluetooth Adapter (P/N: MA-NEB) and the uPyxis®... -
Page 14: Use With Upyxis® Mobile App
Mobile App. Ensure that the SP-395T is discoverable by following the steps in the Bluetooth Connection to Devices section. Once the app is open, the app will start to search for the SP-395T. When the uPyxis® Mobile App connects to the SP-395T, then press on the SP-395T. -
Page 15: Setting Screen
When connected, the uPyxis® Mobile App will default to the Setting screen. From the Setting screen, the user can set the Power off time and Screen off time in seconds. Figure 16. SP-395T User Manual service@pyxis-lab.com | +1 (866) 203-8397... -
Page 16: System Screen
The firmware update process takes some time and will require the SP-395T to stay within range (approximately 10 ft without obstructions) for the entire duration of the update. Once the update is complete, the SP-395T will reboot which will disconnect the SP-395T from the uPyxis® Mobile App. Figure 17. -
Page 17: Use With Upyxis® Desktop App
10.2 Connecting to uPyxis® Desktop App Ensure that the SP-395T is discoverable by following the steps in the Bluetooth Connection to Devices section. Once the app is open, to find your device, click on Device, then Connect via Bluetooth.. -
Page 18: System Screen
The firmware update process takes some time and will require the SP-395T to stay within range (approximately 10 ft without obstructions) for the entire duration of the update. Once the update is complete, the SP-395T will reboot which will disconnect the SP-395T from the uPyxis® Mobile App. Figure 20. -
Page 19: Datalog Screen
10.4 Datalog Screen From the Datalog screen, the user can view, delete, and export the internal log files of the SP-395T by clicking Read Datalog List and selecting the desired datalog (these are separated by month). The SP-395T will then populate any relevant log event from the selected datalog which can be viewed in more detail by... -
Page 20: Device Maintenance And Precaution
11 Device Maintenance and Precaution 11.1 Maintenance Best Practices and Quick Tips For greatly increased working life and ease of use of the SP-395T follow the list of maintenance best practices and quick tips below: • Rinse the sample cell at least three times with the desired solution before turning on. -
Page 21: Storage
11.3 Storage Do not expose the SP-395T to an extreme high or low temperature condition such as leaving the SP-395T inside an unattended automobile. 12 Contact Us Pyxis Lab, Inc 1729 Majestic Dr. Suite 5 Lafayette, CO 80026 USA www.pyxis-lab.com...
